⚠️ ইম্পরট্যান্ট নোটঃ
এই প্যাকেজের সোলার প্যানেল আলাদা করে হাব ডেলিভারি হবে, বাকি প্রোডাক্ট গুলো হোম ডেলিভারি হবে। ট্রান্সপোর্টেশন বা ডেলিভারি জনিত কারনে প্যানেল ক্ষতিগ্রস্ত হলে এর দায় কুরিয়ার কোম্পানি নিবেনা। তবে ক্রেতাদের বিশ্বাস এবং বিগত দিনের অভিজ্ঞতা থেকে আমরা যথেষ্ট কনফিডেন্স তাই কোন প্যানেল ক্ষতিগ্রস্ত হলে তার ৮০% বিডিশপ বহন করবে এবং বাঁকি২০% কাস্টমার বহন করবে। ফুল পেমেন্ট করে অর্ডার করতে হবে।ডেলিভারি জেলা / উপজেলা পর্যায়ে পাঠানো হবে, হোম ডেলিভারি হবেনা।যে কুরিয়ার বা Transport মাধ্যমে পাঠানো হবে সেটি আগে থেকে জানানোর সুযোগ কম, তাই পাঠানোর পর জানানো হবে। কেননা একেক এরিয়াতে একেক কুরিয়ার এই প্রোডাক্টগুলি দ্রুত এবং কম খরচে ডেলিভারি করতে পারে।বড় প্যানেলের সাথে ডেলিভারির সময় কোন র্যাপিং বা বক্স থাকেনা এবং দেয়াও হবেনা। কারণ বক্স দিয়ে ঢেকে দিলে ডেলিভারির সময় এর উপর আরও অন্যান্য ভারী প্রোডাক্ট রাখে, কিন্তু ওপেন থাকলে গ্লাসের জিনিস দেখে এটা সযত্নে ডেলিভারি করার চেষ্টা করে।তারপরেও সাধারণত ঢাকা থেকে জেলা পর্যায়ে যেতে প্যানেল ক্ষতিগ্রস্ত হবার সম্ভাবনা খুবই কম। কিন্তু দেখা যায় সাধারণত ব্যাটারির রিক্সা বা ভ্যানে করে নেয়ার সময় প্রপার হ্যান্ডেলিং না করার কারণে সমস্যা হবার চান্স থাকে। তাই লাস্ট মাইল ডেলিভারিতে সচেতন থাকবেন। প্যানেল সুন্দরভাবে ডেলিভারি পেতে বেশী সংখ্যক প্যানেল একসাথে পিকআপে এবং নিজ দায়িত্বে ডেলিভারি নিতে পারেন — এটা বেস্ট অপশন, যদিও খরচ বেশী হবে।
সোলার প্যানেল অর্ডার এবং ডেলিভারি নেয়ার পূর্বে উপরোক্ত শর্তে রাজি থাকলে তবেই অর্ডার করার জন্য জানানো যাচ্ছে।
ধন্যবাদ!
- প্রোডাক্ট এর ওয়ারেন্টি: 5-Years (2 Years Parts + Service and next 3 years only Service Warranty)
কি কি লোড কতক্ষণ চলবে তার একটি সম্ভাব্য লিস্ট দেয়া হলো-
Complete 6KW Hybrid Solar Power Package | Deye 6KW Inverter with GearUP 16KWh Battery & Lesso 595W 4 pcs Panels (Solar Setup - 25)
কি কি থাকবে এই প্যাকেজে-
- 1x Deye 6KW Hybrid Inverter
- 1x GearUP 16KWh Battery LiFePO4 Battery
- Lesso 595W Solar Panels (4 pcs)

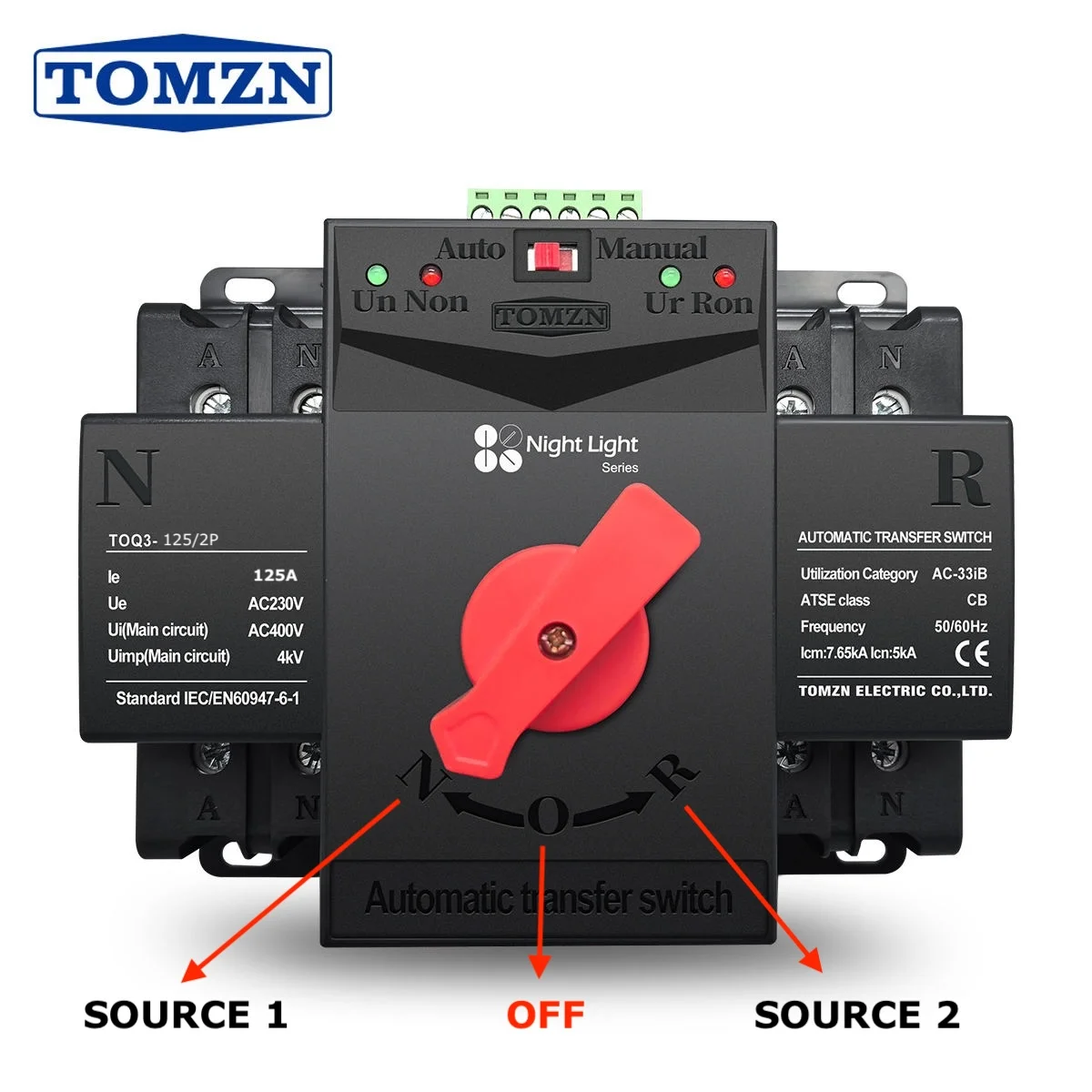

- 1x TOMZN ATS (Automatic Transfer Switch)
- 1x GearUP DC PV Combiner Box 12 Way

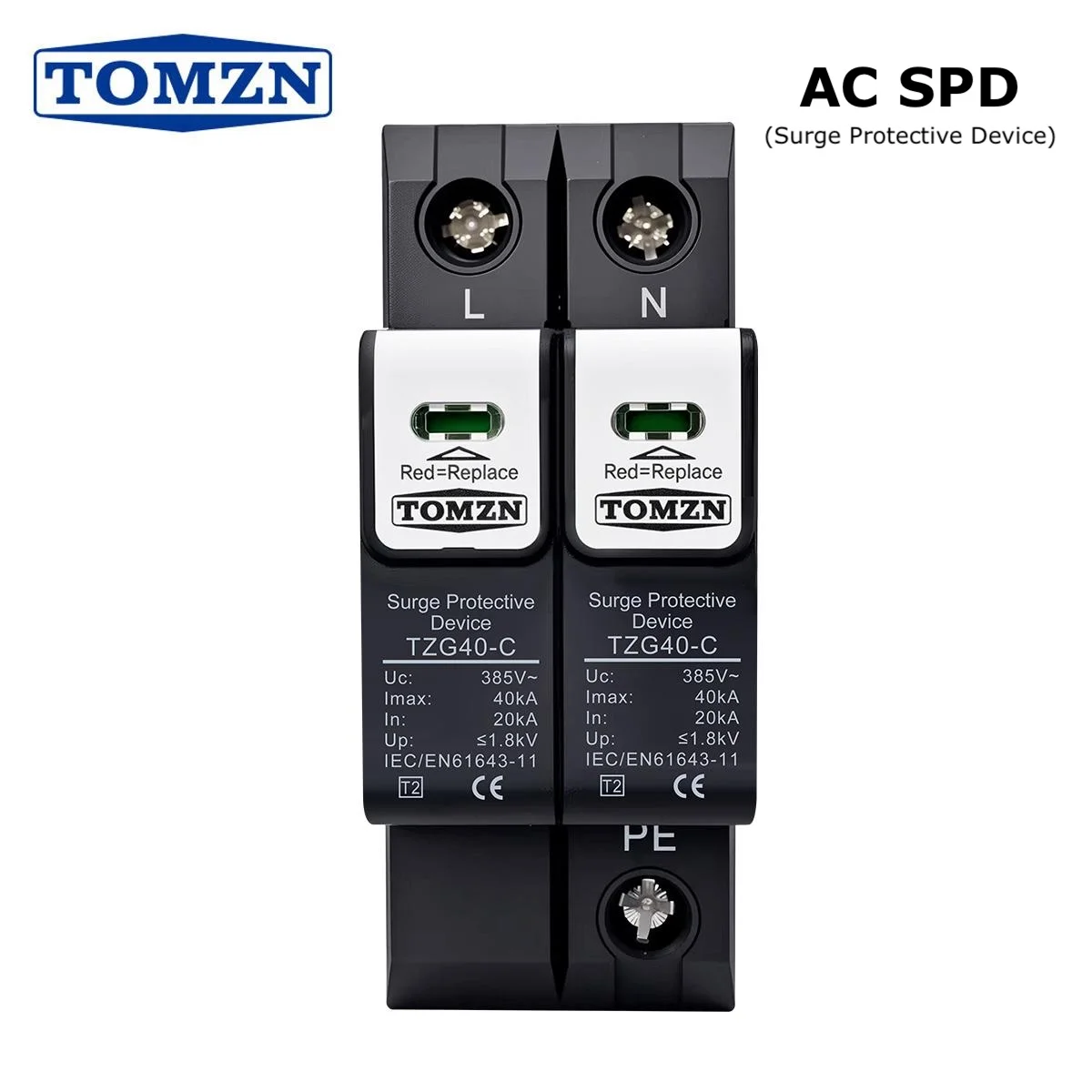

- 1x Tomzn AC SPD
- MC4 Connector (1 Set)
Key Features

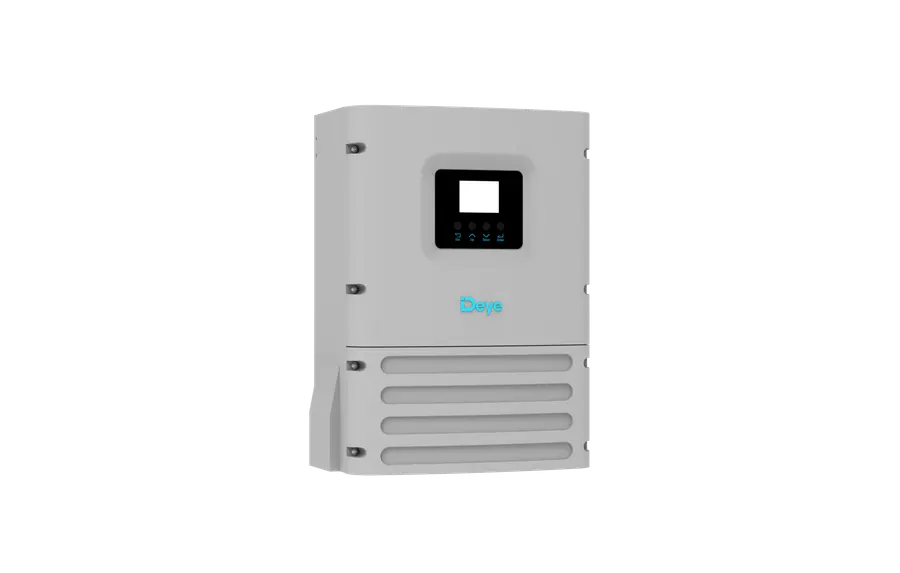

Deye 6KW Hybrid Inverter (Model: SUN-6K-SG04LP3-EU)
- High Efficiency & Reliability: Boasts a maximum efficiency of 97.6%, ensuring optimal energy conversion from your solar panels.
- Seamless Hybrid Functionality: Operates in grid-tied, off-grid, and hybrid modes, providing flexibility and continuous power supply. It intelligently manages power flow from solar, battery, and grid.
- Dual MPPT Trackers: Equipped with two Maximum Power Point Trackers (MPPTs) with a wide voltage range (150-425V), allowing for flexible panel configurations and maximizing energy harvest even under varying light conditions.
- Smart Battery Management: Compatible with 48V LiFePO4 batteries, offering advanced charging and discharging management to prolong battery life and optimize performance.
- Grid Export & Zero Export Function: Capable of feeding surplus energy back to the grid (if net metering is available) or limiting export to zero, complying with local regulations in Bangladesh.
- User-Friendly Monitoring: Integrated Wi-Fi module for remote monitoring via a smartphone app or web portal, allowing you to track energy production and consumption in real-time.
- Robust Protection Features: Includes over-voltage, over-current, short-circuit, and anti-islanding protection for safe and reliable operation.

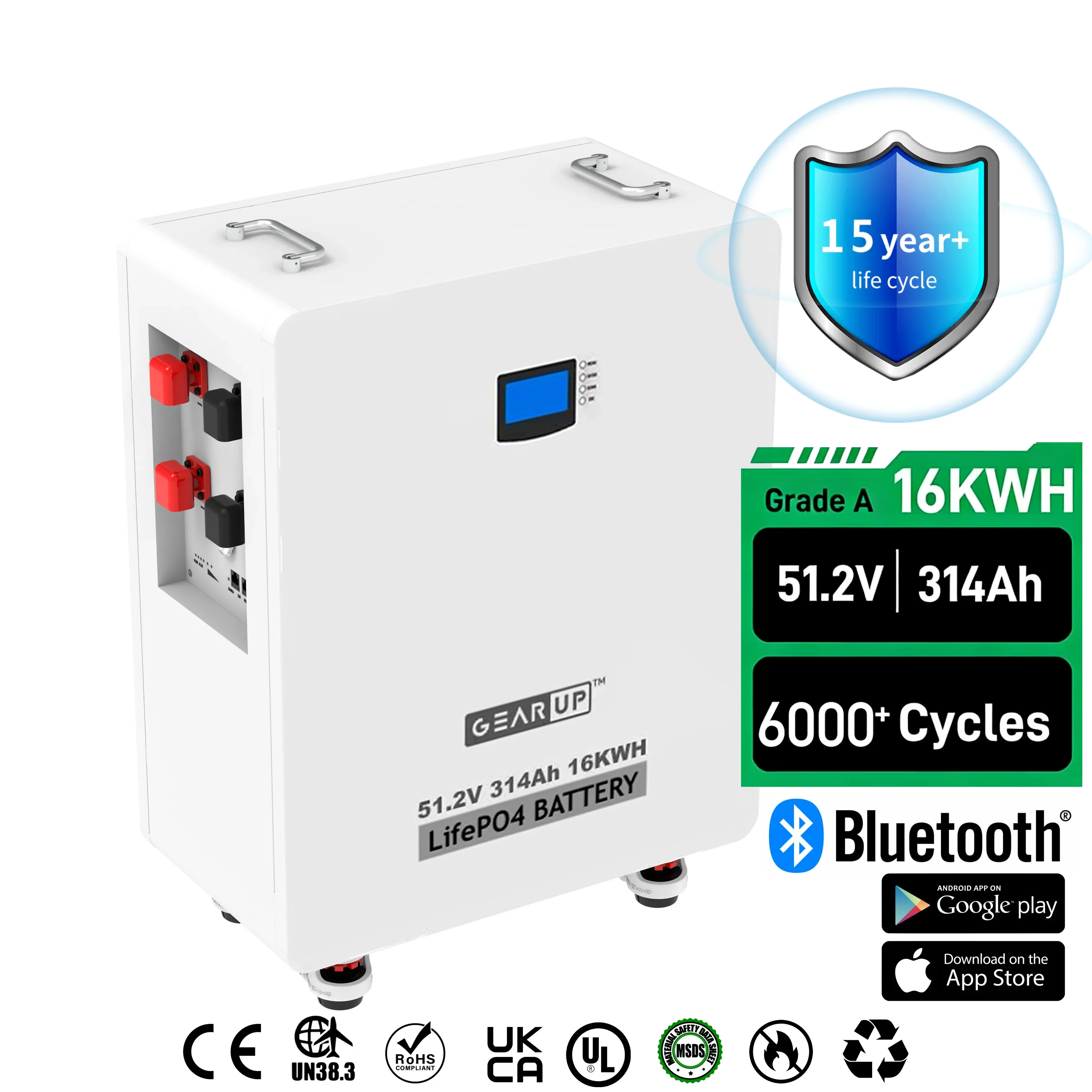

GearUP 16KWh LiFePO4 Battery System
- Massive Energy Storage: A substantial 16 kilowatt-hours (kWh) capacity ensures extended backup power during grid outages and allows for significant energy independence.
- Long Cycle Life: Utilizes advanced Lithium Iron Phosphate (LiFePO4) chemistry, offering an impressive cycle life of over 6,000 cycles at 80% Depth of Discharge (DoD), translating to over 15 years of reliable use.
- High Power Output: Designed to deliver continuous power required by the 6KW inverter, efficiently supporting peak loads.
- Superior Safety: LiFePO4 batteries are renowned for their enhanced safety, stability, and thermal resistance compared to other lithium-ion chemistries.
- Integrated BMS: Features a sophisticated Battery Management System (BMS) that monitors voltage, current, temperature, and state of charge, ensuring optimal performance and protection.
- Compact & Modular Design: While delivering high capacity, the system is designed for efficient space utilization, often modular for easier installation and future expansion.

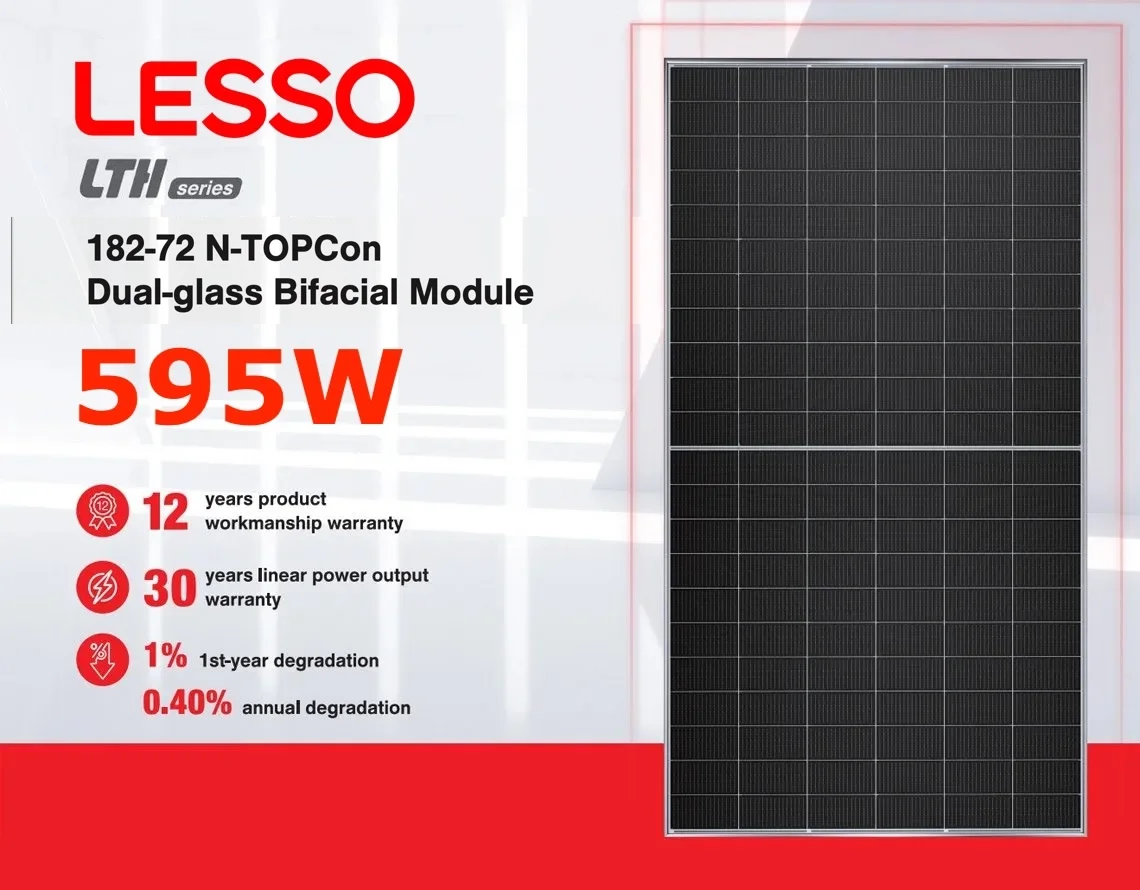

Lesso 595W Monocrystalline Solar Panels (4 pcs)
- High Power Output: Each Lesso 595W panel delivers exceptional power, providing a total of 2380W (2.38KWp) of solar generation with the included four panels. This setup is expandable to maximize the inverter's potential.
- Premium Monocrystalline PERC Technology: Utilizes advanced Monocrystalline PERC (Passivated Emitter Rear Cell) technology for superior efficiency, capturing more sunlight and converting it into electricity.
- Excellent Low-Light Performance: Designed to perform efficiently even in challenging conditions such as cloudy days or mornings/evenings, which is crucial for varying weather in Bangladesh.
- Durable & Weather-Resistant: Constructed with high-quality tempered glass, an anodized aluminum frame, and IP68 junction boxes, ensuring long-term durability and resistance to harsh weather conditions, including heavy rain and strong winds.
- Positive Power Tolerance: Guaranteed positive power tolerance (0~+5W), meaning each panel is guaranteed to meet or exceed its rated power output.
Why Choose This 6KW Hybrid Solar Package in Bangladesh?
This "Solar Setup - 25" is an ideal investment for anyone in Bangladesh looking to secure their energy future. The combination of a powerful Deye hybrid inverter, a robust GearUP LiFePO4 battery, and high-performance Lesso solar panels offers unmatched reliability and efficiency. Whether you're battling frequent load shedding, aiming to reduce your carbon footprint, or simply seeking lower electricity bills, this 6KW hybrid solar system provides a comprehensive solution. It's designed to adapt to the dynamic energy needs of Bangladeshi households and businesses, ensuring continuous power supply and significant savings.
Comprehensive Specifications Table
| Component |
Specification |
Value |
| Deye 6KW Hybrid Inverter (SUN-6K-SG04LP3-EU) |
| Max. DC Input Power |
PV Input Power |
9600W |
| Rated AC Output Power |
AC Power |
6000W |
| Max. AC Output Power |
AC Power |
12000W for 10s. |
| MPPT Operating Voltage Range |
Voltage Range |
150-425V |
| Number of MPPTs / Strings per MPPT |
Configuration |
2 / 1+1 |
| Battery Voltage Range |
Voltage Range |
40-60V |
| Max. Charge/Discharge Current |
Current |
135A |
| Max. Efficiency |
Efficiency |
97.6% |
| Dimensions (H x W x D) |
Physical Size |
422 x 355 x 117.5 mm |
| Weight |
Mass |
15 kg |
| Communication |
Interface |
CAN/RS485/WiFi/GPRS |
| GearUP 16KWh LiFePO4 Battery System |
| Nominal Energy Capacity |
Capacity |
16 kWh |
| Nominal Voltage |
Voltage |
51.2V |
| Usable Capacity |
Capacity |
~14.4 kWh (90% DoD) |
| Max. Continuous Charge/Discharge Current |
Current |
200A (300A for 3s.) |
| Cycle Life |
Lifespan |
>6000 cycles @ 80% DoD (25°C) |
| Chemistry |
Type |
Lithium Iron Phosphate (LiFePO4) |
| Protection |
BMS Features |
Over-charge/discharge, over-current, over-temp, short-circuit |
| Dimensions (approx. for a large single unit or combined modules) |
Physical Size |
600 x 480 x 250 mm |
| Weight (approx. for a large single unit or combined modules) |
Mass |
~Approx. 135 kg (Including Wooden Box) |
| Lesso 595W Monocrystalline Solar Panels (4 pcs) |
| Panel Type |
Technology |
Monocrystalline PERC |
| Maximum Power (Pmax) per panel |
Power Output |
595W |
| Total PV Array Power |
System Capacity |
2380W (2.38 KWp) |
| Module Efficiency |
Efficiency |
23.03% |
| Voltage at Pmax (Vmp) |
Voltage |
41.56V |
| Current at Pmax (Imp) |
Current |
14.32A |
| Open Circuit Voltage (Voc) |
Voltage |
49.52V |
| Short Circuit Current (Isc) |
Current |
15.25A |
| Dimensions per panel (L x W x D) |
Physical Size |
2278 x 1134 x 35 mm |
| Weight per panel |
Mass |
31.8 kg |
| Power Tolerance |
Tolerance |
0 ~ +5W |
| Junction Box |
Protection |
IP68 rated |
Benefits of a Hybrid Solar System
- Energy Independence: Drastically reduce your reliance on the national grid, especially during peak hours and load shedding periods common in Bangladesh.
- Reduced Electricity Bills: Generate your own electricity and store it, minimizing your monthly utility expenses. The return on investment for solar in Bangladesh is increasingly attractive.
- Uninterrupted Power Supply: The 16KWh GearUP battery ensures continuous power during outages, keeping your essential appliances running smoothly.
- Environmental Impact: Contribute to a greener Bangladesh by utilizing clean, renewable solar energy, reducing your carbon footprint.
- Grid Interaction: The Deye hybrid inverter intelligently manages power flow, utilizing solar first, then battery, and finally the grid, ensuring optimal efficiency.
- Future-Proof Investment: With rising electricity costs, investing in solar power is a smart long-term decision for your property in Bangladesh.
- Expandability: While this package includes 2.38KWp of panels, the Deye 6KW inverter can support up to 7.8KWp of solar input, allowing for easy future expansion of your solar array as your needs grow.
Ideal Usage Scenarios
This 6KW Hybrid Solar Power Package is perfectly suited for:
- Medium to Large Homes: Powering household appliances, air conditioners, water pumps, and lighting with ease.
- Small to Medium Businesses: Providing reliable power for offices, clinics, shops, and workshops, ensuring business continuity.
- Rural Areas: Offering a stable and independent power source where grid infrastructure might be unreliable or non-existent in Bangladesh.
- Holiday Homes/Resorts: Ensuring comfort and convenience even in remote locations.
Availability and Price in Bangladesh
The Complete 6KW Hybrid Solar Power Package (Solar Setup - 25) is readily available for purchase across Bangladesh. We offer competitive pricing, striving to provide the best 6KW hybrid solar system price in Bangladesh. For a complete package including installation and necessary accessories (cables, mounting structures, protection devices), the estimated price for this setup is around ৳7,25,000 to ৳7,80,000, depending on specific installation requirements and location in Bangladesh. Please contact us directly for the most accurate and up-to-date pricing, special offers, and to find a dealer near you in Bangladesh. We provide comprehensive delivery and installation services across major cities and remote areas of Bangladesh.
Frequently Asked Questions (FAQs)
Q: What is a hybrid solar system?
A: A hybrid solar system combines the benefits of both grid-tied and off-grid systems. It generates electricity from solar panels, stores excess energy in batteries, and can also draw power from or feed power back to the national grid.
Q: How long will the 16KWh battery power my home during an outage?
A: The duration depends on your energy consumption. A 16KWh battery can power essential appliances (lights, fans, refrigerator, TV) for 12-24 hours or more, depending on your load. For example, if your average consumption is 1KW, it could last approximately 16 hours.
Q: Can I expand the number of solar panels later?
A: Yes, absolutely! The Deye 6KW Hybrid Inverter is designed to handle up to 7.8KW of solar input. This initial package includes 2.38KWp (4 panels), leaving ample room for future expansion to maximize your energy generation.
Q: Is this system eligible for net metering in Bangladesh?
A: The Deye hybrid inverter supports grid export functionality, making it compatible with net metering policies if available in your area and if you have the necessary approvals from your utility provider in Bangladesh.
Q: What is the warranty for this solar package?
A: Typically, the Deye Inverter comes with a 5-year warranty, GearUP LiFePO4 Battery with a 10-year warranty, and Lesso Solar Panels with a 12-year product warranty and a 25-year linear power output warranty. Specific terms may vary, please confirm at the time of purchase.
Conclusion
The Complete 6KW Hybrid Solar Power Package (Solar Setup - 25) offers a robust, efficient, and reliable energy solution for your home or business in Bangladesh. Combining a high-performance Deye inverter, a long-lasting GearUP LiFePO4 battery, and powerful Lesso solar panels, this system ensures energy independence, significant cost savings, and a reduced environmental footprint. Invest in the future of energy today with this cutting-edge solar package, available now at the best prices in Bangladesh. Contact us to learn more or to get a personalized quote for your solar needs.
Note: সোলার স্ট্রাকচার এবং ক্যাবল এর সাইজ এবং দৈর্ঘ্য প্রোজেক্ট বাই প্রোজেক্ট আলাদা হয়ে থাকে তাই এই প্যাকেজের সাথে ক্যাবল এবং স্ট্রাকচার নেই, সেগুলি আপনার প্রয়োজন অনুসারে আমাদের থেকে আলাদা নিতে পারবেন।
