Automatic Infrared PIR Motion Sensor Switch for Light/Fan (110V~220V, AC)
SOLD OUT
Remote & Sensor Monitor

Automatic Infrared PIR Motion Sensor Switch for Light/Fan (110V~220V, AC)

Product ID: 106614
No reviews yet
৳800
SOLD OUT
SOLD OUT

Shipping Options

Office Pickup

Free

Pick up from our office

Inside Dhaka

৳50

1-3 business days

Outside Dhaka

৳100

2-5 business days

Automatic PIR Motion Sensor Switch in Bangladesh:  You can save up to 60% of electricity with this Infrared motion sensor

.

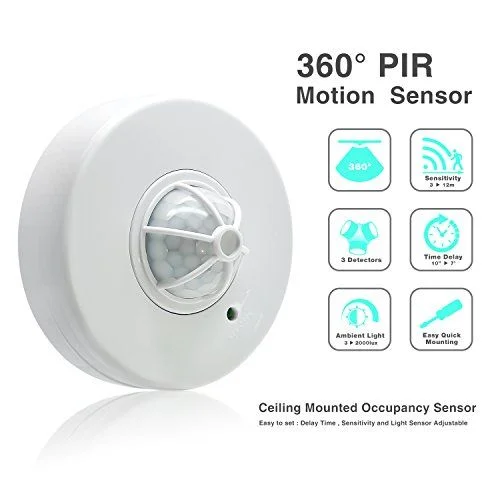

This is High Sensitivity 360 degree 110 V/220 V AC Automatic Ceiling Infrared PIR Motion Sensor LED Light Switch

.

This sensor is a motion switch that turns on the light on detection of people's movement and turns off after a pre-selected hold time when there are no people around. A daylight sensor is also a built-in tow switch off the light when there is sufficient natural light

.

Now this 360 degree 110 V~220 V AC Automatic Ceiling infrared Sensor is available in Bangladesh @ BDSHOP.COM

.

Specification:

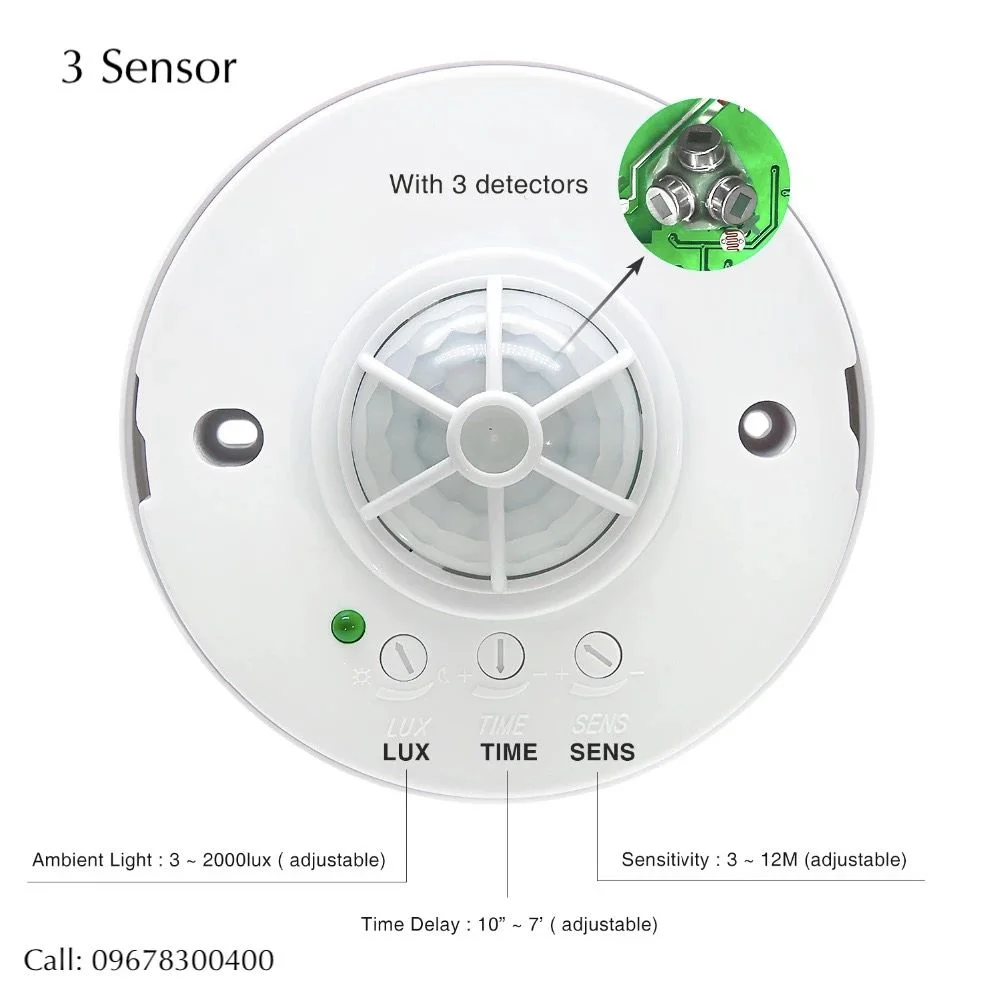

Features: PIR motion sensor switch Model Number: SP-S02 principle: PIR motion sensor Time Delay: 10 seconds to 7 minutes Ambient Light: 3-2000LUX (adjustable) Detection Distance: 6 m max (24 degrees) input voltage:110 -240 V/AC Rated Load::1200 W (incandescent lamp) 300 W (energy-saving) Switch Type: Sensor Switch Material: Plastic Power Frequency:50Hz Detection Range: 120/360 degrees

.

Key Feature:

Can identify day and night: The consumer can adjust work ambient light

.

It can work in the daytime and at night when it is adjusted to the "sun" position (max)

.

It can work in the ambient light of less than 3LUX when it is adjusted to the "moon" position (min)

.

As for the adjustment pattern, please refer to the testing pattern

.

Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basis of the first time-delay rest

.

Time-Delay is adjustable

.

It can be set according to the consumer's desire

.

The minimum time is 7sec±2sec

.

The maximum is 7 min±2 min

.

Testing the switch:

Turn the TIME knob to minimum (-) position anti-clockwise

.

Turn the LUX knob to the SUN position anti-clockwise

.

Switch on the power; the controlled load and indication lamp both are not working

.

Preheat 30 sec later, the load and indication lamp should be turned on synchronization

.

In the absence of no inductor signals, the load should be stopped working within 5-30sec, the indicator lamp is turned off

.

After the first sense is finished, and it will sense again after 5~10sec

.

The load should work

.

When there are no inductor signals in the indicator lamp, the load should be stopped working within 5-15sec

.

Turn the LUX knob clockwise on the minimum (MOON position)

.

If it is adjusted in less than 10LUX, the inductor load should not work after the load stop working

.

If you cover the detection window with the opaque objects (towel etc), the load work. under no induction signal condition, the load should stop working within 5-15sec

.

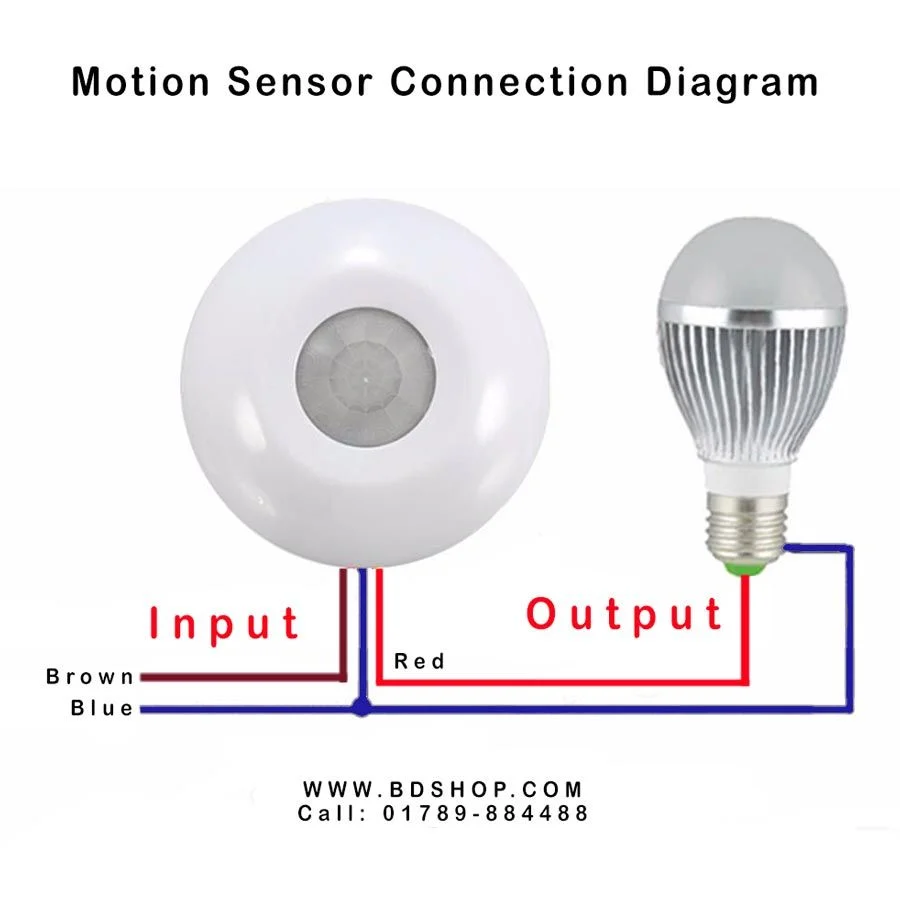

Note:When testing in daylight, please turn the LUX knob to (SUN) position, otherwise, the sensor lamp could not work.Package included:1*infrared motion sensor switch   Connection Diagram: Here is the basic & simple connection diagram of the Motion Sensor

.

You can easily connect the sensor to control light or Fan or other similar appliances.

Are you looking for an "Automatic Infrared PIR Motion Sensor Switch for Light/Fan"  Review & Specifications in Bangladesh with home delivery? Then BDSHOP.com is a great place to buy the "Automatic Infrared PIR Motion Sensor Switch for Light/Fan" in Dhaka, Chittagong, Sylhet, and all over Bangladesh and with Cash on Delivery

.

Online Shopping in Bangladesh for Genuine products, awesome customer support, easy returns, and really fast deliveries

.

Besides, there are a bunch of reasons why our customers keep coming back to our Online Shopping BD. **Join Our Official Facebook Group BD SHOP CLUB.

Disclaimer:
Product descriptions and technical specifications on this website may be generated with the assistance of AI and are provided for reference purposes only. Actual product features, performance, and specifications may vary — please verify all details directly with the official manufacturer's website before purchase. We do not manufacture; we are a seller and are not responsible for discrepancies in product features, behavior, or specifications.
