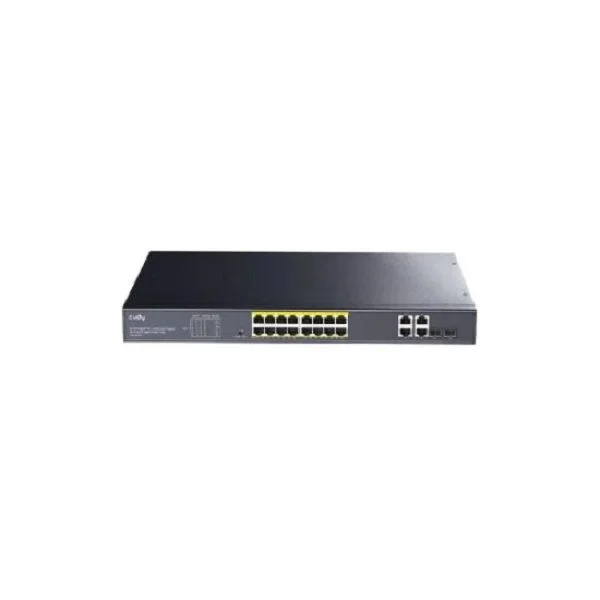

Cudy GS1020PS2 16-Port Gigabit PoE+ Switch with 2 Gigabit SFP Ports – Power Your Network with Efficiency in Bangladesh
Elevate your network infrastructure with the powerful and reliable Cudy GS1020PS2 16-Port Gigabit PoE+ Switch with 2 Gigabit SFP Ports. Designed to meet the demanding needs of modern businesses, surveillance systems, and advanced home networks in Bangladesh, this switch combines high-speed data transmission with flexible Power over Ethernet (PoE+) capabilities. Available now at an exceptional price of ৳15500.00 BDT, the Cudy GS1020PS2 offers an ideal solution for seamless connectivity and simplified power delivery.
Whether you're deploying IP cameras, wireless access points, VoIP phones, or other PoE-powered devices, the Cudy GS1020PS2 provides a robust and efficient platform. With 16 Gigabit PoE+ ports and two dedicated Gigabit SFP slots for fiber uplinks, it ensures your network is fast, scalable, and ready for future expansion. Discover the best Cudy GS1020PS2 price in Bangladesh exclusively at BDSHOP.COM, your trusted source for genuine networking products.
Unmatched Performance for Modern Networks
The Cudy GS1020PS2 is engineered for superior network performance. Each of its 16 RJ45 ports delivers full Gigabit (10/100/1000 Mbps) speeds, ensuring high-bandwidth applications like large file transfers, 4K video streaming, and real-time data processing run smoothly without bottlenecks. The substantial 40 Gbps switching capacity and 29.76 Mpps packet forwarding rate guarantee wire-speed data throughput across all connected devices, making it an excellent choice for demanding network environments in Bangladesh.
Beyond its impressive speed, the Cudy GS1020PS2 features PoE+ (802.3af/at) support on all 16 ports, offering up to 32W of power per port and a generous total PoE power budget of 250W. This means you can power multiple high-power devices directly through the Ethernet cable, eliminating the need for separate power outlets and simplifying installation. For extended network reach or connecting to a backbone, the two independent Gigabit SFP ports provide flexible fiber optic uplink options, crucial for larger campuses or inter-building connections.
Key Features at a Glance
- 16 Gigabit RJ45 Ports: All ports support 10/100/1000 Mbps auto-negotiation for maximum network speed.
- 16 PoE+ (802.3af/at) Ports: Delivers up to 32W per port, compatible with a wide range of powered devices.
- 2 Gigabit SFP Ports: Dedicated fiber optic uplink ports for long-distance connections or backbone integration.
- 250W Total PoE Power Budget: Ample power to support numerous high-power PoE devices simultaneously.
- 40 Gbps Switching Capacity: Ensures non-blocking, wire-speed performance across all ports.
- Plug & Play Operation: No configuration required, simply connect your devices and start using.
- Store-and-Forward Switching: Ensures error-free data transmission.
- 8K MAC Address Table: Efficiently manages network traffic for up to 8,000 devices.
- Jumbo Frame Support (9KB): Improves efficiency for large data transfers.
- Robust Metal Casing: Durable design suitable for rackmount installation (1U standard).
- Smart Cooling Fans: Equipped with 2 intelligent fans for optimal heat dissipation and stable operation.
- Surge Protection: Built-in 6KV surge protection on PoE ports safeguards your devices against power fluctuations.
Comprehensive Specifications
| Feature |
Specification |
| Model |
GS1020PS2 |
| Ports |
16 x 10/100/1000 Mbps RJ45 Ports (PoE+)
2 x 1000 Mbps SFP Ports |
| Network Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power Output (Per Port) |
55V DC, up to 32W (Max) |
| PoE Power Budget |
250W Total |
| PoE Pin Assignment |
Mode A: 1/2(+), 3/6(-) |
| Switching Capacity |
40 Gbps |
| Packet Forwarding Rate |
29.76 Mpps |
| MAC Address Table |
8K, Auto-learning, Auto-aging |
| Jumbo Frame |
9KB |
| Transfer Mode |
Store-and-Forward |
| Power Input |
AC: 100~240 V, 50/60Hz |
| Internal Power Supply |
280W |
| Fan Quantity |
2 Smart Cooling Fans |
| Dimensions (L*W*H) |
440 mm x 207 mm x 44 mm (1U Rackmount) |
| Weight |
3.5 kg (Approximate) |
| Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity |
10% ~ 90% non-condensing |
| Storage Humidity |
5% ~ 90% non-condensing |
| Certifications |
CE, FCC, RoHS |
Benefits of Choosing the Cudy GS1020PS2
- Cost-Effective Deployment: Power and data over a single Ethernet cable reduce cabling costs and installation time, especially beneficial for large deployments in offices or commercial spaces across Bangladesh.
- Enhanced Flexibility: Place PoE-powered devices like IP cameras or access points in optimal locations without being constrained by power outlet availability.
- Future-Proof Networking: Gigabit speeds and SFP uplinks provide a scalable solution that can adapt to growing network demands.
- Reliable Performance: Robust hardware, effective cooling, and advanced switching features ensure stable and uninterrupted network operation.
- Simplified Management: As an unmanaged switch, it offers plug-and-play simplicity, ideal for users who need a powerful network solution without complex configurations.
- Security and Stability: Built-in surge protection adds an extra layer of security for your valuable networking equipment.
Ideal Applications
The Cudy GS1020PS2 is versatile and perfectly suited for a variety of applications:

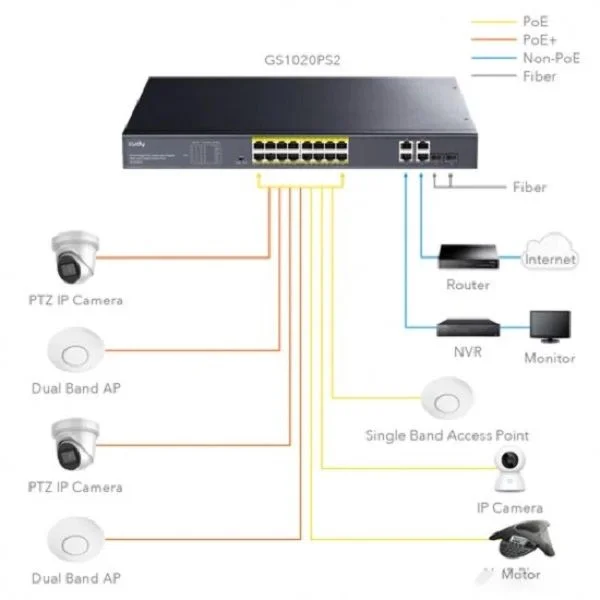

- IP Surveillance Systems: Power up to 16 high-resolution IP cameras with ease, making it perfect for businesses, warehouses, and large residential complexes.
- Enterprise Networks: Connect numerous VoIP phones, wireless access points, and other network devices in office environments.
- Smart Home/Building Automation: Integrate smart lighting, security sensors, and other IoT devices that require PoE.
- Educational Institutions: Provide reliable network and power for classroom access points and multimedia devices.
- Retail and Hospitality: Support POS systems, digital signage, and guest Wi-Fi networks efficiently.
Easy Setup and Reliable Operation
The Cudy GS1020PS2 is designed for hassle-free deployment. As an unmanaged switch, it requires no complex software configuration. Simply plug in your Ethernet cables and power adapter, and the switch will automatically detect and configure connected devices. Features like auto-negotiation and auto MDI/MDIX further simplify connectivity, ensuring a smooth plug-and-play experience right out of the box. Its robust metal casing and rack-mountable design ensure durability and easy integration into existing network racks, making it a reliable choice for long-term operation in any environment.
