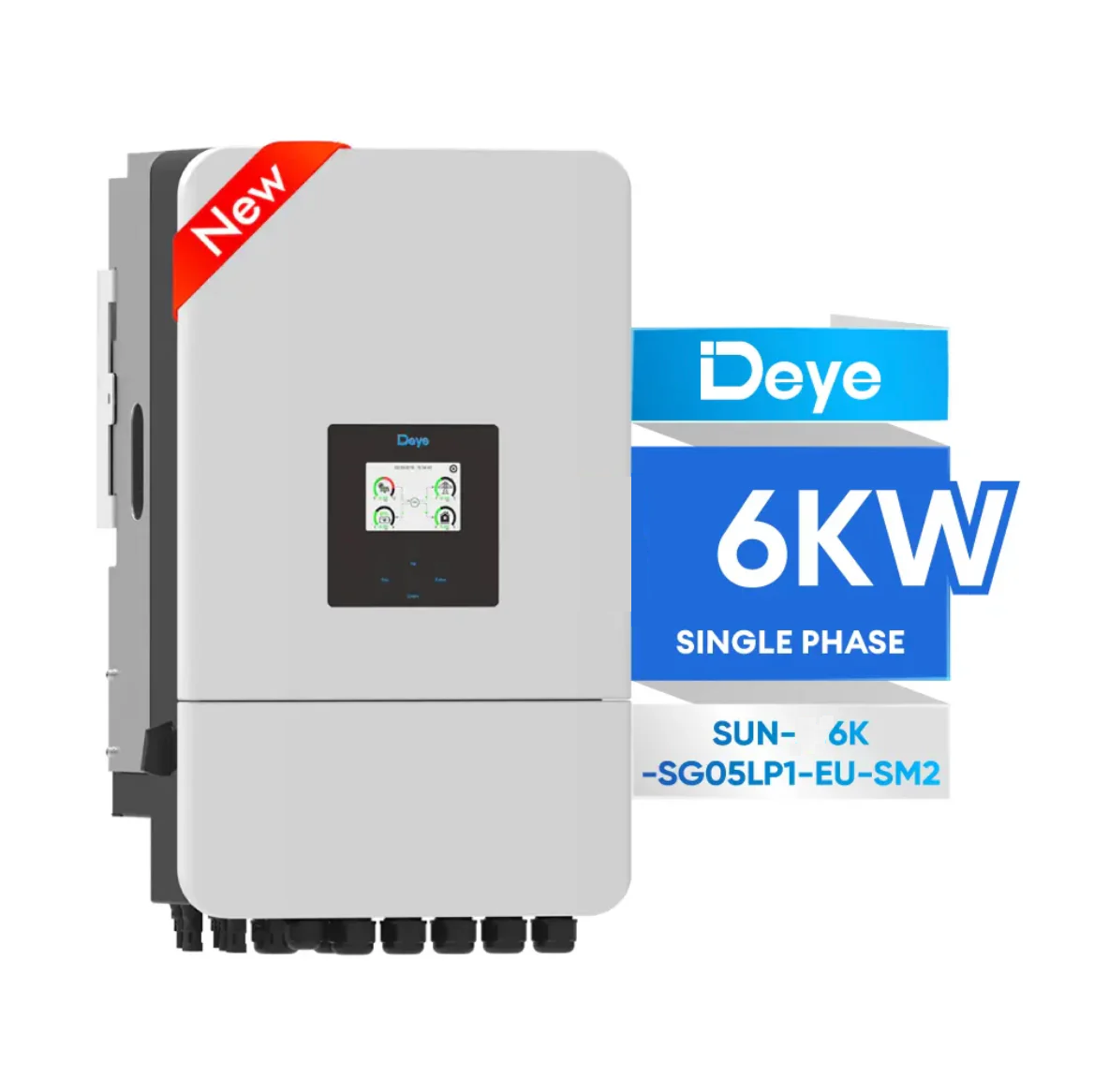

Deye 6KW Hybrid Solar Inverter, 2 MPPT, Single Phase 230V (SUN-6K-SG05LP1-EU-SM2)
1% OFF SOLD OUT
Solar Inverters by Deye

Deye 6KW Hybrid Solar Inverter, 2 MPPT, Single Phase 230V (SUN-6K-SG05LP1-EU-SM2)

Product ID: 18337
Brand: Deye
Warranty: 2 Years
No reviews yet
৳149,000 ৳150,000 Save ৳1,000
SOLD OUT
SOLD OUT

Shipping Options

Office Pickup

Free

Pick up from our office

Inside Dhaka

৳500

1-3 business days

Outside Dhaka

৳1,000

2-5 business days

হোম ডেলিভারীর ক্ষেত্রে অবশ্যই  ফুল পেমেন্ট করে অর্ডার করতে হবে অথবা ব্রাঞ্চ পিকাপ করতে হবে

Deye 6KW Hybrid Solar Inverter in Bangladesh

The Deye 6KW Hybrid Solar Inverter (SUN-6K-SG05LP1-EU-SM2) is gaining popularity in Bangladesh for its powerful performance, reliable backup support, and seamless integration with both grid and solar systems. As electricity demand and fuel prices continue to rise, this inverter offers an efficient solution for homeowners and businesses seeking energy independence.

Remotely shutdown function & Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

  • Colorful touch LCD, IP65 protection degree
  • AC couple to retrofifit existing solar system
  • Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
  • Max. charging/discharging current of 140A
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator

Here are the detailed specifications and features of the Deye 6KW Hybrid Solar Inverter Single Phase 230V (Model: SUN-6K-SG04LP1-EU-SM2):

 Product Name

Deye 6KW Hybrid Solar Inverter
Model: SUN-6K-SG05LP1-EU-SM2
Type: Single Phase, Low Voltage Hybrid Inverter
Nominal Output Voltage: 230V

 Key Features

  • True Hybrid Inverter: Supports both on-grid and off-grid applications.
  • Dual MPPT Design: Allows flexible PV array configurations.
  • Battery-Optional Mode: Can operate without a battery if required.
  • Time of Use (TOU): Programmable charging/discharging schedules to save electricity costs.
  • Remote Monitoring: WiFi/GPRS/4G compatible for app-based monitoring via Deye Cloud.
  • Load Prioritization: Allows priority for essential loads and solar power usage.
  • Parallel Operation: Up to 16 units can be paralleled in both on-grid and off-grid modes.
  • Built-in Anti-Islanding Protection
  • IP65 Protection: Suitable for indoor and outdoor installations.

 Applications

  • Residential solar energy systems
  • Small commercial setups
  • Backup power with battery storage
  • Smart energy management for grid-tied homes

 Why it’s Ideal for Bangladesh

  • Compatible with Palli Bidyut (PBS) solar programs
  • Efficient use during load shedding
  • Supports low voltage battery banks for affordability
  • Helps save on high electricity bills in urban and rural settings

 What’s in the Box

  • 1× Deye SUN-6K-SG05LP1-EU-SM2 Inverter
  • Installation accessories
  • User manual
  • WiFi dongle

Technical Specification:

Model SUN-3K-SG05LP1-24-EU-SM1 SUN-3K-SG05LP1-EU-SM1 SUN-3.6K-SG05LP1-EU-SM2 SUN-5K-SG05LP1-EU-SM2 SUN-6K-SG05LP1-EU-SM2
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 20-30 40-60
Max.Charging Current(A) 140 70 90 120 135
Max.Discharging Current(A) 140 70 90 120 135
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of battery input 1
PV String Input Data
Max. PV Access Power (W) 6000 6000 7200 10000 12000
Max PV Input Power（W） 4800 4800 5760 8000 9600
Max PV Input Voltage（V） 500
Start-up Voltage（V） 125
MPPT Voltage Range（V） 150-425
Rated PV Input Voltage(V) 370
Max Input Short-Circuit Current（A） 27 27+27
Max Operating PV Input Current（A） 18 18+18
No.of MPP Trackers/No.of String Per MPP Tracker 1/1 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power（W） 3000 3600 5000 6000
Max AC Input/Output Apparent Power （VA） 3300 3960 5500 6600
Peak Power (off-grid)（W） 2 times of rated power,10s
Rated AC Input/Output Current（A） 13.7/13.1 16.4/15.7 22.8/21.8 27.3/26.1
Max AC Input/Output Current（A） 15/14.4 18/17.3 25/24 30/28.7
Max Continuous AC Passthrough (grid to load)（A） 35 40
Rated Input/Output Voltage/Range(V) 220V/230 0.85Un-1.1Un
Grid Connection Form L+N+PE
Rated Input/Output Grid Frequency/Range 50Hz/45Hz-55Hz     60Hz/55Hz-65Hz
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%ln
Efficiency
Max Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency ＞99%

Deye 6KW Single Phase Hybrid Inverter Datasheet:

datasheet_sun-3-6k-sg04lp1-sm1_30240102201655_20250520_enDownload
