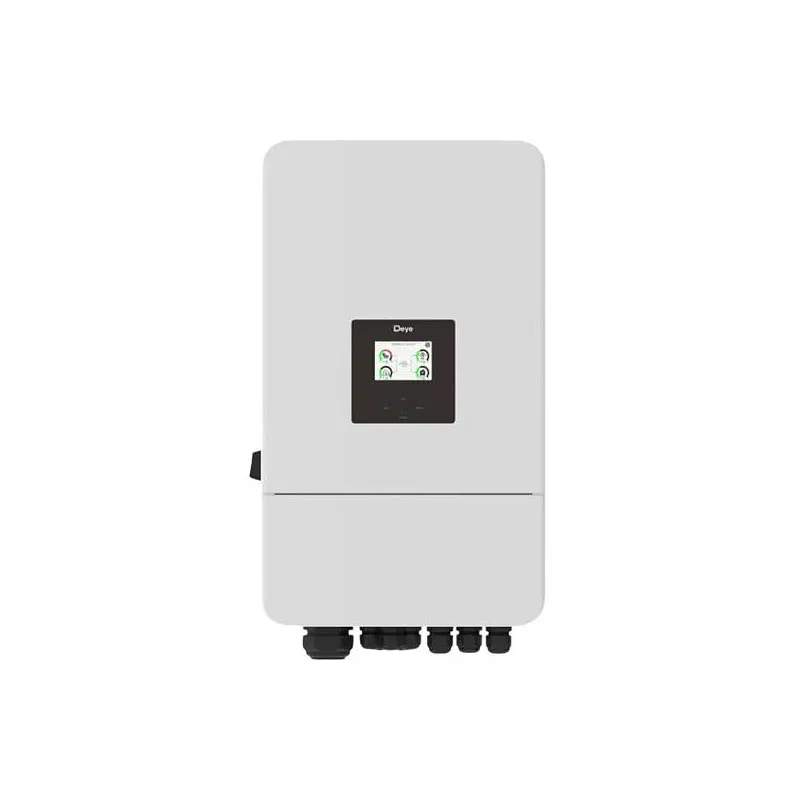

Deye SUN-4KW On-Grid Three-Phase Inverter (SUN-4K-G06P3-EU-AM2) – Powering Bangladesh's Future
Step into a brighter, more sustainable future with the Deye SUN-4KW On-Grid Three-Phase Inverter (Model: SUN-4K-G06P3-EU-AM2). Designed for efficiency, reliability, and seamless integration with your solar power system, this 4kW inverter is the ideal choice for residential and small commercial applications across Bangladesh. Priced competitively at just ৳80000 BDT, it offers exceptional value, enabling you to harness the power of the sun and significantly reduce your electricity bills. Discover the best Deye SUN-4KW On Grid Inverter price in Bangladesh right here, ensuring your investment in renewable energy is both smart and economical.
The Deye SUN-4KW On-Grid Inverter is engineered to maximize energy harvest from your solar panels, converting DC power into high-quality AC power that can be fed directly into your local grid. Its three-phase output makes it perfectly suited for homes and businesses with three-phase electrical connections, ensuring balanced and stable power distribution. With robust features and intelligent monitoring capabilities, this inverter is a cornerstone for any modern on-grid solar setup in Bangladesh.
Key Features of the Deye SUN-4KW On-Grid Inverter
High Efficiency & Maximum Yield
Experience superior energy conversion with the Deye SUN-4KW. Boasting a maximum efficiency of 98.2% and a European efficiency of 97.5%, this inverter ensures that more of the solar energy captured by your panels is converted into usable electricity. This high efficiency translates directly into greater savings and a faster return on your solar investment in Bangladesh.
Dual MPPT for Optimized Performance
Equipped with two independent Maximum Power Point Tracking (MPPT) inputs, the SUN-4K-G06P3-EU-AM2 can effectively manage two different solar panel arrays, even if they are oriented differently or experience varying shading conditions. This dual MPPT design maximizes energy harvest throughout the day, ensuring optimal performance for your solar system setup in Bangladesh.
Robust & Reliable Design
Built to withstand diverse environmental conditions, the Deye SUN-4KW inverter features an IP65 protection rating. This makes it suitable for outdoor installation, providing excellent resistance against dust and water ingress. Its natural convection cooling system ensures quiet operation and enhanced longevity, making it a dependable choice for years to come.
Smart Monitoring & Connectivity
Stay informed about your solar system's performance with integrated smart monitoring capabilities. The inverter supports RS485 communication, with optional Wi-Fi or GPRS modules available. This allows you to monitor energy production, consumption, and system status remotely via a user-friendly app or web portal, giving you complete control over your solar assets in Bangladesh.
Comprehensive Safety Protections
Safety is paramount with the Deye SUN-4KW. It comes with multiple protection features, including DC reverse polarity protection, AC short circuit protection, overcurrent protection, overvoltage protection, surge protection, and anti-islanding protection. These safeguards ensure the safe and reliable operation of your solar power system, protecting both your investment and your property.
User-Friendly Interface
The inverter features an intuitive LCD display that provides real-time operational data, status indicators, and fault messages. This user-friendly interface simplifies setup, configuration, and daily monitoring, making it easy for homeowners and installers alike to manage the system effectively.
Detailed Specifications: Deye SUN-4KW On-Grid Three-Phase Inverter
| Category |
Parameter |
Value |
| DC Input Data |
Max. DC Input Power |
5200W |
| Rated DC Input Voltage |
360V |
| MPPT Voltage Range |
80V - 550V |
| Min. DC Input Voltage |
80V |
| Max. DC Input Voltage |
600V |
| No. of MPPT Trackers |
2 |
| Strings per MPPT Tracker |
1 |
| Max. Input Current per MPPT |
12.5A |
| AC Output Data |
Rated AC Output Power |
4000W |
| Max. AC Output Power |
4400W |
| Rated AC Grid Voltage |
3/N/PE, 230V/400V |
| AC Grid Voltage Range |
180V - 270V (L-N) |
| Rated AC Grid Frequency |
50Hz / 60Hz |
| AC Grid Frequency Range |
45Hz - 55Hz / 55Hz - 65Hz |
| Max. AC Output Current |
6.7A |
| Power Factor |
>0.99 (adjustable from 0.8 leading to 0.8 lagging) |
| THDi |
<3% |
| Efficiency |
Max. Efficiency |
98.2% |
| European Efficiency |
97.5% |
| MPPT Efficiency |
99.9% |
| Protection |
DC Reverse Polarity Protection |
Yes |
| AC Short Circuit Protection |
Yes |
| Overcurrent Protection |
Yes |
| Overvoltage Protection |
Yes |
| Anti-Islanding Protection |
Yes |
| Surge Protection |
DC Type II / AC Type II |
| Leakage Current Protection |
Yes |
| General Data |
Dimensions (W x H x D) |
330 x 380 x 130 mm |
| Weight |
12 kg |
| Operating Temperature Range |
-25°C to +60°C |
| Relative Humidity |
0-100% (Non-condensing) |
| Topology |
Transformerless |
| Cooling |
Natural Convection |
| Ingress Protection |
IP65 |
| Display |
LCD1602 |
| Communication |
Standard Communication |
RS485 |
| Optional Communication |
Wi-Fi, GPRS |
| Warranty |
Standard Warranty |
5 Years |
Benefits of Choosing the Deye SUN-4KW On-Grid Inverter
- Significant Energy Savings: By efficiently converting solar energy into usable electricity, you can drastically reduce or even eliminate your monthly electricity bills, leading to substantial long-term savings.
- Environmental Impact: Contribute to a greener Bangladesh by utilizing clean, renewable energy, reducing your carbon footprint and supporting sustainable development.
- Grid Integration: Seamlessly connect to the national grid, with options for net metering where available, allowing you to sell excess electricity back to the utility company.
- Reliable Performance: Deye is a globally recognized brand for solar inverters, known for its quality and durability, ensuring your solar system performs optimally for years.
- Future-Proof Investment: Investing in solar technology like the Deye SUN-4KW inverter is an investment in your property's value and energy independence.
- Quiet Operation: Thanks to its natural convection cooling, the inverter operates silently, making it suitable for installations near living spaces.
Ideal Applications for the Deye SUN-4KW Inverter
The Deye SUN-4KW On-Grid Three-Phase Inverter is perfectly suited for:
- Residential Homes: Ideal for larger homes in Bangladesh with three-phase power connections looking to maximize solar energy utilization and reduce utility costs.
- Small Commercial Establishments: Perfect for offices, small shops, clinics, or workshops that require a reliable and efficient three-phase solar power solution.
- Agricultural Use: Can power irrigation pumps or other farm equipment during daylight hours, reducing reliance on grid electricity or diesel generators.
- Educational Institutions: Schools and colleges can benefit from reduced operating costs and demonstrate a commitment to sustainability.
Installation and Usage Guidelines
For optimal performance and safety, the installation of the Deye SUN-4KW On-Grid Inverter should always be performed by a certified and experienced solar technician. Key considerations include:
- Mounting Location: Choose a well-ventilated area, preferably shaded, to prevent overheating. The IP65 rating allows for outdoor installation, but protection from direct, prolonged sunlight can enhance longevity.
- Wiring: Ensure all DC and AC wiring is correctly sized, properly terminated, and adheres to local electrical codes in Bangladesh.
- Grounding: Proper grounding is essential for safety and to protect the inverter from electrical surges.
- Monitoring Setup: Configure the communication module (Wi-Fi/GPRS) to enable remote monitoring and performance tracking.
- Regular Checks: Periodically inspect the inverter for any signs of damage, ensure ventilation is unobstructed, and check connections.
