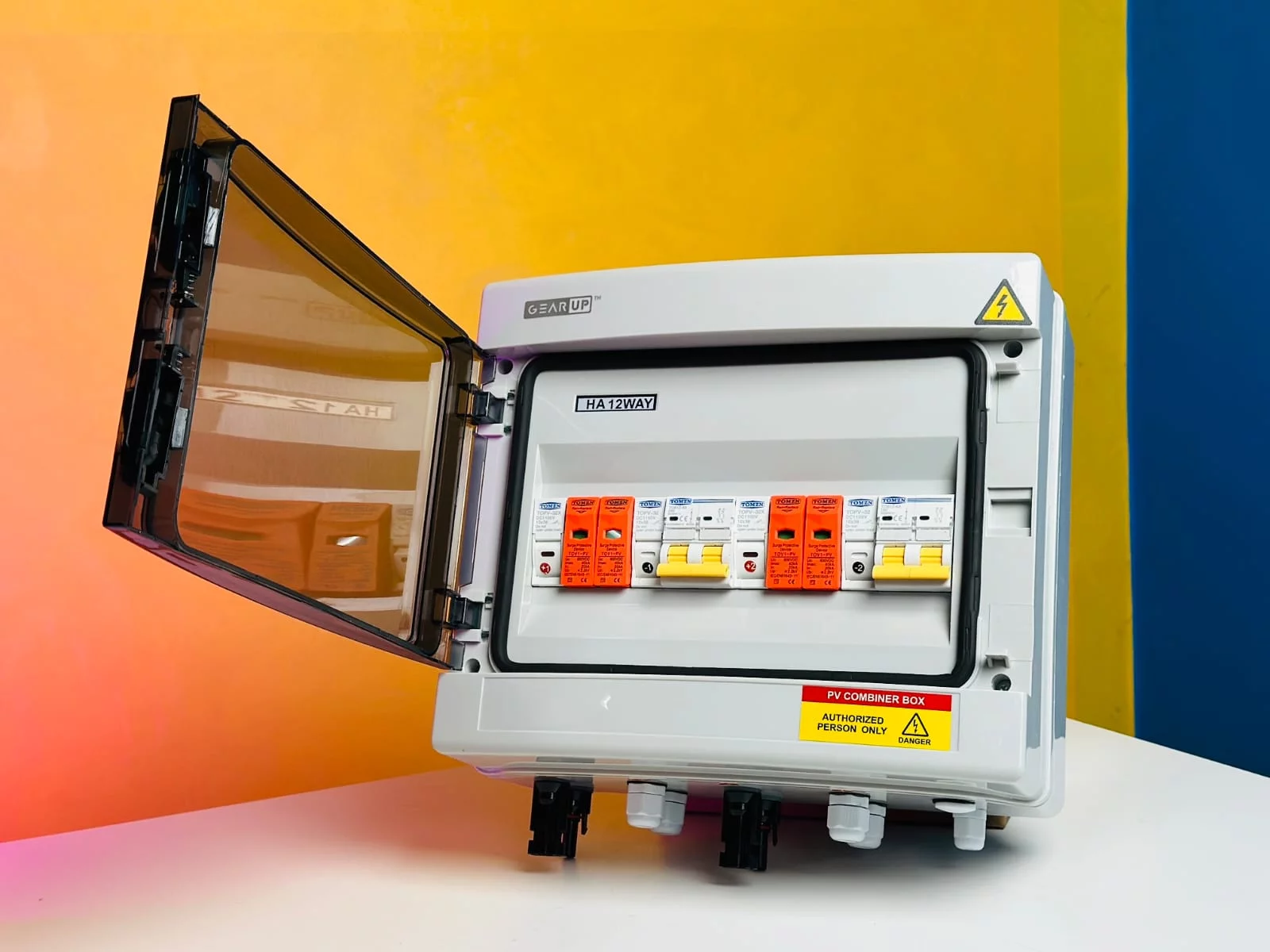

Name: GearUP DC PV Combiner Box 12 Way (2 String in 2 out) DC MCB, Fuse, SPD and IP65 Waterproof Box
Brand: GearUP
SKU: 18309
Price: 8500.00 BDT
Availability: OutOfStock

GearUP DC PV Combiner Box 12 Way (2 String in 2 out) DC MCB, Fuse, SPD and IP65 Waterproof Box

Product ID: 18309

Brand: GearUP

Warranty: 6 Months

No reviews yet

Key Features:

✅ 12 Way Design:

Designed to handle up to 12 solar panels (in 2 separate strings), i.e., 6 panels per string.
Combines and manages DC input from solar panels safely and efficiently.

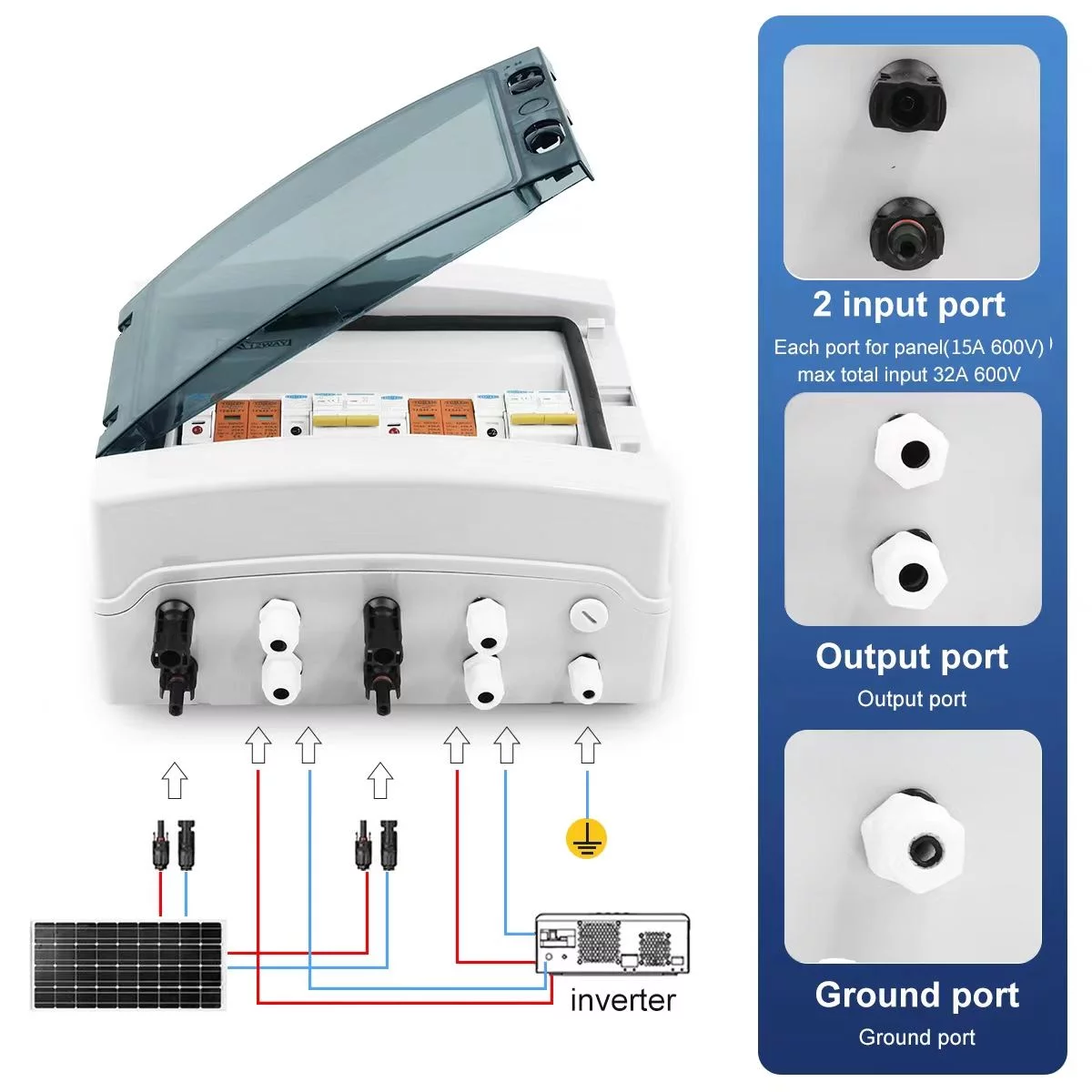

✅ 2 Strings In, 2 Strings Out:

Two independent input-output channels allow modular system management.
Ideal for systems using dual MPPT inverters (where each MPPT gets separate string input).

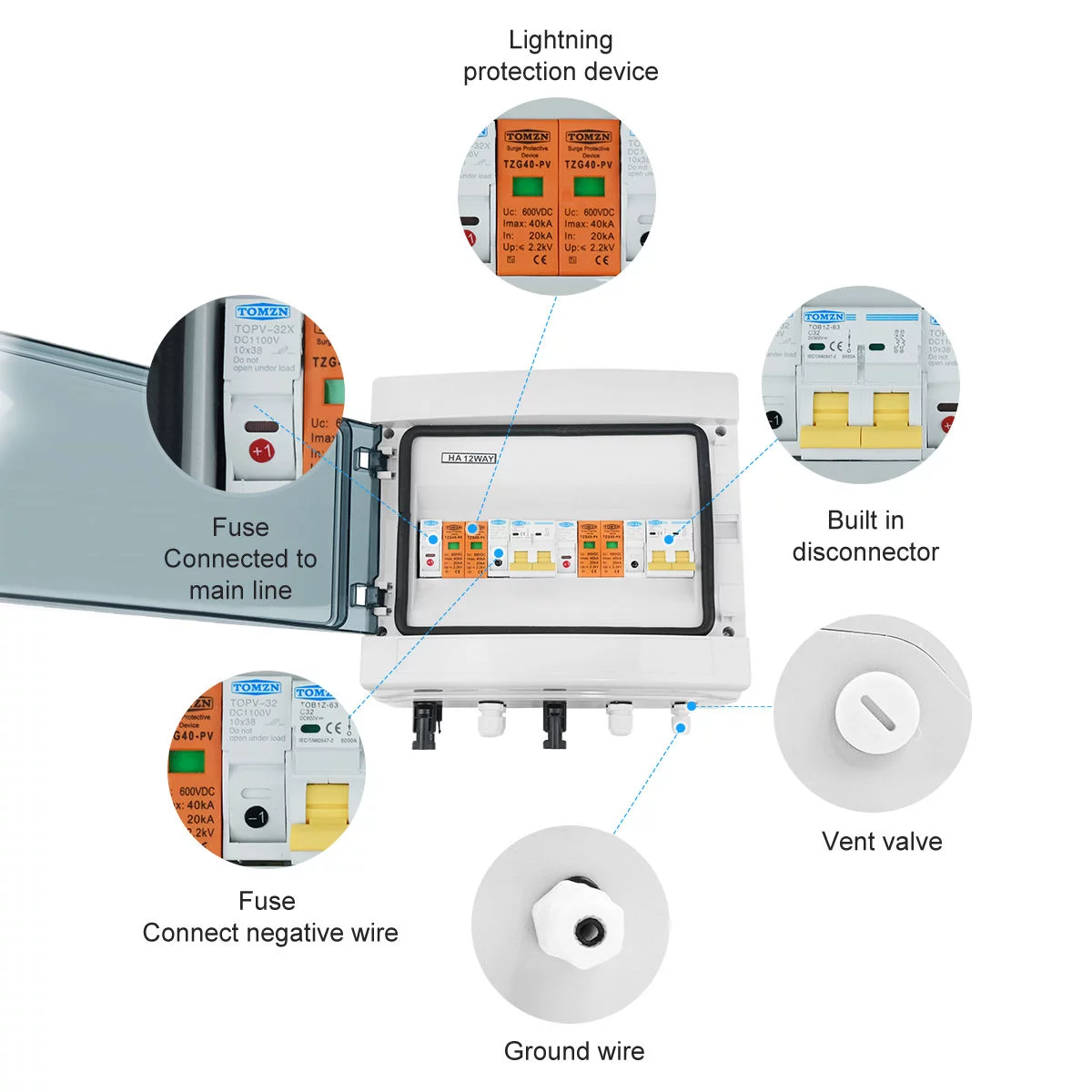

✅ Complete Protection:
Includes critical safety and protection components:

DC MCB (Miniature Circuit Breaker): Protects against overcurrent.
DC Fuse (per string): Offers string-level overcurrent protection.
SPD (Surge Protection Device): Shields your solar system from voltage surges due to lightning or switching.

✅ High IP Rating – IP65:

Fully dustproof and waterproof, suitable for outdoor and rooftop installations.
Enclosure made from high-quality ABS/polycarbonate plastic – UV resistant and flame-retardant.

✅ Easy Installation & Maintenance:

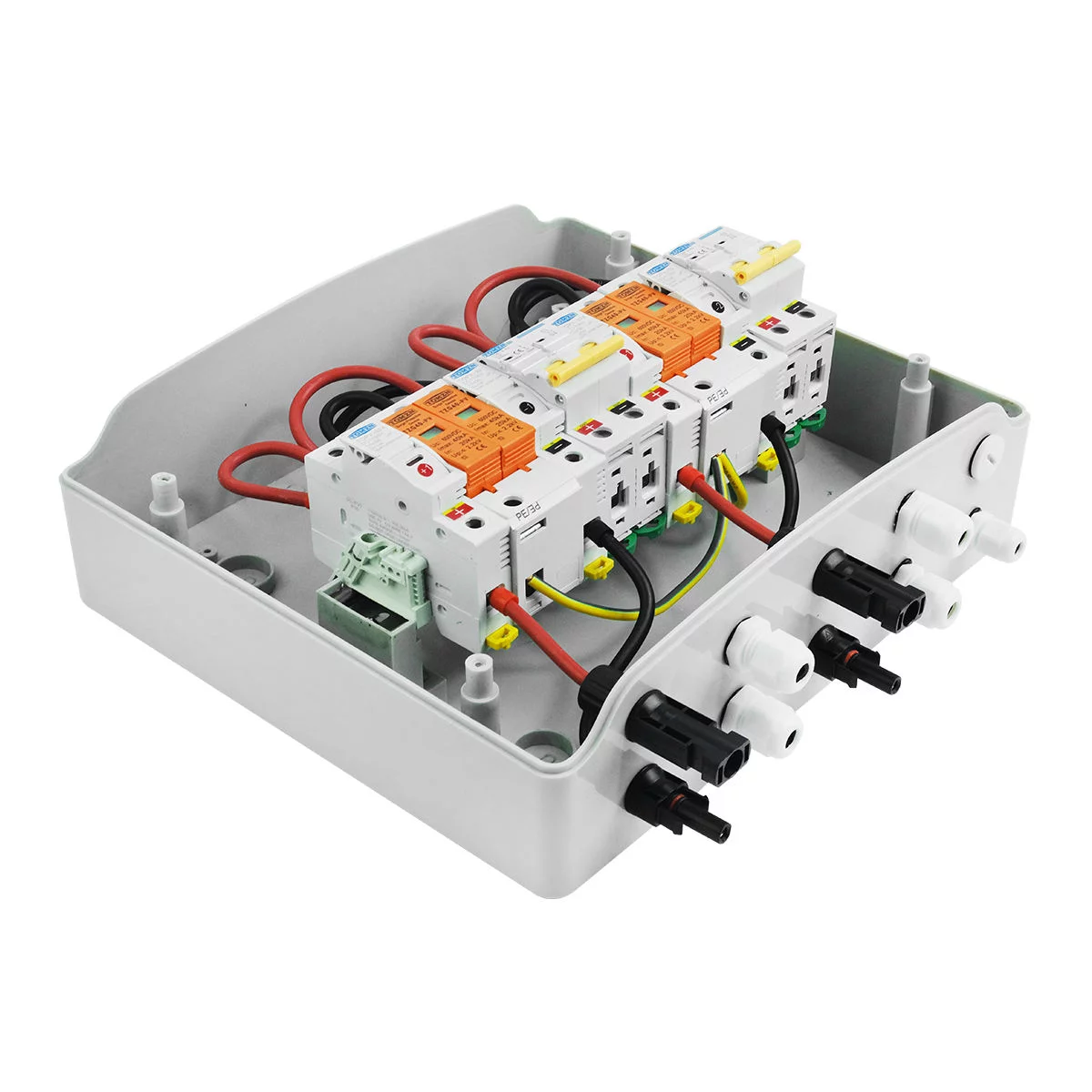

Pre-wired and clearly labeled terminals.
Cable gland and internal DIN rail mounting for clean wiring.

✅ Enhanced Safety:

Isolation and disconnection made easy with MCBs.
Reduces risk of arc faults, short circuits, or system failure.

✅ High Compatibility:

Works with most solar inverters (Growatt, Deye, SMA, Solis, etc.).
Compatible with both 6000V and 1000V PV systems (check model variant).

⚙️ Specifications:

Parameter	Specification
Input Strings	2 strings (6 in each string = 12 panels)
Output	2 outputs (to dual MPPT inverter)
Voltage Rating	600V DC
Current Per String	30A (depends on fuse rating)
MCB Rating	63A
SPD Type	Type II DC SPD
Enclosure	IP65 Waterproof (Outdoor rated)
Mounting	Wall or pole mounted
Cable Glands	UV-resistant PG glands

🏠 Ideal For:

Residential rooftop solar systems
Small to medium commercial solar installations
Hybrid or off-grid setups using dual MPPT inverters
EcoFlow, Growatt, Deye, SMA solar setups

Disclaimer:

Product descriptions and technical specifications on this website may be generated with the assistance of AI and are provided for reference purposes only. Actual product features, performance, and specifications may vary — please verify all details directly with the official manufacturer's website before purchase. We do not manufacture; we are a seller and are not responsible for discrepancies in product features, behavior, or specifications.
