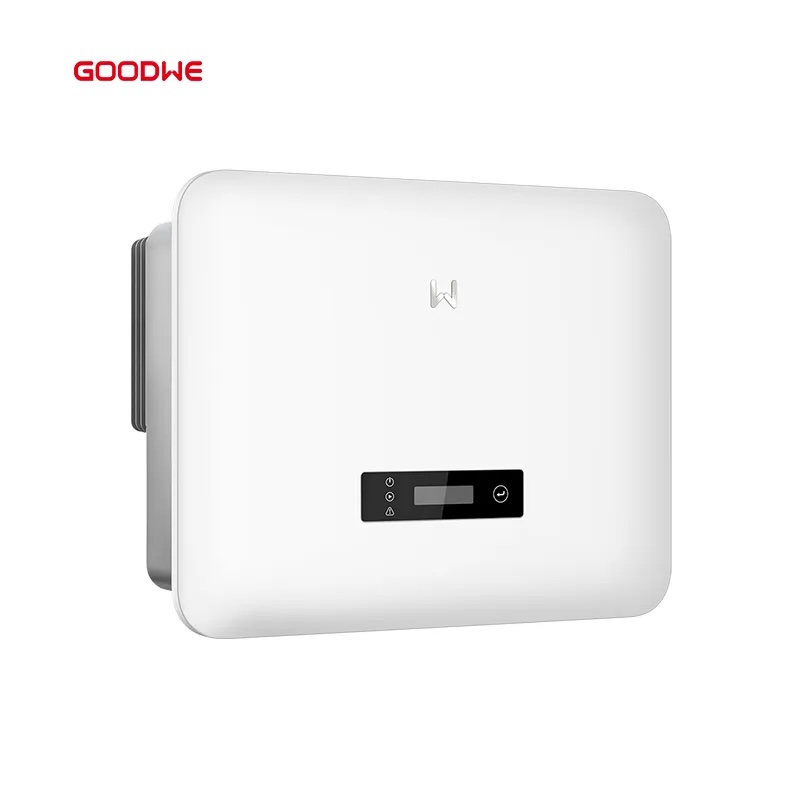

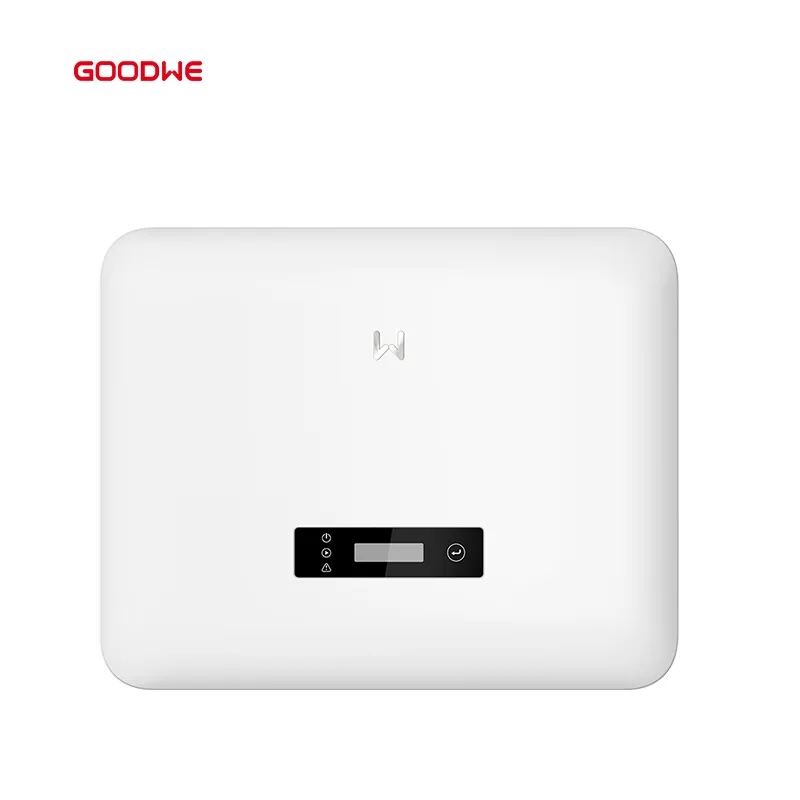

GoodWe GW10K-SDT-30: 10KW 3-Phase ON-GRID Solar Inverter in Bangladesh – Powering Sustainable Futures
Embrace the future of sustainable energy with the GoodWe GW10K-SDT-30 10KW 3-Phase ON-GRID Solar Inverter, now readily available in Bangladesh. This cutting-edge inverter is engineered to deliver exceptional performance, reliability, and efficiency for commercial, industrial, and large residential solar installations across the nation. Designed by GoodWe, a global leader in solar inverter technology, the GW10K-SDT-30 stands as a testament to advanced engineering, ensuring maximum energy harvest and seamless integration with the grid. If you're searching for a robust, high-performance 10KW solar inverter in Bangladesh, look no further.
Overview of GoodWe GW10K-SDT-30
The GoodWe GW10K-SDT-30 is a powerful 10-kilowatt, three-phase, grid-tied solar inverter specifically designed for medium to large-scale photovoltaic (PV) systems. It belongs to GoodWe's renowned SDT G2 series, which is celebrated for its compact design, high efficiency, and advanced safety features. This inverter is an ideal choice for businesses, factories, educational institutions, and large homes in Bangladesh looking to significantly reduce their electricity bills and contribute to a greener environment. Its intelligent design allows for optimal energy conversion, making your solar investment truly pay off. Experience the peace of mind that comes with a premium GoodWe inverter, tailored for the demanding energy landscape of Bangladesh.
Key Features of GoodWe GW10K-SDT-30
The GW10K-SDT-30 is packed with features that ensure top-tier performance, safety, and user convenience. These attributes make it one of the most sought-after 10KW 3-phase on-grid solar inverters in Bangladesh.
- High Efficiency: Boasts a maximum efficiency of 98.6%, ensuring more of your generated solar power is converted into usable electricity for the grid or your premises.
- Dual MPPT Design: Equipped with two Maximum Power Point Trackers (MPPTs), allowing for flexible array design and optimal performance even when panels are facing different orientations or experiencing partial shading.
- Wide MPPT Voltage Range: Offers a broad operating voltage range (180V-850V), ensuring consistent energy harvesting throughout the day and in varying weather conditions.
- Compact & Lightweight: With dimensions of 516 x 440 x 180 mm and a weight of just 20 kg, it offers easy installation and takes up minimal space.
- IP65 Protection: Designed with an IP65 ingress protection rating, making it highly resistant to dust and water, suitable for outdoor installation in Bangladesh's diverse climate.
- Integrated AFCI (Arc Fault Circuit Interrupter): Enhances safety by automatically detecting and mitigating arc faults, preventing potential electrical fires.
- Built-in DC & AC SPD (Surge Protection Device): Type II SPDs are integrated on both DC and AC sides, providing robust protection against lightning strikes and power surges.
- Fanless/Low-Noise Design: Operates quietly, making it suitable for installations near residential or office areas.
- Remote Monitoring: Supports various communication options (Wi-Fi, LAN, GPRS) for real-time monitoring of system performance via GoodWe's SEMS Portal, accessible from anywhere in Bangladesh or abroad.
- Export Power Control: Features intelligent export power limitation to comply with local grid regulations and prevent excess power injection.
Advanced Technology & Performance
The GoodWe GW10K-SDT-30 leverages cutting-edge technology to maximize your solar energy yield. Its advanced MPPT algorithms ensure that even under sub-optimal conditions, your solar panels operate at their peak power point. The wide input voltage range means your system starts generating power earlier in the morning and continues later into the evening, extending your daily energy harvest. The high conversion efficiency of up to 98.6% minimizes energy loss, translating directly into greater savings on your electricity bills. This level of performance is crucial for businesses and industries in Bangladesh seeking to optimize their renewable energy investments.
Safety & Reliability
Safety is paramount, especially for high-power inverters. The GW10K-SDT-30 incorporates multiple layers of protection to ensure safe and reliable operation. The integrated AFCI provides proactive protection against electrical fires by detecting and interrupting dangerous arc faults. Built-in Type II Surge Protection Devices on both DC and AC sides shield the inverter and your entire system from voltage spikes caused by lightning or grid fluctuations, a common concern in some regions of Bangladesh. The robust IP65 enclosure guarantees protection against environmental elements, ensuring longevity and consistent performance even in challenging weather conditions.
Easy Installation & Monitoring
Despite its advanced capabilities, the GoodWe GW10K-SDT-30 is designed for straightforward installation. Its compact size and manageable weight of 20 kg simplify handling and mounting. The user-friendly interface and clear indicators make commissioning a breeze. Furthermore, the inverter offers comprehensive monitoring solutions. With optional Wi-Fi, LAN, or GPRS modules, you can connect your system to the GoodWe SEMS Portal. This platform provides real-time data on energy production, consumption, and system status, allowing you to monitor your solar investment from your smartphone or computer, whether you are in Dhaka, Chittagong, or anywhere else in Bangladesh.
Technical Specifications Table: GoodWe GW10K-SDT-30
Here are the detailed technical specifications for the GoodWe GW10K-SDT-30 10KW 3-Phase ON-GRID Solar Inverter:
| Input (DC) |
| Max. DC Input Power |
13000 W |
| Max. DC Input Voltage |
1000 V |
| MPPT Voltage Range |
180 ~ 850 V |
| Start-up Voltage |
180 V |
| Nominal DC Input Voltage |
600 V |
| Max. Input Current (MPPT1 / MPPT2) |
12.5 A / 12.5 A |
| Max. Short Circuit Current (MPPT1 / MPPT2) |
15 A / 15 A |
| Number of MPPTs |
2 |
| Strings Per MPPT |
1 / 1 |
| Output (AC) |
| Nominal AC Output Power |
10000 W |
| Max. AC Apparent Power |
11000 VA |
| Nominal AC Voltage (Range) |
230V/400V (310-480V) |
| Nominal AC Frequency (Range) |
50 Hz / 60 Hz (45-55 Hz / 55-65 Hz) |
| Max. Output Current |
16 A |
| Power Factor |
~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| THDi |
< 3% |
| AC Connection |
3W+N+PE |
| Efficiency |
| Max. Efficiency |
98.6% |
| European Efficiency |
98.0% |
| Protection |
| DC Reverse Polarity Protection |
Yes |
| AC Short Circuit Protection |
Yes |
| AC Overcurrent Protection |
Yes |
| Over Voltage Protection (DC & AC) |
Type II SPD |
| Insulation Resistance Detection |
Yes |
| Residual Current Monitoring Unit |
Yes |
| Arc Fault Circuit Interrupter (AFCI) |
Yes |
| General Data |
| Dimensions (W x H x D) |
516 x 440 x 180 mm |
| Weight |
20 kg |
| Topology |
Transformerless |
| Operating Temperature Range |
-25°C to 60°C |
| Relative Humidity |
0 ~ 100% |
| Ingress Protection |
IP65 |
| Cooling |
Natural Convection |
| Noise Emission |
< 30 dB |
| Display |
LCD & LED Indicators |
| Communication Interfaces |
Wi-Fi (Optional), LAN (Optional), GPRS (Optional), RS485 |
| Warranty |
5 Years Standard (Extendable up to 10 or 25 years) |
Why Choose GoodWe GW10K-SDT-30 in Bangladesh?
For businesses and homeowners in Bangladesh, selecting the right solar inverter is crucial for the long-term success of their solar project. The GoodWe GW10K-SDT-30 offers compelling advantages:
- Optimized for Bangladesh's Grid: Its robust design and wide voltage/frequency ranges ensure stable operation and compliance with local grid conditions in Bangladesh.
- Maximum ROI: High efficiency and dual MPPTs mean more energy production, leading to faster payback periods and greater savings on electricity bills, a significant factor given rising energy costs in Bangladesh.
- Reliability & Durability: GoodWe's reputation for quality, combined with IP65 protection and advanced safety features, guarantees a durable and reliable investment that can withstand Bangladesh's climate.
- Global Brand, Local Support: GoodWe is a globally recognized brand, and its products are supported by local distributors and service providers in Bangladesh, ensuring accessible technical assistance and warranty claims.
- Future-Proof Investment: With advanced monitoring and smart grid functions, this inverter is ready for future energy management requirements.
Ideal Applications in Bangladesh
The GoodWe GW10K-SDT-30 is perfectly suited for a variety of on-grid solar applications across Bangladesh:
- Commercial Buildings: Office complexes, shopping malls, and retail outlets can significantly reduce operational costs.
- Industrial Facilities: Factories and manufacturing units can power their operations with clean energy, reducing reliance on expensive grid electricity or diesel generators.
- Educational Institutions: Universities, colleges, and schools can benefit from lower utility bills and demonstrate a commitment to sustainability.
- Large Residential Properties: High-end homes and apartment complexes with substantial energy needs can achieve energy independence.
- Agricultural Sector: Modern farms can power irrigation systems, cold storage, and other facilities, especially in regions with good solar insolation.
Availability & Price in Bangladesh
The GoodWe GW10K-SDT-30 10KW 3-Phase ON-GRID Solar Inverter is widely available through authorized distributors and solar solution providers across Bangladesh. You can find this advanced inverter in major cities like Dhaka, Chittagong, Sylhet, Khulna, and other regions. For the most competitive GoodWe GW10K-SDT-30 price in Bangladesh, we recommend contacting reputable suppliers who offer genuine products with proper warranty and after-sales support. While prices can vary based on the supplier and additional services (like installation), you can expect the GoodWe GW10K-SDT-30 to be priced in the range of ৳155,000 to ৳175,000. For specific quotes and to find the best price in Bangladesh, it's advisable to get in touch with local solar companies. If you're searching for "GoodWe 10KW 3-Phase ON-GRID Solar Inverter near me" in Bangladesh, a quick online search or consultation with local solar installers will connect you with providers offering fast delivery in Bangladesh.
Installation & Support
For optimal performance and safety, professional installation of the GoodWe GW10K-SDT-30 is highly recommended. Certified solar technicians across Bangladesh are equipped to handle the installation and commissioning of this inverter, ensuring it integrates seamlessly with your solar panel array and the national grid. Most authorized dealers also provide comprehensive after-sales support, including warranty services and technical assistance, giving you complete peace of mind with your investment in renewable energy in Bangladesh.
Conclusion
The GoodWe GW10K-SDT-30 10KW 3-Phase ON-GRID Solar Inverter represents an intelligent, efficient, and reliable solution for those seeking to harness solar power in Bangladesh. Its robust features, high efficiency, and advanced safety mechanisms make it an excellent choice for a wide range of applications, from commercial establishments to large residential projects. Invest in the GoodWe GW10K-SDT-30 today and take a significant step towards energy independence and a sustainable future for your home or business in Bangladesh. Experience the power of GoodWe – a trusted name in solar technology, delivering excellence to the Bangladesh market.
