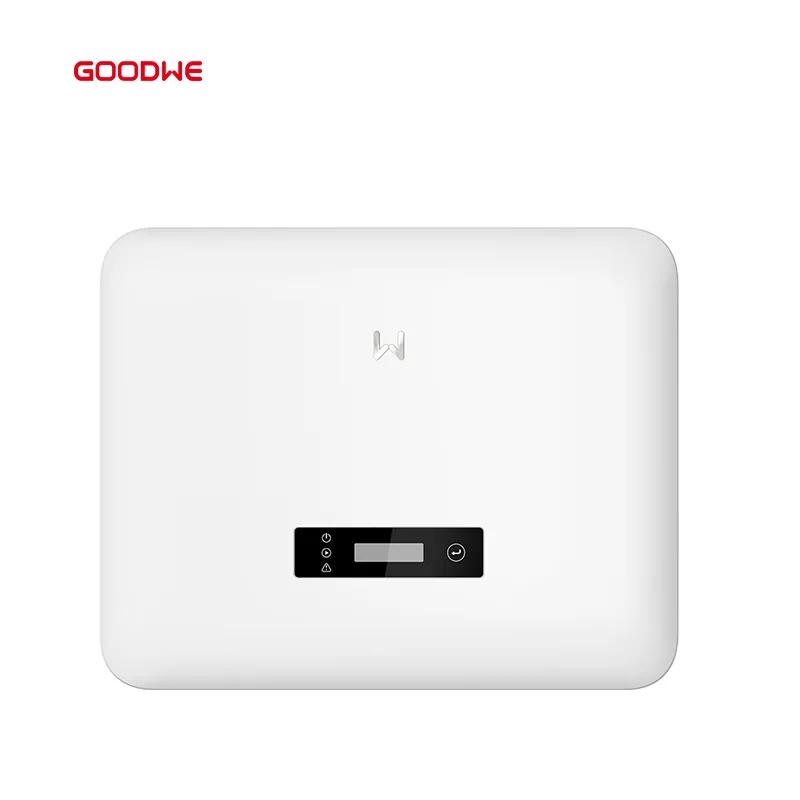

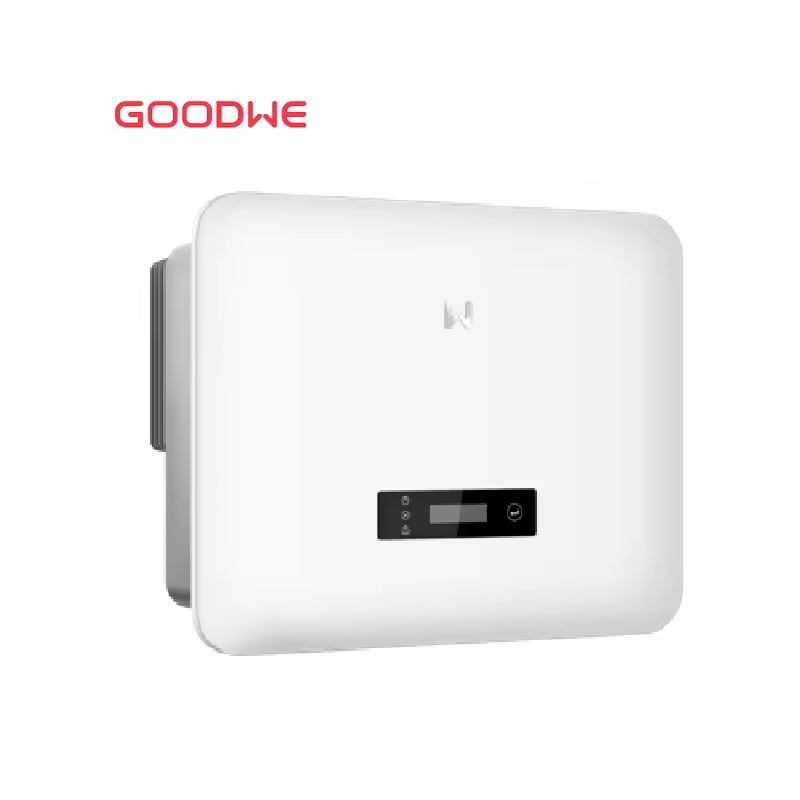

GoodWe 20KW 3-Phase ON-GRID Solar Inverter (GW20K-SDT-30) - Price in Bangladesh
Harness the power of the sun and significantly reduce your electricity bills with the advanced GoodWe 20KW 3-Phase ON-GRID Solar Inverter (GW20K-SDT-30). Engineered for high performance, reliability, and smart energy management, this inverter is an ideal choice for commercial establishments, large residential properties, and industrial units looking to invest in sustainable energy solutions across Bangladesh. With its robust design and cutting-edge technology, the GW20K-SDT-30 ensures maximum energy yield and seamless integration with the national grid.
Currently available at a competitive price of ৳135,000.00 BDT, the GoodWe 20KW 3-Phase ON-GRID Solar Inverter offers an excellent return on investment for businesses and homeowners committed to green energy in Bangladesh. Discover why this inverter is quickly becoming a preferred choice for solar power systems.
Overview
The GoodWe GW20K-SDT-30 is a state-of-the-art 3-phase on-grid solar inverter designed to convert DC power generated by solar panels into usable AC power for grid connection. With a rated output power of 20KW, it is perfectly suited for medium to large-scale solar installations. This inverter boasts dual MPPT (Maximum Power Point Tracking) technology, allowing it to optimize energy harvesting from different solar array orientations or conditions, ensuring high efficiency even in partial shading scenarios. Its transformerless topology contributes to its compact size, lighter weight, and superior efficiency.
GoodWe, a globally recognized leader in solar inverter technology, brings a product that combines innovation with durability. The GW20K-SDT-30 is built to withstand the diverse environmental conditions prevalent in Bangladesh, offering an IP65 protection rating for outdoor installation. For those searching for a reliable and high-performing 20KW solar inverter in Bangladesh, the GW20K-SDT-30 stands out as a prime contender.
Key Features
- High Efficiency: Achieves a maximum efficiency of 98.6%, ensuring more of your generated solar power is converted into usable electricity, leading to greater savings.
- Dual MPPT Design: Equipped with two independent MPPTs, it allows for flexible system design and maximizes energy harvest from solar arrays, even with varying sunlight conditions or panel orientations.
- Wide MPPT Voltage Range: Features a broad MPPT voltage range of 180V to 850V, providing greater flexibility in string sizing and panel configurations.
- 3-Phase Output: Designed for 3-phase grid connection (230V/400V), making it ideal for commercial and industrial applications in Bangladesh.
- Robust & Durable: IP65 rated enclosure provides excellent protection against dust and water, making it suitable for outdoor installation in challenging climates.
- Smart Forced Air Cooling: Ensures optimal operating temperature, enhancing the inverter's lifespan and performance.
- Comprehensive Protections: Includes multiple protection features such as DC reverse polarity protection, AC short circuit protection, overcurrent protection, surge protection (DC Type II / AC Type II), insulation resistance monitoring, and anti-islanding protection for safe and reliable operation.
- Integrated Monitoring: Standard Wi-Fi communication allows for real-time monitoring of system performance via the GoodWe SEMS Portal, accessible from anywhere. Optional GPRS, RS485, and Ethernet are also available.
- Compact and Lightweight: With dimensions of 516 x 474 x 200 mm and a weight of 22 kg, it offers easier handling and installation compared to bulkier alternatives.
- Transformerless Topology: Contributes to higher efficiency and a more compact design.
Why Choose the GoodWe GW20K-SDT-30?
Investing in a solar inverter is a crucial decision for any solar power system. The GoodWe GW20K-SDT-30 offers compelling advantages for users in the Bangladesh market:
- Maximised Energy Yield: The high efficiency and dual MPPTs ensure that your solar panels consistently produce the maximum possible energy, translating directly into higher electricity savings. This is critical for businesses looking to optimize their operational costs.
- Reliability and Longevity: GoodWe's reputation for quality, combined with an IP65 rating and smart cooling, means this inverter is built to last, even in Bangladesh's demanding climate conditions. A standard 5-year warranty (with options for extension) provides peace of mind.
- Smart Management: The integrated Wi-Fi module allows you to monitor your solar system's performance remotely. Track energy production, consumption, and identify any issues promptly, ensuring your system is always running at its best. This smart feature adds significant value for users in Bangladesh.
- Safety First: Equipped with a comprehensive suite of protection features, the GW20K-SDT-30 safeguards both your solar system and the connected grid, ensuring safe operation at all times.
- Cost-Effectiveness: At ৳135,000.00 BDT, this 20KW inverter offers an excellent balance of performance, features, and price, making it a highly cost-effective solution for large-scale solar projects in Bangladesh.
- Environmental Impact: By generating clean, renewable energy, you contribute to reducing carbon emissions and promoting a greener future for Bangladesh, aligning with global sustainability goals.
Technical Specifications
| GoodWe GW20K-SDT-30 3-Phase ON-GRID Solar Inverter |
| Input Data (DC) |
| Max. DC Power |
26000 W |
| Max. Input Voltage |
1000 V |
| MPPT Voltage Range |
180 ~ 850 V |
| Start-up Voltage |
200 V |
| No. of MPPTs |
2 |
| Strings per MPPT |
2 / 2 |
| Max. Input Current per MPPT |
26 A (13A per string) |
| Max. Short Circuit Current per MPPT |
32.5 A |
| Output Data (AC) |
| Rated AC Output Power |
20000 W |
| Max. AC Output Apparent Power |
22000 VA |
| Max. AC Output Current |
31.9 A |
| Rated AC Voltage |
3/N/PE, 230V/400V |
| AC Voltage Range |
310 - 480 V |
| Rated Grid Frequency |
50 Hz / 60 Hz |
| Grid Frequency Range |
45 - 55 Hz / 55 - 65 Hz |
| Power Factor |
~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| THDi |
<3% |
| Efficiency |
| Max. Efficiency |
98.6% |
| Euro Efficiency |
98.2% |
| General Data |
| Dimensions (W x H x D) |
516 x 474 x 200 mm |
| Weight |
22 kg |
| Topology |
Transformerless |
| Operating Temperature Range |
-30 ~ +60 °C (derating above 45°C) |
| Relative Humidity |
0 ~ 100% (condensing) |
| Ingress Protection |
IP65 |
| Cooling |
Smart Forced Air Cooling |
| Display |
LCD & LED |
| Communication |
Wi-Fi (Standard), GPRS (Optional), RS485 (Optional), Ethernet (Optional) |
| Warranty |
5 Years Standard (Extendable) |
| Protection Features |
| DC Reverse Polarity Protection |
Yes |
| AC Short Circuit Protection |
Yes |
| AC Overcurrent Protection |
Yes |
| Surge Protection |
DC Type II / AC Type II |
| Insulation Resistance Monitoring |
Yes |
| Ground Fault Monitoring |
Yes |
| Grid Monitoring |
Yes |
| Anti-Islanding Protection |
Yes |
| Residual Current Monitoring Unit (RCMU) |
Yes |
Installation & Usage
The GoodWe GW20K-SDT-30 inverter is designed for straightforward installation by certified solar technicians. Its compact size and wall-mountable design facilitate flexible placement. Once installed, the inverter automatically synchronizes with the grid and begins converting DC power from your solar panels into AC power. Monitoring is made easy with the integrated Wi-Fi module, allowing users to track performance data, troubleshoot issues, and manage their solar system remotely via the GoodWe SEMS Portal. Regular cleaning of solar panels and periodic checks by a professional ensure optimal performance and longevity of your solar power system in Bangladesh.
Availability & Price in Bangladesh
The GoodWe 20KW 3-Phase ON-GRID Solar Inverter (GW20K-SDT-30) is readily available for purchase in Bangladesh. You can acquire this high-performance inverter at a competitive price of ৳135,000.00 BDT. We strive to offer the best price in Bangladesh for genuine GoodWe products, ensuring you receive a reliable inverter with full manufacturer support.
For those searching for "GoodWe 20KW 3-Phase ON-GRID Solar Inverter near me" or "GoodWe GW20K-SDT-30 price in Bangladesh", you can find this product through our authorized distributors and online channels across the country. We offer reliable delivery in Bangladesh, ensuring your inverter reaches you safely and promptly. Our customer support team is always ready to assist with any queries regarding product specifications, installation, or warranty.
Embrace sustainable energy with confidence. This inverter is a smart investment for businesses and large households seeking to achieve energy independence and contribute positively to the environment in Bangladesh.
Conclusion
The GoodWe 20KW 3-Phase ON-GRID Solar Inverter (GW20K-SDT-30) represents a powerful, efficient, and reliable solution for medium to large-scale solar power generation. Its advanced features, robust build quality, and comprehensive safety protections make it an excellent choice for anyone serious about solar energy in Bangladesh. With a competitive price of ৳135,000.00 BDT and widespread availability, transitioning to solar power has never been more accessible and rewarding. Choose GoodWe for a brighter, sustainable future.
