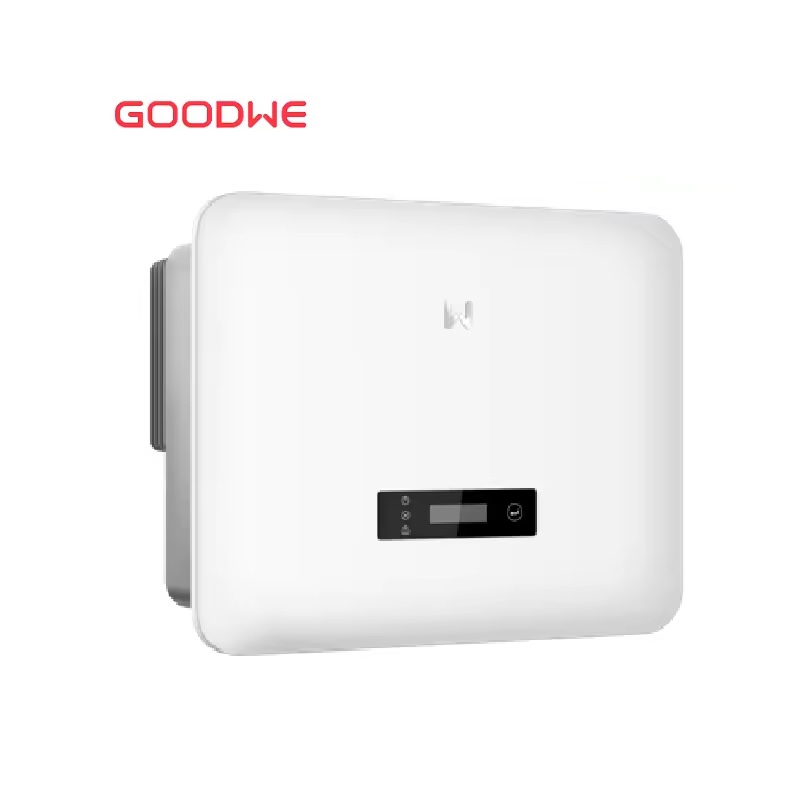

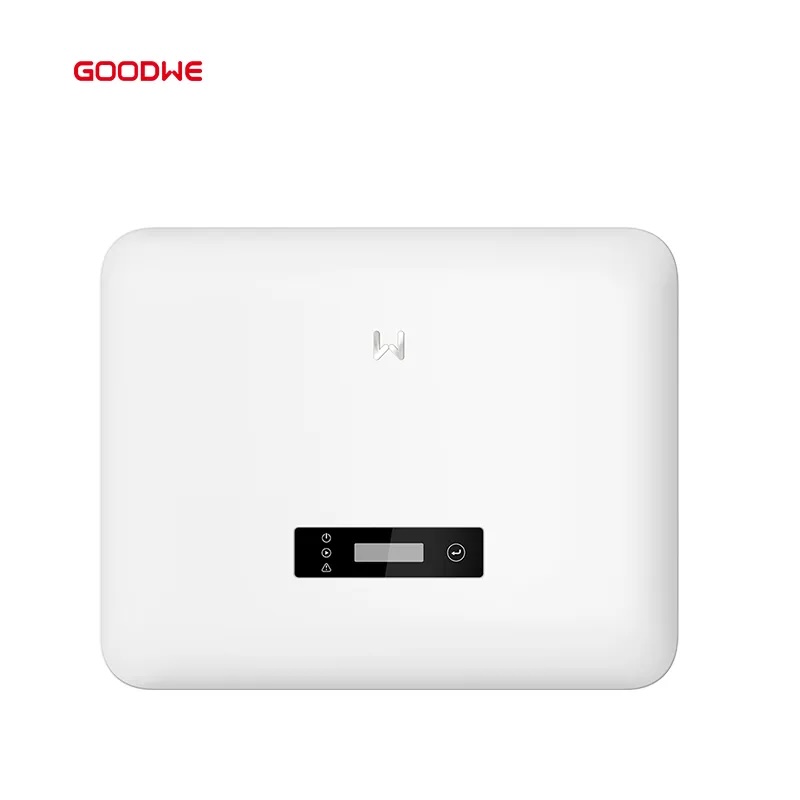

GoodWe 25KW 3-Phase ON-GRID Solar Inverter (GW25K-SDT-C30)
Harness the power of the sun efficiently and reliably with the GoodWe 25KW 3-Phase ON-GRID Solar Inverter (GW25K-SDT-C30), now readily available in Bangladesh. Engineered for commercial, industrial, and large-scale residential solar projects, this advanced inverter is a cornerstone for maximizing energy yield and ensuring seamless integration with the national grid. GoodWe, a global leader in solar inverter technology, brings its renowned quality and innovation to the Bangladesh market, offering a robust solution for sustainable energy generation.
The GW25K-SDT-C30 model is specifically designed to meet the demands of high-performance solar installations, delivering exceptional efficiency, advanced safety features, and smart monitoring capabilities. For businesses and homeowners in Bangladesh looking to reduce electricity bills, achieve energy independence, and contribute to a greener future, this 25KW on-grid inverter represents a smart, long-term investment.
Key Features of GoodWe GW25K-SDT-C30
The GoodWe 25KW 3-Phase ON-GRID Solar Inverter is packed with features that ensure optimal performance, reliability, and ease of use, making it a top choice for solar projects in Bangladesh.
- High Efficiency Conversion: Achieves a maximum efficiency of 98.7% and a European efficiency of 98.3%, ensuring more of the generated solar power is converted into usable AC electricity, directly translating to higher savings on your electricity bill in Bangladesh.
- Dual MPPT Design: Equipped with two independent Maximum Power Point Trackers (MPPTs), the inverter can optimize power generation from different solar panel arrays or panels facing different orientations, maximizing overall system performance even under partial shading conditions.
- Wide MPPT Voltage Range: Features a broad MPPT voltage range of 200V to 1000V, allowing for flexible string design and optimal performance across various environmental conditions prevalent in Bangladesh.
- Robust and Durable Construction: Designed with an IP65 protection rating, the inverter is highly resistant to dust and water ingress, making it suitable for outdoor installation and capable of withstanding the diverse weather conditions in Bangladesh.
- Advanced Safety Protections: Includes comprehensive safety features such as DC reverse polarity protection, AC short circuit protection, leakage current monitoring, built-in DC switch, and AC/DC Type II Surge Protection Devices (SPDs) to ensure the safety of your system and personnel. Optional AFCI (Arc Fault Circuit Interrupter) provides an extra layer of protection.
- Smart Monitoring and Communication: Supports various communication options including Wi-Fi (standard) and optional LAN/4G modules, allowing for real-time monitoring of your solar system's performance via the GoodWe SEMS Portal or mobile app. This feature is invaluable for tracking energy production and diagnosing issues remotely from anywhere in Bangladesh.
- Compact and Lightweight Design: With dimensions of 516 x 490 x 200 mm and a weight of just 24 kg, the inverter is easy to transport, handle, and install, reducing labor costs and simplifying deployment for projects across Bangladesh.
- Grid-Friendly Operation: Complies with international grid codes and standards, ensuring stable and reliable operation within the Bangladesh national grid infrastructure.
Benefits of Choosing GoodWe GW25K-SDT-C30 for Your Project in Bangladesh
Investing in the GoodWe 25KW 3-Phase ON-GRID Solar Inverter offers a multitude of benefits for energy consumers in Bangladesh:
- Maximized Energy Yield: The high efficiency and dual MPPTs ensure that your solar panels consistently produce the maximum possible power, leading to greater energy generation and faster return on investment.
- Significant Cost Savings: By converting more solar energy into usable electricity, you reduce your reliance on grid power, leading to substantial savings on your monthly electricity bills. This is particularly beneficial with rising energy costs in Bangladesh.
- Reliable and Stable Performance: GoodWe's reputation for quality and the robust design of the GW25K-SDT-C30 guarantee long-term, stable operation, even in challenging environmental conditions.
- Enhanced Safety: The integrated safety features provide peace of mind, protecting your solar investment and ensuring the safety of your property and family.
- Easy Monitoring and Management: The smart monitoring platform allows you to keep a close eye on your system's performance, identify potential issues, and manage your energy production effectively from anywhere in Bangladesh.
- Environmentally Friendly: By generating clean, renewable energy, you contribute to reducing carbon emissions and promoting a sustainable environment in Bangladesh.
- Future-Proof Investment: GoodWe inverters are built with advanced technology and come with a reliable warranty, ensuring your solar system remains efficient and effective for years to come.
Technical Specifications Table (GoodWe GW25K-SDT-C30)
| GoodWe GW25K-SDT-C30 - Technical Specifications |
| Input Data (DC) |
| Max. DC Input Power |
32500 W |
| Max. DC Input Voltage |
1100 V |
| MPPT Voltage Range |
200 ~ 1000 V |
| Start-up Voltage |
180 V |
| Nominal Input Voltage |
600 V |
| No. of MPPTs |
2 |
| No. of DC Input Strings per MPPT |
2 / 2 |
| Max. Input Current per MPPT |
26 A (13A per string) |
| Max. Short Circuit Current per MPPT |
32.5 A |
| Output Data (AC) |
| Nominal AC Output Power |
25000 W |
| Max. AC Output Power (Apparent) |
27500 VA |
| Max. AC Output Current |
41.7 A |
| Nominal AC Voltage |
3/N/PE, 230V/400V |
| AC Grid Frequency |
50 / 60 Hz |
| Power Factor |
~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| THDi |
< 3% |
| Grid Connection Type |
3-Phase |
| Efficiency |
| Max. Efficiency |
98.7% |
| European Efficiency |
98.3% |
| Protection |
| DC Reverse Polarity Protection |
Yes |
| AC Short Circuit Protection |
Yes |
| Output Over Current Protection |
Yes |
| Output Over Voltage Protection |
Yes |
| Insulation Resistance Monitoring |
Yes |
| DC Switch |
Integrated |
| Leakage Current Protection |
Yes |
| Surge Protection (DC/AC) |
Type II / Type II |
| AFCI Protection |
Optional |
| General Data |
| Dimensions (W x H x D) |
516 x 490 x 200 mm |
| Weight |
24 kg |
| Operating Temperature Range |
-30 ~ 60 °C |
| Relative Humidity |
0 ~ 95% (Non-condensing) |
| Ingress Protection Rating |
IP65 |
| Cooling |
Smart Fan Cooling |
| Display |
LED Indicators, Integrated LCD (Optional) |
| Communication Interfaces |
Wi-Fi (Standard), LAN/4G (Optional), RS485 |
| Warranty |
5 Years (Standard, extendable) |
Usage and Installation Guidance
The GoodWe GW25K-SDT-C30 is designed for professional installation in grid-tied solar photovoltaic systems. It converts the DC electricity generated by solar panels into AC electricity suitable for consumption by your premises and for feeding into the national grid. For optimal performance and safety, it is highly recommended that installation be carried out by certified solar technicians. A proper site assessment, adherence to local electrical codes in Bangladesh, and professional wiring are crucial for the long-term reliability of your solar investment.
The inverter's user-friendly interface and comprehensive monitoring options make it easy to manage your system once installed. Regular monitoring through the GoodWe SEMS Portal allows you to track energy production, identify any performance anomalies, and ensure your system is operating at its peak efficiency.
Why Buy GoodWe GW25K-SDT-C30 in Bangladesh?
Bangladesh's growing demand for sustainable energy solutions makes the GoodWe 25KW 3-Phase ON-GRID Solar Inverter an ideal choice. Its high efficiency and robust design are perfectly suited for the local climate and grid conditions. With increasing awareness and government support for renewable energy, investing in a reliable inverter like the GW25K-SDT-C30 helps businesses and industries in Bangladesh achieve energy independence, reduce operational costs, and contribute to national energy security.
GoodWe has established a strong presence in the global solar market, known for its reliable products and excellent support. Choosing this inverter in Bangladesh means you are opting for a globally recognized brand that delivers consistent performance and innovation.
GoodWe 25KW On-Grid Inverter Price in Bangladesh
The GoodWe 25KW 3-Phase ON-GRID Solar Inverter (GW25K-SDT-C30) price in Bangladesh varies depending on the supplier, warranty terms, and any additional services like installation or extended support. Generally, you can expect the price for this high-quality 25KW inverter to range between ৳195,000 to ৳235,000. It's advisable to compare offers from authorized distributors to find the best price in Bangladesh for your specific needs. While upfront cost is a factor, considering the long-term savings and reliability offered by a premium brand like GoodWe makes it a worthwhile investment.
Availability and Support in Bangladesh
The GoodWe 25KW 3-Phase ON-GRID Solar Inverter (GW25K-SDT-C30) is widely available through authorized dealers and solar solution providers across Bangladesh. You can easily find this product in major cities like Dhaka, Chittagong, Sylhet, and Khulna, with many suppliers offering nationwide delivery in Bangladesh. To find the GW25K-SDT-C30 near me in Bangladesh, a quick search for "GoodWe inverter Bangladesh" or contacting reputable solar companies will provide you with local options.
GoodWe products are supported by a network of distributors who provide technical assistance, warranty services, and spare parts, ensuring that your investment is protected and your system operates smoothly throughout its lifespan. Always purchase from authorized channels to ensure genuine products and valid warranty coverage.
Conclusion
The GoodWe 25KW 3-Phase ON-GRID Solar Inverter (GW25K-SDT-C30) stands out as an excellent choice for anyone planning a medium to large-scale solar power system in Bangladesh. Its combination of high efficiency, robust safety features, smart monitoring, and durable design makes it a reliable, high-performance solution for maximizing your solar energy potential. Invest in the GoodWe GW25K-SDT-C30 today and take a significant step towards energy independence and a sustainable future for your business or home in Bangladesh.
