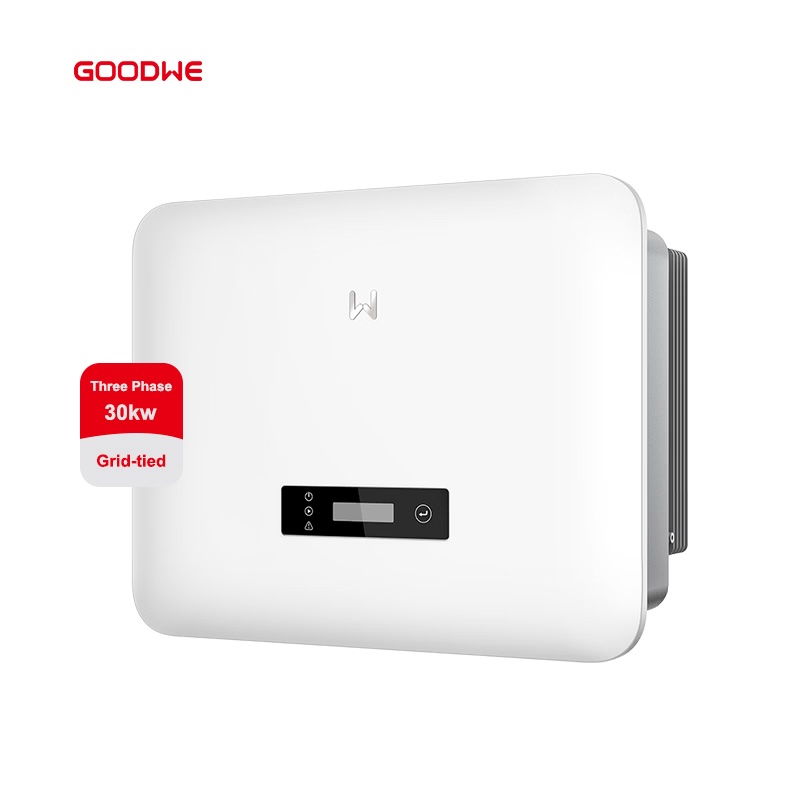

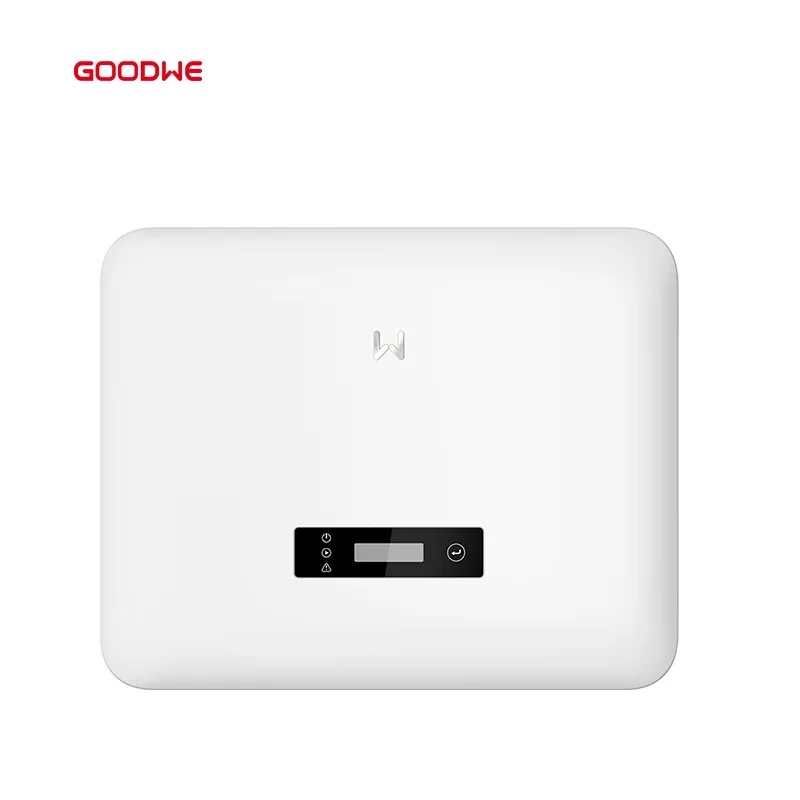

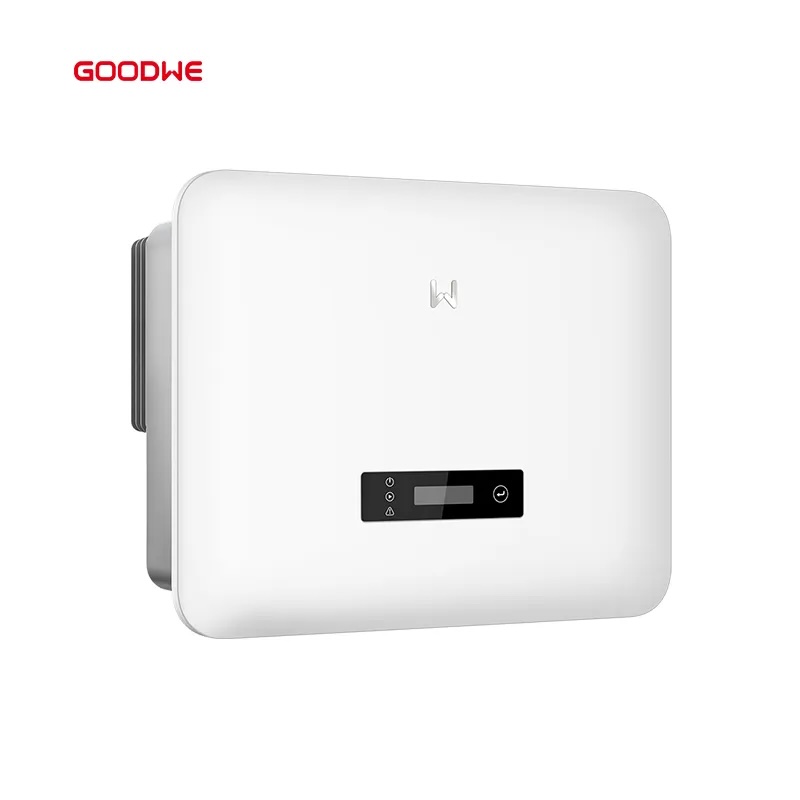

GoodWe 30KW 3-Phase ON-GRID Solar Inverter (GW30K-SDT-C30)
Overview
Harness the power of the sun efficiently and reliably with the GoodWe 30KW 3-Phase ON-GRID Solar Inverter (GW30K-SDT-C30), a leading solution for commercial and industrial solar projects across Bangladesh. Designed for high performance, durability, and smart energy management, this inverter from GoodWe's acclaimed SDT G2 series is engineered to maximize energy yield and provide stable grid connection. Whether you're powering a factory, a large office building, or a commercial complex, the GW30K-SDT-C30 offers an unparalleled combination of advanced technology, robust protection, and user-friendly features, making it an ideal choice for the growing solar market in Bangladesh.
This 30kW powerhouse is optimized for seamless integration with the national grid, ensuring that your solar energy system operates at peak efficiency, reducing electricity bills, and contributing to a sustainable future. With its intelligent monitoring capabilities and high conversion efficiency, the GoodWe GW30K-SDT-C30 stands out as a smart investment for businesses looking to embrace renewable energy in Bangladesh.
Key Features & Benefits
The GoodWe GW30K-SDT-C30 inverter is packed with features designed to deliver superior performance and reliability, making it a top choice for solar installations in Bangladesh:
- High Efficiency: Boasting a maximum efficiency of 98.7% and a Euro efficiency of 98.3%, this inverter ensures maximum power generation from your solar panels, translating into greater savings and faster ROI for your project in Bangladesh.
- Multiple MPPTs: Equipped with 3 independent Maximum Power Point Trackers (MPPTs), the GW30K-SDT-C30 allows for flexible system design and optimized energy harvesting, even under challenging conditions like partial shading or varying panel orientations. Each MPPT can handle multiple strings, ensuring optimal performance across diverse arrays.
- Wide MPPT Voltage Range: With an impressive MPPT voltage range of 200V to 1000V, the inverter can start generating power earlier in the morning and continue later in the evening, extending operational hours and increasing daily energy yield.
- Robust & Durable Design: Featuring an IP65 ingress protection rating, the inverter is fully protected against dust and water jets, making it suitable for outdoor installation in the diverse climatic conditions found across Bangladesh. Its robust construction ensures long-term reliability.
- Smart Monitoring & Communication: Integrated Wi-Fi module comes standard, enabling real-time monitoring of your solar system's performance via the GoodWe SEMS Portal. Optional Ethernet or GPRS modules are also available for enhanced connectivity, providing comprehensive data and insights directly to your smartphone or computer. This feature is crucial for effective solar management in Bangladesh.
- Advanced Safety Protections: The GW30K-SDT-C30 includes comprehensive protection features such as DC reverse polarity protection, AC short circuit protection, overcurrent protection, overvoltage protection, insulation resistance detection, and integrated Type II surge protection for both DC and AC sides. It also includes anti-islanding protection, ensuring grid safety.
- Compact & Lightweight: Despite its powerful output, the inverter maintains a relatively compact size (517 x 452 x 220 mm) and a manageable weight (26 kg), simplifying installation and reducing logistical costs for projects anywhere in Bangladesh.
- Low Noise Operation: Operating at a noise level of less than 30 dB, the inverter runs quietly, making it suitable for installations near occupied spaces without causing disturbance.
- User-Friendly Interface: An intuitive LCD display provides easy access to real-time operational data, fault codes, and system parameters, allowing for quick checks and troubleshooting.
Advanced Technology for Optimal Performance
The GoodWe GW30K-SDT-C30 leverages cutting-edge technology to deliver superior performance for your on-grid solar system in Bangladesh. Its advanced MPPT algorithms are designed to quickly track the maximum power point of the solar array, even during rapidly changing weather conditions, ensuring consistent and high energy production. The inverter's transformerless topology contributes to its high efficiency and compact design, while its precise grid current control ensures stable and compliant power injection into the utility grid.
With its high power density and excellent thermal management, the GW30K-SDT-C30 maintains optimal performance even in high ambient temperatures, a common challenge in many parts of Bangladesh. This attention to detail in engineering ensures that your investment in solar energy continues to pay dividends year after year.
Robust Protection & Safety
Safety is paramount for any electrical installation, and the GoodWe GW30K-SDT-C30 excels in this regard. It integrates multiple layers of protection to safeguard the inverter, the solar array, and the connected grid. Key safety features include:
- DC Reverse Polarity Protection: Prevents damage from incorrect wiring of DC input strings.
- AC Short Circuit Protection: Protects the inverter from damage due to short circuits on the AC output side.
- Overcurrent and Overvoltage Protection: Safeguards the system against abnormal current and voltage fluctuations.
- Insulation Resistance Detection: Monitors the insulation integrity of the DC side, enhancing safety.
- Integrated Surge Protection (Type II): Provides robust protection against lightning strikes and power surges on both DC and AC inputs.
- Anti-Islanding Protection: Automatically disconnects the inverter from the grid in the event of a grid power failure, ensuring the safety of utility workers.
These comprehensive safety measures ensure that the GoodWe GW30K-SDT-C30 is a reliable and secure choice for solar projects across Bangladesh.
Seamless Monitoring & Communication
Staying informed about your solar system's performance is made easy with the GoodWe GW30K-SDT-C30. The built-in Wi-Fi module allows for effortless connection to the GoodWe SEMS Portal, a free online platform that provides real-time data, historical performance, and diagnostic tools. Users in Bangladesh can access this information from anywhere via a web browser or the dedicated mobile app.
Key monitoring features include:
- Real-time power output and energy generation.
- Detailed daily, monthly, and yearly performance reports.
- Fault notifications and troubleshooting assistance.
- Remote firmware upgrades and parameter settings.
For installations requiring more robust connectivity, optional Ethernet and GPRS modules are available, providing flexible communication solutions tailored to the specific needs of your project in Bangladesh.
Technical Specifications
Below is a detailed table of the GoodWe 30KW 3-Phase ON-GRID Solar Inverter (GW30K-SDT-C30) specifications:
| Parameter |
Specification |
| Input (DC) |
| Max. DC Input Power |
45000 W |
| Max. DC Input Voltage |
1100 V |
| MPPT Voltage Range |
200 ~ 1000 V |
| Min. DC Input Voltage / Start-up Voltage |
180 V / 200 V |
| Nominal DC Input Voltage |
600 V |
| Max. Input Current (MPPT1 / MPPT2 / MPPT3) |
26 A / 26 A / 26 A |
| Max. Short Circuit Current (MPPT1 / MPPT2 / MPPT3) |
32.5 A / 32.5 A / 32.5 A |
| Number of MPPTs |
3 |
| Strings per MPPT |
2 / 2 / 2 |
| Output (AC) |
| Rated AC Output Power |
30000 W |
| Max. AC Output Power (Apparent) |
33000 VA |
| Max. AC Output Current |
47.7 A |
| Nominal AC Voltage |
3/N/PE, 230 V / 400 V |
| AC Voltage Range |
180 V ~ 270 V (L-N) |
| Nominal AC Frequency |
50 Hz / 60 Hz |
| AC Frequency Range |
45 ~ 55 Hz / 55 ~ 65 Hz |
| Power Factor |
~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| THDi |
<3% (at nominal power) |
| AC Connection Type |
3W+N+PE or 3W+PE |
| Efficiency |
| Max. Efficiency |
98.7% |
| Euro Efficiency |
98.3% |
| Protection |
| DC Reverse Polarity Protection |
Yes |
| AC Short Circuit Protection |
Yes |
| Output Overcurrent Protection |
Yes |
| Output Overvoltage Protection |
Yes |
| Insulation Resistance Detection |
Yes |
| Surge Protection (DC/AC) |
Type II / Type II |
| Anti-Islanding Protection |
Yes |
| Residual Current Monitoring Unit (RCMU) |
Yes |
| General Data |
| Dimensions (W x H x D) |
517 x 452 x 220 mm |
| Weight |
26 kg |
| Topology |
Transformerless |
| Self-Consumption (Night) |
<1 W |
| Operating Ambient Temperature Range |
-30°C to 60°C |
| Relative Humidity |
0 ~ 95% (non-condensing) |
| Ingress Protection Rating |
IP65 |
| Noise Emission |
<30 dB |
| Cooling Concept |
Natural Convection |
| Display |
LCD |
| Communication Interfaces |
Wi-Fi (Standard), RS485 (Optional), Ethernet (Optional), GPRS (Optional) |
| Warranty |
5 Years (Standard, extendable) |
Ideal Applications in Bangladesh
The GoodWe 30KW 3-Phase ON-GRID Solar Inverter (GW30K-SDT-C30) is perfectly suited for a wide range of commercial and industrial applications across Bangladesh, including:
- Factories and Manufacturing Plants: Significantly reduce operational electricity costs by generating clean energy.
- Commercial Buildings and Offices: Power large office complexes, shopping malls, and institutional buildings with sustainable energy.
- Educational Institutions: Universities, colleges, and large schools can benefit from reduced utility bills and demonstrate commitment to sustainability.
- Agricultural Facilities: Power large farms, cold storage units, and processing centers, especially in areas with unstable grid supply.
- Government Projects: Ideal for public buildings and infrastructure projects aiming for energy independence and lower carbon footprint.
Its robust design and high efficiency make it a reliable solution for the demanding energy needs of Bangladesh's growing economy.
Why Choose GoodWe GW30K-SDT-C30 for Your Project in Bangladesh?
Choosing the GoodWe GW30K-SDT-C30 means investing in a future-proof solar solution that offers exceptional value. GoodWe is a globally recognized brand known for its innovation and quality in the solar industry. For the Bangladesh market, this inverter provides:
- Proven Reliability: GoodWe inverters have a strong track record of performance in diverse conditions, ensuring your system operates smoothly for years.
- Cost-Effectiveness: High efficiency translates to more energy production and quicker payback on your investment. When looking for a solar inverter price in Bangladesh, the GW30K-SDT-C30 offers competitive value.
- Local Support: With a growing presence and network of distributors in Bangladesh, you can expect accessible technical support and service.
- Compliance: Designed to meet international and local grid connection standards, ensuring seamless integration with the Bangladeshi power grid.
Availability & Price in Bangladesh
The GoodWe 30KW 3-Phase ON-GRID Solar Inverter (GW30K-SDT-C30) is widely available through authorized distributors and solar solution providers across Bangladesh. You can find this high-performance GoodWe inverter in major cities like Dhaka, Chittagong, Sylhet, and Khulna, as well as through reputable online channels offering delivery in Bangladesh.
For the most competitive GoodWe 30KW 3-Phase ON-GRID Solar Inverter price in Bangladesh, it is recommended to contact authorized dealers or request a quote from solar system integrators. While prices may vary based on market conditions, package deals, and installation services, the GoodWe GW30K-SDT-C30 offers excellent value for its advanced features and reliability. Many suppliers offer options for delivery in Bangladesh directly to your project site. To find a supplier near me in Bangladesh, a quick online search or contacting GoodWe's regional representatives would be beneficial.
Installation & Maintenance Tips
For optimal performance and longevity of your GoodWe GW30K-SDT-C30 inverter in Bangladesh, consider these tips:
- Professional Installation: Always ensure installation is carried out by certified and experienced solar technicians to comply with safety standards and warranty requirements.
- Optimal Placement: Install the inverter in a shaded, well-ventilated area to prevent overheating, although its IP65 rating allows for outdoor placement. Ensure adequate clearance around the unit for proper airflow.
- Regular Monitoring: Utilize the GoodWe SEMS Portal to regularly monitor performance. Early detection of anomalies can prevent potential issues.
- Cleanliness: Keep the inverter free from dust and debris, especially on cooling fins, to maintain efficient heat dissipation.
- Routine Checks: Periodically inspect wiring and connections for any signs of wear or damage.
Warranty & Support
The GoodWe 30KW 3-Phase ON-GRID Solar Inverter (GW30K-SDT-C30) comes with a standard 5-year product warranty, demonstrating GoodWe's confidence in its durability and performance. This warranty can often be extended for up to 10 or 15 years through authorized partners, providing long-term peace of mind for your investment in Bangladesh. GoodWe also offers robust technical support and customer service through its global network and local partners, ensuring prompt assistance whenever needed.
