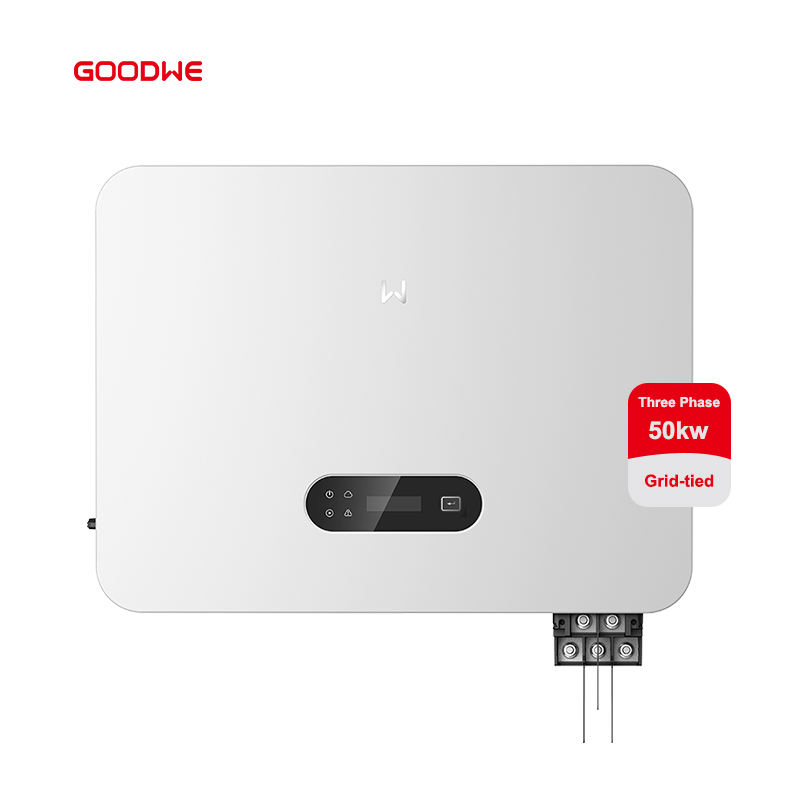

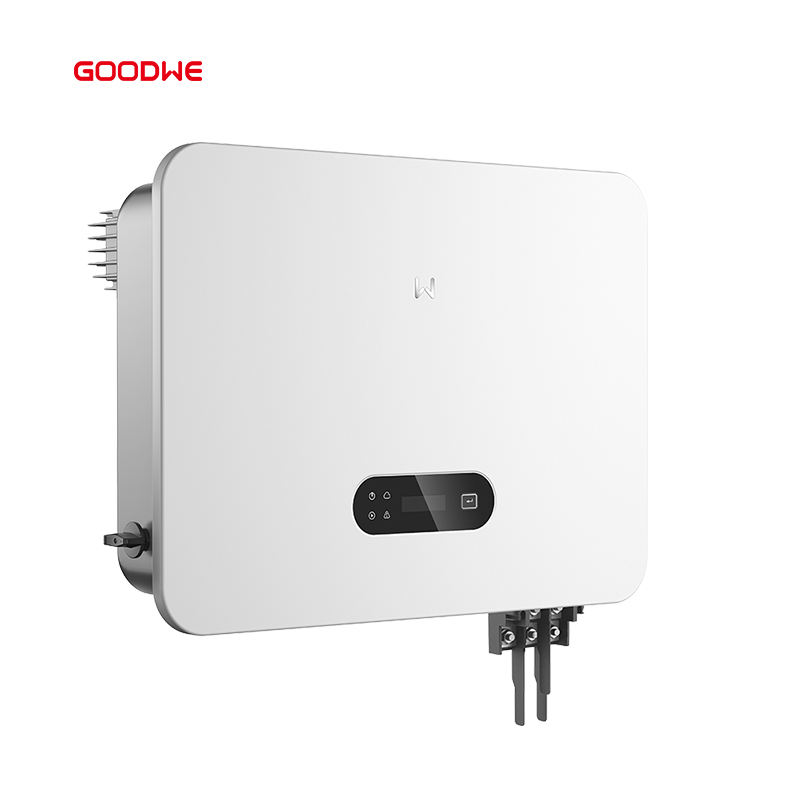

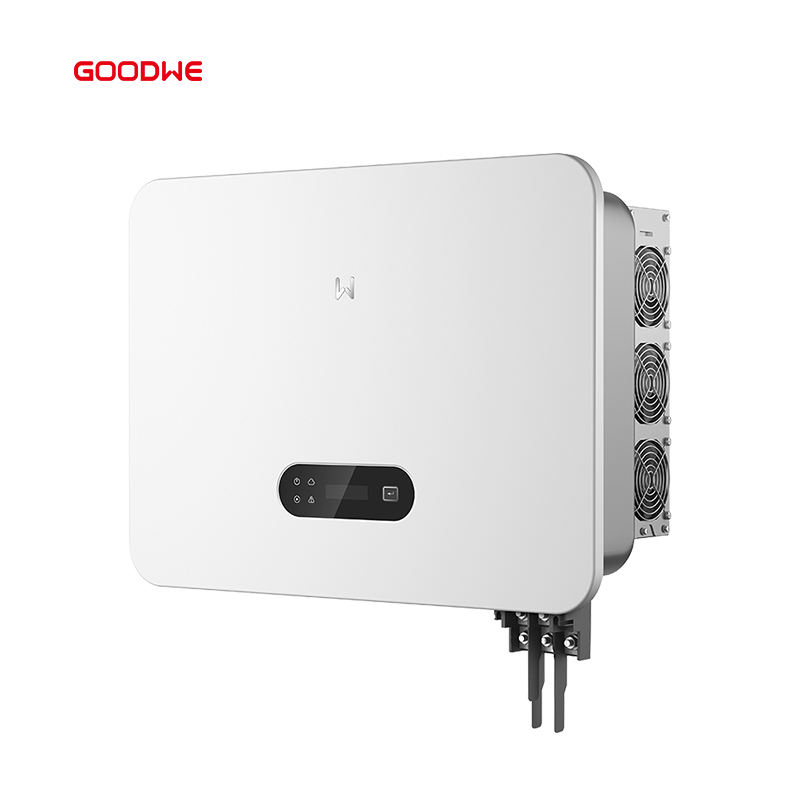

GoodWe 50KW 3-Phase ON-GRID Solar Inverter (GW50K-SDT-C30) – Powering Bangladesh's Sustainable Future
Step into the future of energy independence and sustainability with the GoodWe 50KW 3-Phase ON-GRID Solar Inverter, model GW50K-SDT-C30. Engineered for excellence and designed for high-performance commercial and industrial solar installations, this robust inverter is a cornerstone for maximizing energy harvest and ensuring grid stability. For businesses, factories, and large institutions across Bangladesh looking to significantly reduce electricity costs and embrace green energy, the GoodWe GW50K-SDT-C30 offers unparalleled efficiency, reliability, and smart grid functionality.
As the demand for renewable energy solutions grows exponentially in Bangladesh, the GoodWe 50KW inverter stands out as a premium choice. It's built to withstand diverse environmental conditions while delivering consistent, high-yield power generation, making it an ideal investment for the Bangladesh market. Discover the best price in Bangladesh for this cutting-edge solar inverter and transform your energy consumption today.
Key Features of GoodWe GW50K-SDT-C30
The GoodWe GW50K-SDT-C30 is packed with advanced features that set it apart in the competitive solar inverter landscape. These features are meticulously designed to optimize performance, enhance safety, and provide seamless integration with the grid.
- High Power Output (50KW): Delivers a substantial 50 kilowatts of clean, reliable electricity, perfect for large-scale commercial and industrial applications.
- 3-Phase Grid-Tied Operation: Seamlessly integrates with 3-phase power systems, ensuring stable and efficient power injection into the national grid in Bangladesh.
- 4 Independent MPPTs (Maximum Power Point Trackers): Equipped with four MPPTs, this inverter intelligently optimizes power extraction from different solar array orientations or module types, significantly boosting overall energy yield, especially in complex rooftop installations common in Bangladesh.
- Exceptional Efficiency: Boasting a maximum efficiency of 98.6% and a European efficiency of 98.2%, the GW50K-SDT-C30 minimizes energy loss, converting more solar power into usable electricity.
- Robust & Durable Design (IP65): With an IP65 rating, the inverter is fully protected against dust ingress and low-pressure water jets, making it suitable for outdoor installation in various weather conditions prevalent across Bangladesh.
- Smart Forced Air Cooling: An intelligent cooling system ensures optimal operating temperatures, enhancing the inverter's lifespan and maintaining peak performance even during hot Bangladeshi summers.
- Advanced Safety Protections: Features comprehensive protection mechanisms including DC reverse polarity protection, AC short-circuit protection, AC overcurrent protection, surge protection (Type II for DC & AC), ground fault monitoring, and anti-islanding protection, ensuring the safety of your system and property.
- Integrated Monitoring & Communication: Comes with standard RS485 communication, with optional Wi-Fi or GPRS modules available. This allows for real-time performance monitoring and remote troubleshooting via GoodWe's SEMS Portal, accessible from anywhere in Bangladesh.
- User-Friendly Interface: An intuitive LCD display and LED indicators provide easy access to operational data and status updates directly on the unit.
- Wide MPPT Voltage Range: A broad MPPT voltage range (200-1000V) allows for greater flexibility in system design and ensures optimal performance across varying light conditions.
Benefits of Choosing GoodWe GW50K-SDT-C30 for Your Project in Bangladesh
Investing in the GoodWe 50KW ON-GRID Solar Inverter brings a multitude of benefits for businesses and institutions in Bangladesh:
- Maximized ROI: High efficiency and 4 MPPTs ensure you get the most out of your solar panels, leading to faster payback periods and higher returns on investment.
- Significant Energy Savings: Generate a substantial portion of your electricity needs from solar, drastically reducing your monthly electricity bills and insulating your business from rising energy costs in Bangladesh.
- Reliable & Stable Power: GoodWe's proven technology ensures consistent power generation and stable grid integration, contributing to a reliable power supply for your operations.
- Long-Term Durability: The robust IP65 design and smart cooling system guarantee a long operational lifespan, even in challenging environmental conditions.
- Enhanced System Monitoring: Remote monitoring capabilities provide peace of mind, allowing you to track performance and address potential issues proactively.
- Environmental Contribution: By utilizing solar energy, your organization contributes directly to reducing carbon emissions and promoting a greener, more sustainable Bangladesh.
- Compliance & Safety: Adheres to international safety and grid codes, ensuring your installation meets all necessary standards.

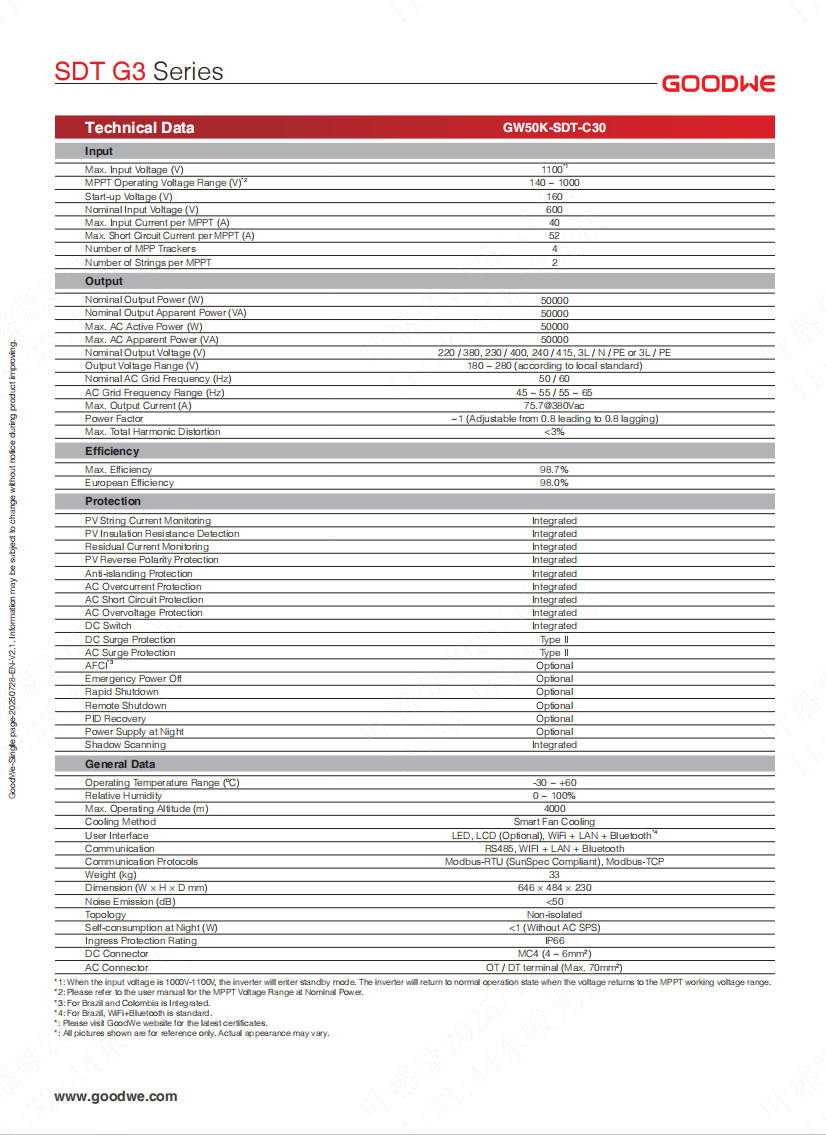

GoodWe GW50K-SDT-C30 Technical Specifications
Below is a detailed table outlining the technical specifications of the GoodWe 50KW 3-Phase ON-GRID Solar Inverter (GW50K-SDT-C30). These real values provide a comprehensive overview of its capabilities.
| Parameter |
Specification |
| Input (DC) |
| Max. DC Input Power |
65000 W |
| Max. DC Input Voltage |
1100 V |
| MPPT Voltage Range |
200 ~ 1000 V |
| Start-up Voltage |
200 V |
| Nominal Input Voltage |
620 V |
| Max. Input Current per MPPT |
26 A |
| Max. Short Circuit Current per MPPT |
32 A |
| Number of MPPTs |
4 |
| Strings per MPPT |
2 / 2 / 2 / 2 (Total 8) |
| Output (AC) |
| Rated AC Output Power |
50000 W |
| Max. AC Output Power |
55000 VA |
| Max. AC Output Current |
80 A |
| Nominal AC Voltage |
3/N/PE, 230/400 V (or 3/PE, 400 V) |
| AC Grid Frequency |
50 Hz / 60 Hz |
| Power Factor |
0.8 leading ~ 0.8 lagging |
| THDi |
<3% |
| Efficiency |
| Max. Efficiency |
98.6% |
| European Efficiency |
98.2% |
| Protection |
| DC Reverse Polarity Protection |
Yes |
| AC Short-Circuit Protection |
Yes |
| AC Overcurrent Protection |
Yes |
| Surge Protection (DC/AC) |
Type II / Type II |
| Ground Fault Monitoring |
Yes |
| Grid Monitoring |
Yes |
| Anti-Islanding Protection |
Yes |
| General Data |
| Dimensions (W x H x D) |
510 x 660 x 240 mm |
| Weight |
49 kg |
| Topology |
Transformerless |
| Operating Temperature Range |
-30°C ~ 60°C |
| Relative Humidity |
0 ~ 95% (non-condensing) |
| Ingress Protection |
IP65 |
| Cooling |
Smart Forced Air Cooling |
| Display |
LCD & LED indicators |
| Communication Interfaces |
RS485, Wi-Fi / GPRS (Optional) |
| Warranty |
Standard 5 Years (Extendable) |
Usage & Installation Considerations
The GoodWe GW50K-SDT-C30 is designed for professional installation in commercial and industrial settings. Due to its high power output and grid-tied nature, it is crucial that installation is performed by certified solar technicians in compliance with local electrical codes and grid regulations in Bangladesh. Proper site assessment, cable sizing, grounding, and integration with the existing electrical infrastructure are vital for safe and optimal performance. Regular monitoring via the GoodWe SEMS Portal is recommended to ensure the system is always operating at peak efficiency.
Availability and Price of GoodWe GW50K-SDT-C30 in Bangladesh
The GoodWe 50KW 3-Phase ON-GRID Solar Inverter (GW50K-SDT-C30) is readily available through authorized distributors and reputable solar solution providers across Bangladesh. We are committed to offering the most competitive GoodWe GW50K-SDT-C30 price in Bangladesh, ensuring you receive genuine products with full manufacturer warranty and local support. Whether you are located in Dhaka, Chittagong, Sylhet, or any other region, delivery in Bangladesh can be arranged to your project site. For an accurate quote and to inquire about availability near me in Bangladesh, please contact our sales team. We strive to provide the best solar inverter price in Bangladesh without compromising on quality or service.
The price of the GoodWe GW50K-SDT-C30 typically ranges from ৳420,000 to ৳470,000, depending on the supplier, warranty terms, and any additional services like installation or extended monitoring packages. For the best deal and reliable after-sales support, always purchase from trusted vendors in the Bangladesh market.
Why Choose GoodWe for Your Solar Project in Bangladesh?
GoodWe is a globally recognized, award-winning manufacturer of PV inverters and energy storage solutions. Their commitment to innovation, quality, and customer service has made them a leading brand worldwide. By choosing the GoodWe GW50K-SDT-C30, you're not just buying an inverter; you're investing in a reliable, high-performance solution backed by a company with a strong international presence and a growing footprint in the Bangladesh solar sector. Experience superior energy conversion, robust construction, and intelligent monitoring capabilities that make GoodWe an excellent choice for powering your sustainable future in Bangladesh.
