Growatt MIN5000TL-X 5kW On-Grid Inverter Price in Bangladesh
Harness the power of the sun efficiently and reliably with the Growatt MIN5000TL-X 5kW On-Grid Inverter, now readily available in Bangladesh. Engineered for residential and small commercial solar systems, this state-of-the-art inverter offers exceptional performance, robust reliability, and intelligent monitoring capabilities. It's the ideal choice for homeowners and businesses looking to maximize their solar energy production and reduce electricity bills across Bangladesh.
The Growatt MIN5000TL-X stands out in the Bangladesh market for its compact design, high efficiency, and advanced safety features. As a transformerless, single-phase inverter, it seamlessly converts DC power from your solar panels into AC power for your home or the national grid. With its dual MPPTs, it ensures optimal energy harvesting even from solar arrays with varying orientations or shading conditions, making it a perfect fit for diverse rooftop installations in Bangladesh.
Overview
The Growatt MIN5000TL-X is a cutting-edge 5kW on-grid solar inverter designed to deliver peak performance and reliability. As part of Growatt's renowned MIN series, it combines a sleek, lightweight design with powerful functionality, making installation and maintenance remarkably easy. This inverter is built to withstand various environmental conditions, featuring an IP65 protection rating, ensuring long-term operation in Bangladesh's climate. Its high maximum efficiency of 98.4% means more of the solar energy generated is converted into usable electricity, providing excellent value for your investment.
Integrating seamlessly with smart monitoring systems, the Growatt MIN5000TL-X allows users to track their system's performance in real-time via a mobile app or web portal. This feature is crucial for ensuring your solar investment operates at its best, providing peace of mind and control over your energy generation. For those searching for a reliable and efficient 5kW on-grid inverter in Bangladesh, the Growatt MIN5000TL-X offers a compelling solution.
Key Features
The Growatt MIN5000TL-X 5kW On-Grid Inverter is packed with features designed to optimize your solar energy system:
- High Efficiency: Boasting a maximum efficiency of 98.4% and a Euro efficiency of 97.5%, this inverter ensures minimal energy loss during conversion, maximizing your solar power output.
- Dual MPPT Design: Equipped with two Maximum Power Point Trackers (MPPTs), it allows for flexible array design and optimizes energy harvesting from solar panels, even under partial shading or different orientations, a common scenario for many rooftops in Bangladesh.
- Compact and Lightweight: With dimensions of 375mm x 350mm x 160mm and weighing only 10.8 kg, the MIN5000TL-X is easy to handle, transport, and install, reducing installation costs and time.
- IP65 Protection: Its robust IP65-rated casing ensures excellent protection against dust and water ingress, making it suitable for outdoor installation and capable of withstanding Bangladesh's diverse weather conditions.

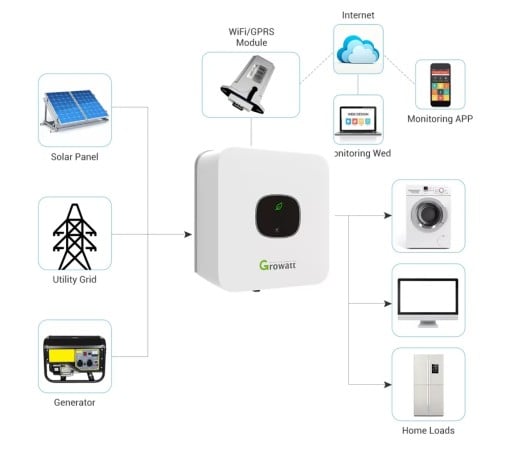

- Smart Monitoring: Integrated Wi-Fi/GPRS connectivity allows for real-time monitoring of your solar system's performance via a user-friendly mobile app (ShinePhone) or web portal (ShineServer), providing detailed insights and alerts.
- Natural Convection Cooling: Fan-less design ensures silent operation and reduces maintenance requirements, enhancing the inverter's lifespan.
- Comprehensive Protections: Features include DC reverse polarity protection, AC overcurrent protection, AC overvoltage protection, ground fault monitoring, and anti-islanding protection, ensuring the safety of both the system and the grid.
- User-Friendly Interface: An intuitive OLED display with touch buttons provides easy access to operating data and system settings.
Why Choose Growatt MIN5000TL-X? (Benefits)
Choosing the Growatt MIN5000TL-X 5kW On-Grid Inverter for your solar project in Bangladesh offers numerous advantages:
- Maximum Energy Yield: Its high efficiency and dual MPPTs ensure that you get the most electricity possible from your solar panels, translating into greater savings on your electricity bills.
- Reduced Operational Costs: The fan-less, natural convection cooling design means fewer moving parts, leading to lower maintenance needs and a longer operational lifespan.
- Enhanced Safety: With multiple layers of protection built-in, the inverter safeguards your solar investment and ensures compliance with grid safety standards, providing peace of mind for users in Bangladesh.
- Flexible Installation: The compact size and lightweight nature simplify installation, offering more flexibility in mounting locations, whether indoors or outdoors.
- Smart Management: Real-time monitoring allows you to keep a close eye on your system's performance, identify any issues promptly, and optimize your energy usage from anywhere.
- Reliable Performance: Growatt is a global leader in solar inverters, known for its commitment to quality and innovation. The MIN5000TL-X reflects this dedication, offering consistent and reliable performance for years to come.
- Excellent Value: Combining advanced features with competitive pricing, the Growatt MIN5000TL-X offers one of the best value propositions for a 5kW on-grid inverter price in Bangladesh.
Technical Specifications
Here are the detailed technical specifications for the Growatt MIN5000TL-X 5kW On-Grid Inverter:
Input Parameters (DC)
- Max. DC Power: 6500W
- Max. DC Voltage: 550V
- Start-up Voltage: 100V
- MPPT Voltage Range: 80V - 500V
- Rated Input Voltage: 360V
- Max. Input Current (MPPT1 / MPPT2): 12.5A / 12.5A
- Max. Short Circuit Current (MPPT1 / MPPT2): 16A / 16A
- Number of MPPTs: 2
- Number of DC Inputs per MPPT: 1
Output Parameters (AC)
- Rated AC Output Power: 5000W
- Max. AC Output Power: 5500VA
- Max. Output Current: 23.9A
- Nominal AC Voltage (Range): 230V (180V-280V)
- AC Grid Frequency (Range): 50Hz / 60Hz (±5Hz)
- Power Factor: 0.8 leading to 0.8 lagging (Adjustable)
- THDi: <3%
- AC Connection: Single Phase
Efficiency
- Max. Efficiency: 98.4%
- Euro Efficiency: 97.5%
General Data
| Parameter |
Value |
| Dimensions (W/H/D) |
375mm x 350mm x 160mm |
| Weight |
10.8 kg |
| Operating Temperature Range |
-25°C to +60°C |
| Noise Emission |
<25 dB |
| Protection Degree |
IP65 |
| Cooling Concept |
Natural Convection |
| Display |
OLED + LED / Touch Button |
| Communication Interfaces |
USB / RS485 / Wi-Fi / GPRS (Optional) |
| Topology |
Transformerless |
| Certifications |
CE, IEC 62109, IEC 61000, G98, VDE-AR-N 4105, EN50549, C10/11, etc. |
| Warranty |
5 Years (Standard, extendable) |
Installation and Usage
The Growatt MIN5000TL-X is designed for straightforward installation by qualified solar technicians. Its compact size and lightweight build make mounting easy, whether on a wall indoors or outdoors. Once installed, the inverter automatically starts converting DC power from your solar panels into usable AC electricity. The integrated OLED display allows for quick checks of operational status and energy production. For a more comprehensive view, the inverter's Wi-Fi module connects to the ShinePhone app and ShineServer platform, giving you instant access to real-time data, historical performance, and remote diagnostics from anywhere in Bangladesh or around the world.
Regular cleaning of solar panels and occasional checks of the inverter's status indicators are generally sufficient for maintenance. The robust IP65 rating ensures the inverter can handle dust and moisture, minimizing environmental impact on its performance.
Safety and Reliability
Safety is paramount in solar energy systems, and the Growatt MIN5000TL-X excels in this regard. It incorporates a range of protection features, including:
- DC Reverse Polarity Protection: Prevents damage from incorrect wiring of DC input.
- AC Short Circuit Protection: Safeguards against electrical faults on the AC side.
- AC Overcurrent Protection: Protects the inverter from excessive current.
- AC Overvoltage Protection: Shields the inverter from grid voltage spikes.
- Ground Fault Monitoring: Detects and alerts about insulation issues.
- Anti-islanding Protection: Automatically disconnects the inverter from the grid during power outages, ensuring safety for utility workers.
- Surge Protection (Type II): Built-in protection against lightning and other power surges for both DC and AC sides.
These features, combined with its durable construction and adherence to international safety standards, make the Growatt MIN5000TL-X a highly reliable and secure choice for solar installations in Bangladesh.
Availability and Price in Bangladesh
The Growatt MIN5000TL-X 5kW On-Grid Inverter is widely available through authorized distributors and solar equipment suppliers across Bangladesh. You can find this advanced inverter in major cities like Dhaka, Chittagong, Sylhet, and Khulna, as well as through various online platforms specializing in solar solutions.
Regarding the Growatt MIN5000TL-X 5kW On-Grid Inverter price in Bangladesh, it typically ranges between ৳60,000 to ৳75,000. The exact price may vary depending on the supplier, warranty terms, and any ongoing promotional offers. We recommend comparing prices from reputable dealers to ensure you get the best deal. Many suppliers also offer installation services and after-sales support, which are crucial considerations for your solar investment.
Where to Buy Growatt MIN5000TL-X Inverter in Bangladesh?
To purchase the Growatt MIN5000TL-X 5kW On-Grid Inverter in Bangladesh, it's best to contact authorized dealers and reputable solar energy companies. These suppliers can provide genuine products, valid warranties, and expert installation services. You can search online for "Growatt inverter Bangladesh" or "solar inverter near me in Bangladesh" to find local distributors. Ensure the vendor provides a manufacturer's warranty for peace of mind. Many companies offer delivery in Bangladesh, making it convenient to acquire this high-quality inverter no matter your location.
When looking for the best price in Bangladesh, consider requesting quotes from multiple vendors. Also, inquire about package deals that might include solar panels, mounting structures, and installation services for a complete solar solution.
Conclusion
The Growatt MIN5000TL-X 5kW On-Grid Inverter is an outstanding choice for anyone in Bangladesh seeking an efficient, reliable, and intelligent solution for their residential or small commercial solar power system. Its high efficiency, dual MPPTs, compact design, robust protection, and smart monitoring capabilities make it a leader in its class. Investing in this Growatt inverter means investing in a sustainable future, significant electricity bill savings, and dependable performance for years to come. Explore the Growatt MIN5000TL-X in Bangladesh today and take a significant step towards energy independence.
