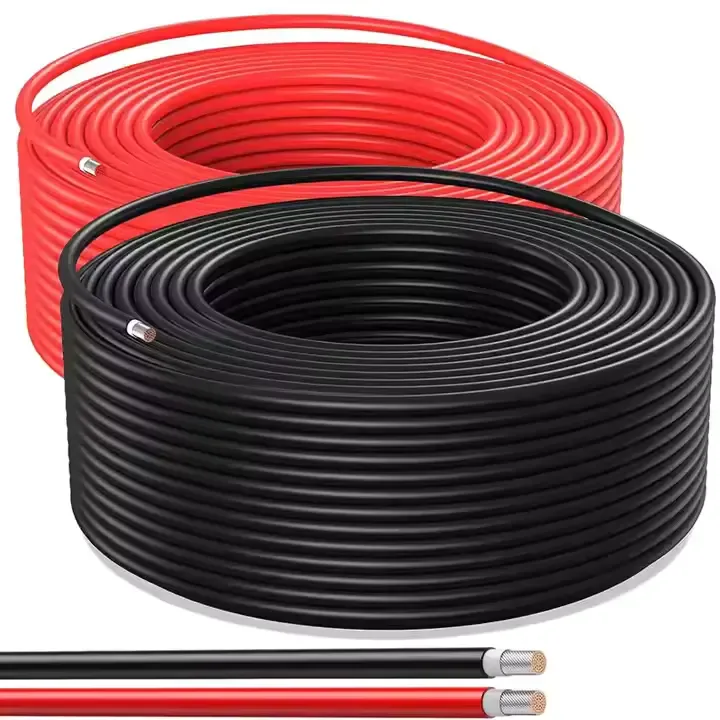

Leader 4RM (4mm²) DC Solar Cable (20 Meter Pack) – Reliable Power for Your Solar System in Bangladesh
Powering your solar energy system efficiently and safely starts with the right cables. The Leader 4RM (4mm²) DC Solar Cable (20 Meter Pack) from Select Brand is engineered to meet the rigorous demands of photovoltaic installations, ensuring optimal performance and longevity for your solar investment. Designed for seamless connectivity between solar panels and inverters, or within the solar array itself, this high-quality cable is an essential component for any successful solar setup in Bangladesh.
Available now at an unbeatable price in Bangladesh of just ৳3500.00 BDT, this 20-meter pack offers both convenience and value. Whether you're setting up a new rooftop solar system, expanding an existing ground-mount array, or working on an off-grid project, the Leader 4RM cable provides the reliability and durability you need.
Overview: Uninterrupted Power Flow for Your Solar System
The Leader 4RM (4mm²) DC Solar Cable is specifically designed for direct current (DC) applications in solar energy systems. Its 4mm² cross-section ensures minimal power loss and efficient transmission of electricity from your solar panels. This 20-meter coil is ideal for various connection lengths, offering flexibility in installation while minimizing waste. Crafted with premium materials, it is built to withstand the harsh environmental conditions common in Bangladesh, including intense UV radiation, extreme temperatures, and moisture. Choosing the Leader 4RM cable means choosing a robust, safe, and high-performance solution for your solar power needs.
Key Features of Leader 4RM (4mm²) DC Solar Cable
- Optimal Conductor Material: Features high-purity tinned copper conductors (Class 5 flexible), offering excellent conductivity and corrosion resistance, crucial for long-term outdoor use.
- Robust Insulation & Sheath: Double-insulated with cross-linked polyethylene (XLPE) and an outer sheath designed for superior UV, ozone, and weather resistance. This ensures the cable remains intact and functional even under direct sunlight and varying weather conditions.
- High Voltage Rating: Rated for up to 1000V DC, making it suitable for a wide range of residential, commercial, and industrial solar photovoltaic systems.
- Extreme Temperature Resilience: Capable of operating reliably in a broad temperature range from -40°C to +90°C, ensuring stable performance through Bangladesh's diverse seasons.
- Flame Retardant & Low Smoke: Engineered with flame-retardant properties and low smoke zero halogen (LSZH) characteristics to enhance safety in case of fire.
- Durable & Flexible: Despite its robust construction, the cable remains flexible, simplifying installation and routing around obstacles without compromising structural integrity.
- Industry Standards Compliant: Manufactured to meet international standards such as TUV Rheinland and EN 50618, guaranteeing quality and safety for the Bangladesh market.
- Convenient Packaging: Supplied in a practical 20-meter pack, reducing waste and making it easier to manage for specific project requirements.
Why Choose Leader 4RM (4mm²) Solar Cable for Your Project in Bangladesh?
Investing in a solar power system is a long-term commitment, and the quality of your components directly impacts its efficiency and lifespan. The Leader 4RM (4mm²) DC Solar Cable stands out for several reasons, making it the preferred choice for solar installers and homeowners across Bangladesh:
- Enhanced Safety: With its high-quality insulation, flame-retardant properties, and robust construction, this cable significantly reduces the risk of electrical faults and fires, ensuring the safety of your property and family.
- Maximum Energy Harvest: The 4mm² cross-section and superior conductivity of tinned copper minimize voltage drop and power loss, ensuring that more of the electricity generated by your solar panels reaches your inverter.
- Longevity & Reliability: Designed to withstand the challenging outdoor environment, including high UV exposure, extreme temperatures, and moisture, the Leader 4RM cable offers exceptional durability and a long service life, reducing the need for frequent replacements.
- Cost-Effectiveness: While offering premium quality, the Leader 4RM (4mm²) DC Solar Cable price in Bangladesh is highly competitive at ৳3500.00 BDT for a 20-meter pack, providing excellent value for money over the lifespan of your solar system.
- Easy Installation: Its flexibility and clear identification (typically red and black for positive and negative DC lines) make installation straightforward for both professional installers and DIY enthusiasts.
Technical Specifications Table
| Specification |
Value |
| Product Name |
Leader 4RM (4mm²) DC Solar Cable |
| Brand |
Select Brand |
| Nominal Cross Section |
4mm² |
| Cable Type |
DC Solar Photovoltaic Cable |
| Conductor Material |
Tinned Copper (Class 5 flexible according to IEC 60228) |
| Insulation Material |
XLPE (Cross-linked Polyethylene) |
| Sheath Material |
UV, Ozone, and Weather Resistant XLPE Compound |
| Rated Voltage |
1000V DC (1.8/1.8kV DC) |
| Test Voltage |
6.5 kV AC, 15 kV DC (5 min) |
| Operating Temperature Range |
-40°C to +90°C |
| Max Conductor Temperature |
+120°C (short circuit: +250°C for 5 sec) |
| Outer Diameter (Approx.) |
5.8 mm |
| Color |
Black (standard, often paired with Red for complete systems) |
| UV Resistance |
Excellent (EN 50618) |
| Ozone Resistance |
Excellent (EN 50618) |
| Flame Retardant |
IEC 60332-1-2 |
| Halogen Free |
IEC 60754-1/2 |
| Low Smoke Emission |
IEC 61034-2 |
| Standards Compliance |
TUV Rheinland, EN 50618, IEC 62930 |
| Length per Pack |
20 Meters |
| Approx. Weight (20m pack) |
1.4 kg |
| Package Dimensions (Approx.) |
25cm x 25cm x 8cm (Coiled) |
| Price in Bangladesh |
৳3500.00 BDT |
Applications of Leader 4RM (4mm²) DC Solar Cable
The versatility and robust design of the Leader 4RM (4mm²) DC Solar Cable make it suitable for a wide array of solar energy applications across Bangladesh:
- Rooftop Solar Installations: Ideal for connecting solar panels on residential and commercial rooftops to the inverter.
- Ground-Mount Solar Farms: Essential for wiring large-scale solar arrays where durability and weather resistance are paramount.
- Off-Grid Solar Systems: Perfect for remote cabins, agricultural pumps, and other off-grid applications requiring reliable DC power transmission.
- Solar Street Lights & Water Pumps: Provides dependable electrical connections for standalone solar-powered infrastructure.
- Battery Bank Connections: Can also be used for connecting solar charge controllers to battery banks in smaller systems.
Installation and Safety Guidelines
For optimal performance and safety, always follow proper installation procedures. Ensure all connections are secure and weatherproof. Use appropriate tools for stripping and crimping. It is recommended to consult with a certified electrician or solar installer, especially for complex systems. Always ensure the system is de-energized before performing any work. The Leader 4RM (4mm²) DC Solar Cable is designed for direct burial or conduit installation, offering flexibility in how it can be laid out.
Availability and Price in Bangladesh
The Leader 4RM (4mm²) DC Solar Cable (20 Meter Pack) is readily available for purchase across Bangladesh. You can find this essential solar component from leading e-commerce platforms and specialized solar equipment suppliers. With a competitive price in Bangladesh of ৳3500.00 BDT, Select Brand ensures that quality solar components are accessible to everyone.
Looking for "Leader 4RM (4mm²) DC Solar Cable near me in Bangladesh"? Many reputable dealers offer nationwide delivery, bringing this high-quality cable directly to your doorstep, no matter where you are in Dhaka, Chittagong, Sylhet, or any other part of the country. Experience seamless online ordering and reliable delivery for your solar cable needs.
Customer Satisfaction
Customers who have chosen the Leader 4RM (4mm²) DC Solar Cable consistently praise its durability, ease of installation, and consistent performance. "This cable was exactly what I needed for my rooftop solar project. The quality is excellent, and the 20-meter pack was very convenient. Definitely the best solar cable price in Bangladesh I found for this quality," says a satisfied customer from Bogura.
Conclusion
For anyone serious about building a reliable and efficient solar power system in Bangladesh, the Leader 4RM (4mm²) DC Solar Cable (20 Meter Pack) from Select Brand is an indispensable choice. Its superior construction, adherence to international safety standards, and robust performance under challenging conditions make it a standout product. Secure your solar investment with a cable that promises durability, efficiency, and peace of mind. Get your Leader 4RM (4mm²) DC Solar Cable today at the best price in Bangladesh and power your future sustainably.
