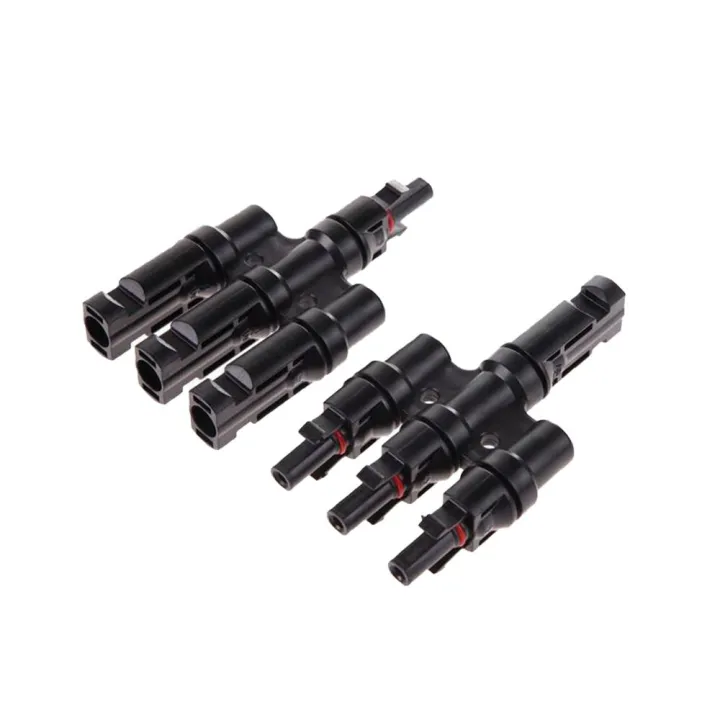

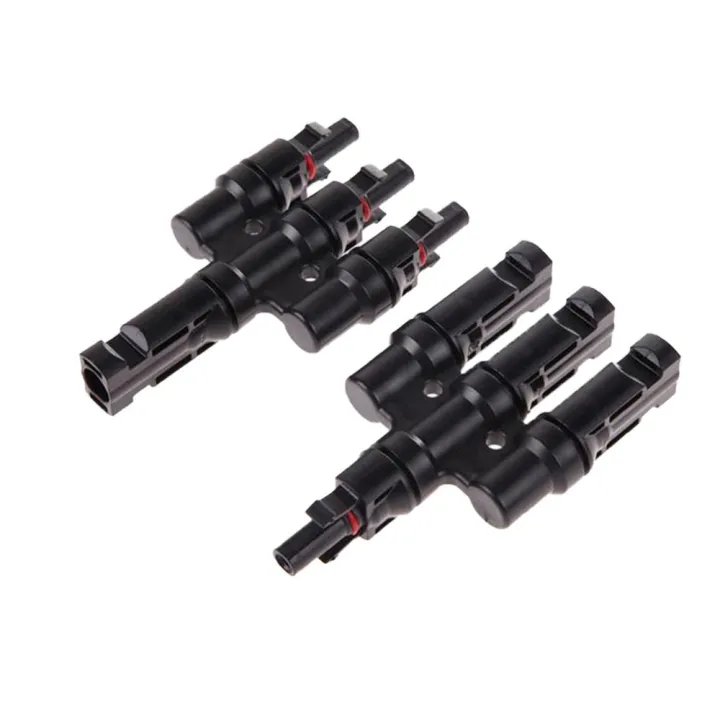

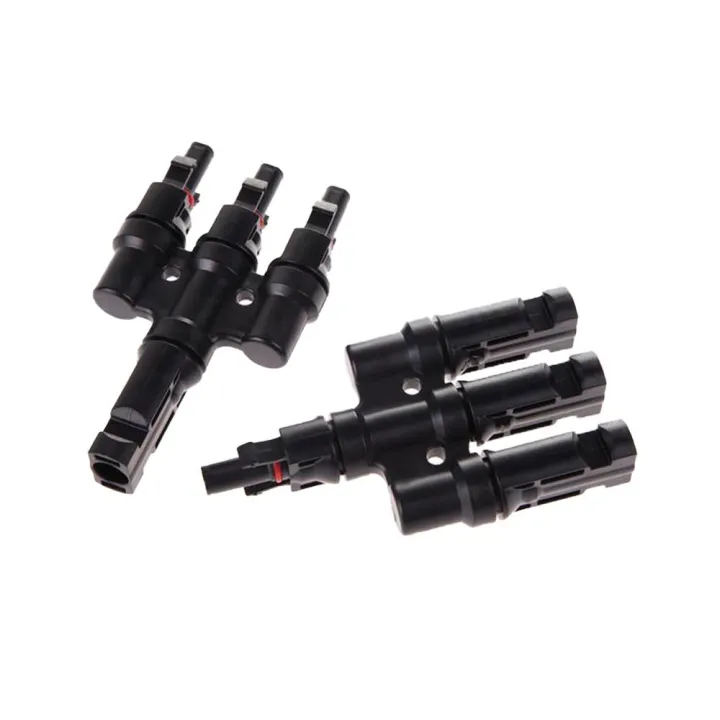

MC4 3-in-1 Solar Panel Branch Connector: Optimize Your Solar System in Bangladesh
Unlock the full potential of your solar power system with the high-performance MC4 3-in-1 Solar Panel Branch Connector. Designed specifically for parallel connection of multiple solar panels, this essential accessory ensures maximum energy harvesting, superior safety, and unparalleled durability. Whether you're setting up a new solar farm or expanding an existing rooftop installation in Dhaka, Chittagong, or any part of Bangladesh, this connector is engineered to meet the demanding requirements of both residential and commercial solar applications.
The MC4 3-in-1 connector allows you to connect three solar panels in parallel to a single string, simplifying wiring and reducing the number of cable runs. This leads to a more efficient and tidy solar array, making it a critical component for anyone serious about renewable energy in Bangladesh. Experience reliable power transmission and robust protection against the elements with this premium solar solution.
Why Choose the MC4 3-in-1 Branch Connector for Your Solar Project in Bangladesh?
In Bangladesh's diverse climate, from humid monsoons to intense summer heat, solar equipment needs to be exceptionally resilient. The MC4 3-in-1 Solar Panel Branch Connector is built to withstand these conditions, offering an IP67 waterproof rating and UV resistance. It's the ideal choice for ensuring your solar investment operates flawlessly year after year, providing consistent power output and peace of mind.
Key Features of the MC4 3-in-1 Solar Panel Branch Connector
Our MC4 3-in-1 Solar Panel Branch Connector is packed with features designed for optimal performance, ease of use, and long-term reliability in the Bangladesh market:
- Parallel Connection Capability: Effortlessly connect up to three solar panels in parallel, consolidating your wiring into a single output string. This design minimizes voltage drop and maximizes current output for your solar inverter.
- Robust Construction: Manufactured from high-quality PPO/PC insulation material and tinned copper contacts, ensuring excellent electrical conductivity and resistance to corrosion, crucial for the humid conditions often found in Bangladesh.
- IP67 Waterproof & Dustproof: With an ingress protection rating of IP67, this connector is completely sealed against dust and can withstand immersion in water up to 1 meter for 30 minutes. This makes it perfectly suited for outdoor installations across Bangladesh, protecting against rain, dust, and moisture.
- UV Resistant: Engineered to resist degradation from prolonged exposure to ultraviolet rays, ensuring the connector's structural integrity and performance remain intact even under Bangladesh's strong sunlight.
- High Voltage & Current Rating: Capable of handling up to 1000V DC (or 1500V DC) and 30A current, making it compatible with a wide range of solar panels and systems commonly used in Bangladesh.
- Quick & Easy Installation: Features a "snap-in" locking mechanism for secure, tool-free connection and disconnection, saving valuable time during installation.
- Wide Cable Compatibility: Designed to accommodate solar cables with cross-sections of 2.5mm², 4mm², and 6mm² (AWG14, AWG12, AWG10), offering flexibility for various solar panel configurations.
- Safety Certified: Meets stringent international safety standards, including UL94-V0 flame retardant rating and Class II safety classification, providing enhanced protection against electrical hazards.
Unmatched Durability for Bangladesh's Climate
The MC4 3-in-1 Solar Panel Branch Connector is specifically chosen for its ability to perform in challenging environments. Its robust PPO/PC housing is not just UV-resistant but also able to withstand significant temperature fluctuations from -40°C to +90°C, making it ideal for the extreme heat and occasional cold snaps experienced in different regions of Bangladesh. The IP67 rating ensures that monsoon rains or coastal humidity will not compromise its electrical integrity, guaranteeing a long operational lifespan for your solar investment.
Seamless Parallel Connection
Simplifying your solar array design is key to efficient installation and maintenance. This 3-in-1 connector streamlines the process of connecting three solar panels in parallel, reducing clutter and potential points of failure. This parallel configuration is particularly beneficial for maintaining power output even if one panel is partially shaded, a common concern in urban areas of Bangladesh with varying building heights and foliage.
Safety and Reliability First
Electrical safety is paramount in any installation. The MC4 3-in-1 connector features a robust locking system that prevents accidental disconnection, even under vibration or strong winds. Its low contact resistance of less than 0.5mΩ ensures minimal energy loss and efficient power transfer. With a high insulation resistance of over 500MΩ, it provides excellent protection against short circuits and electrical leakage, offering peace of mind for solar system owners and installers across Bangladesh.
Detailed Specifications
Here are the complete technical specifications for the MC4 3-in-1 Solar Panel Branch Connector:
| Specification |
Value |
| Connector Type |
MC4 3-in-1 Branch Connector (M/FFF and F/MMM) |
| Rated Voltage |
1000V DC / 1500V DC |
| Rated Current |
30A (for 4mm² cable) |
| Contact Material |
Tinned Copper |
| Insulation Material |
PPO / PC |
| Ingress Protection (IP) Rating |
IP67 |
| Temperature Range |
-40°C to +90°C |
| Flame Class |
UL94-V0 |
| Safety Class |
Class II |
| Contact Resistance |
< 0.5mΩ |
| Insulation Resistance |
> 500MΩ |
| Connection System |
Crimp Connection / Snap-in Locking |
| Cable Compatibility |
2.5mm² (AWG14), 4mm² (AWG12), 6mm² (AWG10) |
| Pull-out Force |
≥ 50N |
| Insertion Force |
≤ 50N |
| Dimensions (approx.) |
108mm x 88mm x 18mm (L x W x H, per set) |
| Weight (approx. per set) |
120g |
Benefits of Using the MC4 3-in-1 Connector
Integrating the MC4 3-in-1 Solar Panel Branch Connector into your solar setup offers numerous advantages:
- Increased System Efficiency: By allowing parallel connection, it helps maintain higher current levels, which is crucial for maximizing power output from your solar panels, especially during periods of partial shading.
- Simplified Wiring: Reduces the complexity and amount of cabling required, leading to cleaner installations and fewer potential points of failure.
- Cost-Effective: Eliminates the need for multiple individual connectors and complex wiring, offering a more economical solution for connecting multiple panels.
- Enhanced Safety: The secure locking mechanism and high-grade insulation materials minimize the risk of electrical faults, ensuring a safe operating environment for your solar system.
- Long-Term Reliability: Built with durable, weather-resistant materials, these connectors are designed for a long service life, reducing maintenance needs and replacement costs.
- Versatile Application: Suitable for a wide range of solar panel brands and sizes, making it a versatile choice for various solar projects across Bangladesh.
How to Use the MC4 3-in-1 Solar Branch Connector
- Prepare Cables: Ensure your MC4 solar cables (2.5mm², 4mm², or 6mm²) are properly stripped and crimped with standard MC4 male and female connectors.
- Identify Polarity: Connect the positive (+) outputs from three separate solar panels to the three female (FFF) inputs of the MC4 3-in-1 male connector.
- Connect Negative Terminals: Connect the negative (-) outputs from the same three solar panels to the three male (MMM) inputs of the MC4 3-in-1 female connector.
- Secure Connections: Push the MC4 connectors firmly until you hear a "click," indicating a secure and watertight lock.
- Connect to Inverter/Charge Controller: The single male output from the 3-in-1 male connector will then connect to the positive input of your inverter or charge controller. Similarly, the single female output from the 3-in-1 female connector will connect to the negative input.
- Verify: Always double-check all connections for security and correct polarity before energizing the system.
MC4 3-in-1 Solar Panel Branch Connector Price in Bangladesh
The MC4 3-in-1 Solar Panel Branch Connector offers excellent value for its superior quality and functionality. In the Bangladesh market, you can expect the price for a high-quality set (one male and one female connector) to range from ৳550 to ৳750. We are committed to providing the best price in Bangladesh for genuine, durable solar accessories. The exact price may vary slightly based on brand, supplier, and current market conditions, but you can always expect competitive pricing and reliable products when you shop with us.
Availability and Delivery in Bangladesh
Searching for "MC4 3-in-1 Solar Panel Branch Connector near me" in Bangladesh? Look no further! Our MC4 3-in-1 Solar Panel Branch Connectors are readily available and can be delivered to your doorstep anywhere in Bangladesh. We offer fast and reliable delivery services to all major cities including Dhaka, Chittagong, Sylhet, Khulna, Rajshahi, and beyond. Whether you're an individual homeowner, an installer, or a large-scale solar project developer, we ensure timely dispatch and delivery. Contact us today to check stock and place your order. We strive to make high-quality solar components accessible across the entire Bangladesh market.
Frequently Asked Questions (FAQs)
Q1: What is the main purpose of an MC4 3-in-1 solar branch connector?
A1: The MC4 3-in-1 solar branch connector is used to connect three solar panels in parallel. This means all three panels output to a single positive and a single negative cable, allowing for higher current output while maintaining the same voltage, which is essential for optimizing specific solar array configurations.
Q2: Can I use this connector for series connections?
A2: No, this specific MC4 3-in-1 branch connector is designed for parallel connections only. For series connections, you would use standard MC4 extension cables to link panels sequentially.
Q3: Is this connector waterproof and suitable for outdoor use in Bangladesh?
A3: Absolutely. The connector boasts an IP67 rating, making it completely waterproof and dustproof. Combined with its UV-resistant housing, it is perfectly suited for harsh outdoor conditions, including the heavy monsoon rains and intense sunlight experienced in Bangladesh.
Q4: What cable sizes are compatible with this MC4 connector?
A4: This MC4 3-in-1 branch connector is compatible with standard solar PV cables ranging from 2.5mm² (AWG14), 4mm² (AWG12), to 6mm² (AWG10).
Q5: How do I ensure a secure connection?
A5: The connectors feature a "snap-in" locking mechanism. When connecting, you should hear an audible click, indicating that the connection is secure and locked into place. Always ensure proper crimping of the MC4 terminals onto your cables for optimal electrical contact and safety.
Q6: Where can I buy the MC4 3-in-1 Solar Panel Branch Connector in Bangladesh?
A6: You can purchase the MC4 3-in-1 Solar Panel Branch Connector directly from our online store or authorized dealers across Bangladesh. We offer nationwide delivery, ensuring you can get this essential component regardless of your location. Search for "MC4 3-in-1 Solar Panel Branch Connector price in Bangladesh" to find our competitive offerings.
