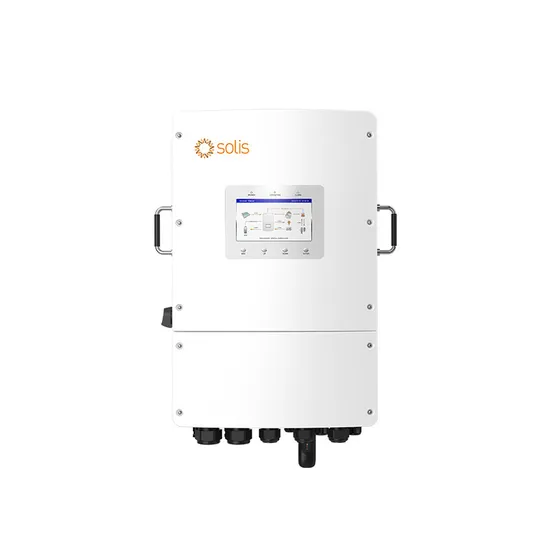

Solis Three Phase Low Voltage ON-GRID HYBRID 10KW (S6-EH3P10K02-NV-YD-L) - Intelligent Energy Solution for Bangladesh
Experience unparalleled energy independence and efficiency with the Solis S6-EH3P10K02-NV-YD-L, a cutting-edge Three Phase Low Voltage ON-GRID HYBRID 10KW inverter. Designed specifically to meet the dynamic energy demands of modern homes and small commercial establishments in Bangladesh, this advanced hybrid inverter seamlessly integrates solar power, battery storage, and grid electricity. It's the ultimate solution for reducing electricity bills, ensuring uninterrupted power, and contributing to a greener future.
The Solis S6-EH3P10K02-NV-YD-L is more than just an inverter; it's a smart energy management system. It intelligently prioritizes energy sources, stores excess solar energy for later use, and provides reliable backup power during grid outages. For those searching for a robust and efficient 10KW hybrid inverter in Bangladesh, or looking for the Solis S6-EH3P10K02-NV-YD-L price in Bangladesh, your search ends here. This model represents the pinnacle of hybrid solar technology, perfectly suited for the unique power landscape of our nation.
Why Choose Solis S6-EH3P10K02-NV-YD-L Hybrid Inverter?
In a country like Bangladesh, where power stability can be a concern and electricity costs are rising, investing in a reliable hybrid solar solution is a smart move. The Solis S6-EH3P10K02-NV-YD-L stands out with its exceptional performance and intelligent features.
Uninterrupted Power Supply
Say goodbye to frustrating power cuts. With its integrated battery management system, the Solis S6-EH3P10K02-NV-YD-L provides seamless transition to battery power in less than 10 milliseconds during a grid outage. This ensures your critical loads, from essential home appliances to office equipment, remain operational without interruption. It's the perfect three-phase hybrid inverter Bangladesh needs for true energy security.
Smart Energy Management
This inverter intelligently manages your energy flow. It prioritizes solar power for immediate consumption, stores excess energy in batteries, and can even feed surplus power back to the grid (where regulations permit), helping you maximize your savings. Its multiple operating modes, including self-consumption, time-of-use, and off-grid backup, allow you to tailor your energy strategy to your specific needs and local utility rates. This intelligent control makes it a leading solar inverter in Bangladesh.
Grid Interaction and Savings
Designed as an on-grid inverter, it allows you to reduce your reliance on the national grid significantly. By consuming your own generated solar power first, you dramatically lower your electricity bills. In some areas, you can even benefit from net metering policies by exporting excess power to the grid, turning your solar system into a revenue generator. Discover the best on-grid inverter price Bangladesh has to offer for such advanced capabilities.
Robust and Reliable Design
Built to withstand diverse environmental conditions, the Solis S6-EH3P10K02-NV-YD-L features an IP65 protection rating, making it suitable for outdoor installation. Its fanless design ensures silent operation and reduces maintenance needs, offering a durable and long-lasting energy solution for your property in Bangladesh.
Key Features of Solis S6-EH3P10K02-NV-YD-L
- 10KW Three-Phase Output: Provides robust power for larger homes and commercial applications with three-phase electrical systems.
- Low Voltage Battery Compatibility: Optimized for 48V Li-Ion batteries, offering flexibility in battery choice and system scalability.
- High Efficiency: Boasts a maximum efficiency of 98.2% (PV to Grid) and 97.5% (Battery to AC), ensuring minimal energy loss and maximum savings.
- Dual MPPT Design: Equipped with two Maximum Power Point Trackers, allowing for flexible solar panel array design and optimized energy harvest even with partial shading or varying orientations.
- Fast Switching Time: Provides an uninterruptible power supply with a transfer time of less than 10ms when switching from grid to battery power.
- Multiple Working Modes: Supports Self-Consumption Mode, Time-of-Use Mode, Off-Grid Backup Mode, and Export Control Mode for versatile energy management.
- Intelligent Battery Management: Features precise charging and discharging control, prolonging battery lifespan and optimizing performance.
- Remote Monitoring & Control: Integrated Wi-Fi/LAN for easy connection to the Solis Cloud platform, allowing real-time monitoring and remote control of your system from anywhere in Bangladesh or the world.
- IP65 Protection: Dust-tight and protected against water jets, ensuring reliable operation in various outdoor conditions.
- Fanless Design: Operates silently with natural convection cooling, making it ideal for residential installations.
- Comprehensive Protections: Includes anti-islanding, overvoltage, short circuit, overcurrent, reverse polarity, and temperature protection for maximum safety.
- Smart Load Management: Can manage critical and non-critical loads to optimize battery usage during outages.
Technical Specifications: Solis S6-EH3P10K02-NV-YD-L
| Input (DC) |
| Max. PV Input Power |
15 kW |
| Max. Input Voltage |
1000 V |
| Rated Voltage |
600 V |
| MPPT Voltage Range |
180-1000 V |
| Start-up Voltage |
180 V |
| No. of MPPTs / Strings per MPPT |
2 / 1 |
| Max. Input Current per MPPT |
16 A |
| Max. Short Circuit Current per MPPT |
24 A |
| Battery |
| Battery Type |
Li-ion (compatible with various brands via CAN/RS485) |
| Battery Voltage Range |
40-60 V |
| Max. Charge/Discharge Current |
200 A |
| Max. Charge/Discharge Power |
10 kW |
| Output (AC - On-Grid) |
| Rated AC Output Power |
10 kW |
| Max. AC Output Power |
11 kVA |
| Rated AC Voltage |
3/N/PE, 220V/380V, 230V/400V |
| Rated AC Frequency |
50 Hz / 60 Hz |
| Max. AC Output Current |
16 A |
| Power Factor |
>0.99 (adjustable from 0.8 leading to 0.8 lagging) |
| Output (AC - Backup/Off-Grid) |
| Max. AC Output Power (Backup) |
10 kW |
| Rated AC Voltage (Backup) |
3/N/PE, 220V/380V, 230V/400V |
| Rated AC Frequency (Backup) |
50 Hz / 60 Hz |
| Max. AC Output Current (Backup) |
16 A |
| Switching Time |
< 10 ms |
| Efficiency |
| Max. Efficiency (PV to Grid) |
98.2% |
| Max. Efficiency (Battery to AC) |
97.5% |
| Euro Efficiency |
97.5% |
| General Data |
| Dimensions (H x W x D) |
520 x 420 x 200 mm |
| Weight |
26 kg |
| Protection Degree |
IP65 |
| Operating Temperature Range |
-25°C to +60°C |
| Cooling |
Natural Convection (Fanless) |
| Noise Emission |
< 30 dB |
| Display |
LCD, LED Indicators |
| Communication Interfaces |
Wi-Fi (Standard), LAN (Optional), RS485 (for BMS), USB, Dry Contact |
| Warranty |
5 Years Standard (Extendable to 10 Years) |
Benefits of Solis S6-EH3P10K02-NV-YD-L for Bangladesh
- Significant Electricity Bill Reduction: Harness solar power to drastically cut down your monthly utility expenses.
- Reliable Backup Power: Never face darkness or operational halts during power outages, a common challenge in many parts of Bangladesh.
- Energy Independence: Gain more control over your energy consumption and reduce reliance on an unstable grid.
- Environmental Friendliness: Contribute to a sustainable future by utilizing clean, renewable solar energy, lowering your carbon footprint.
- Long-Term Investment: A durable and efficient system that pays for itself over time through energy savings and increased property value.
- Smart Home Integration: Advanced monitoring capabilities allow for intelligent energy management, adapting to your lifestyle and energy patterns.
- Peace of Mind: With comprehensive safety features and a robust design, enjoy a secure and worry-free power supply.
Ideal Usage Scenarios
The Solis S6-EH3P10K02-NV-YD-L is perfectly suited for a variety of applications across Bangladesh:
- Large Residential Homes: Power an entire household, including air conditioners, water heaters, and other high-demand appliances.
- Small to Medium Businesses: Ensure continuous operation for offices, retail stores, clinics, and workshops, preventing productivity loss due to power cuts.
- Educational Institutions: Provide stable power for schools and colleges, supporting learning environments.
- Agricultural Facilities: Run essential equipment like irrigation pumps and cold storage units reliably.
- Remote Locations: Ideal for areas with unreliable grid access, offering a dependable primary power source.
Installation and Safety
Installation of the Solis S6-EH3P10K02-NV-YD-L should always be performed by certified and experienced solar technicians. Proper grounding, wiring, and adherence to local electrical codes are crucial for safe and efficient operation. Solis provides detailed manuals and support to ensure a smooth setup process. The inverter's built-in protection features actively safeguard against common electrical faults, ensuring the safety of your property and investment.
Availability and Price in Bangladesh
The Solis Three Phase Low Voltage ON-GRID HYBRID 10KW (S6-EH3P10K02-NV-YD-L) is readily available in Bangladesh through authorized distributors and reputable solar solution providers. We strive to offer the best price in Bangladesh for this advanced hybrid inverter, ensuring you get excellent value for your investment. While prices may vary slightly based on the supplier and additional services (like installation), you can expect the Solis S6-EH3P10K02-NV-YD-L to be priced competitively, typically ranging from ৳205,000 to ৳225,000 for the unit itself. For the most accurate and up-to-date pricing, including comprehensive installation packages, please contact our sales team or visit our authorized partners. We also offer convenient delivery in Bangladesh to all major cities including Dhaka, Chittagong, Sylhet, Khulna, and beyond. If you are searching for "Solis S6-EH3P10K02-NV-YD-L near me in Bangladesh", our extensive network of partners ensures you'll find a reliable source nearby.
Conclusion
The Solis S6-EH3P10K02-NV-YD-L Three Phase Low Voltage ON-GRID HYBRID 10KW inverter is a game-changer for energy management in Bangladesh. It combines high efficiency, intelligent control, and robust reliability to deliver a superior solar experience. Whether your goal is to reduce electricity bills, achieve energy independence, or ensure uninterrupted power, this Solis inverter provides a comprehensive and sustainable solution. Invest in the future of energy with Solis and transform the way you power your life and business in Bangladesh.
