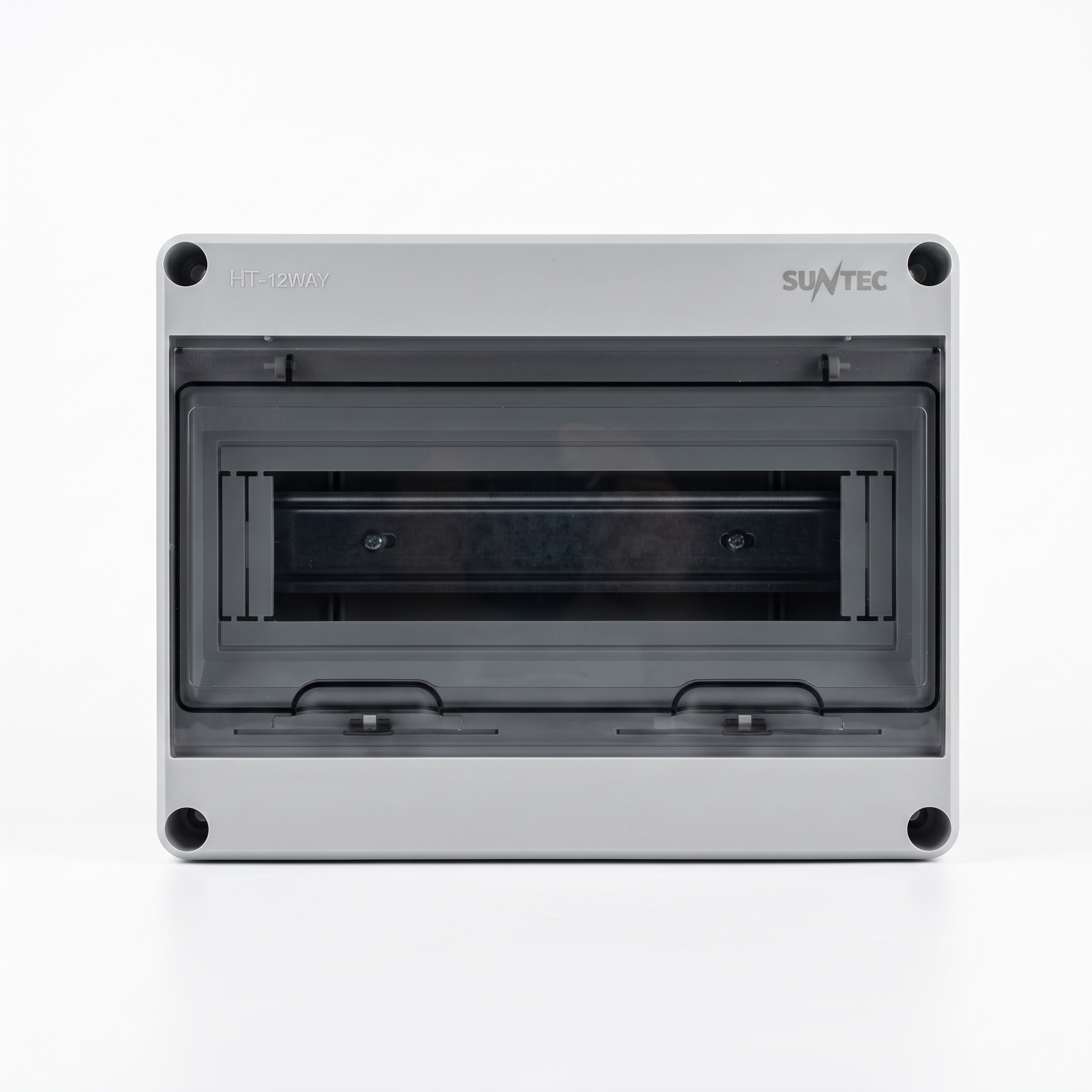

SUNTEC HT-12WAY Combiner Box Price in Bangladesh | Enhance Your Solar System Efficiency
Optimize the performance and safeguard your solar photovoltaic (PV) system with the robust SUNTEC HT-12WAY Combiner Box, now available at an unbeatable price of ৳2399 BDT in Bangladesh. Designed to streamline your solar panel array, this essential accessory combines multiple DC input strings from your solar panels into a single, manageable output, directing it efficiently to your inverter. It acts as the critical interface, ensuring both operational reliability and enhanced safety for your entire solar power setup.
Whether you're setting up a large residential solar system, a commercial rooftop installation, or a small-scale solar farm, the SUNTEC HT-12WAY Combiner Box offers unparalleled protection against overcurrents, short circuits, and lightning surges. Its durable, weather-resistant design makes it perfectly suited for the diverse climatic conditions found across Bangladesh. Invest in the SUNTEC HT-12WAY Combiner Box for a secure, efficient, and long-lasting solar energy solution.
Why Choose the SUNTEC HT-12WAY Combiner Box for Your Solar Project?
In the rapidly growing solar market in Bangladesh, selecting the right components is crucial for system longevity and performance. The SUNTEC HT-12WAY Combiner Box stands out as a high-quality, cost-effective solution for managing up to 12 individual solar PV strings. It simplifies wiring, reduces installation time, and provides centralized protection, making your solar system more reliable and easier to maintain. At a price point of just ৳2399, it offers exceptional value for its advanced features.
Key Features of the SUNTEC HT-12WAY Combiner Box
The SUNTEC HT-12WAY Combiner Box is engineered with a focus on safety, efficiency, and durability, incorporating several key features that make it an indispensable component for any serious solar installation in Bangladesh:
Robust Protection for Your Solar Investment
- 12-String Input Capability: Efficiently combines up to 12 individual DC input strings from your solar panels, optimizing power collection and simplifying wiring.
- Integrated DC Circuit Breakers: Each of the 12 input strings is protected by a dedicated 16A/1000V DC Miniature Circuit Breaker (MCB), providing superior overcurrent and short-circuit protection. This ensures that a fault in one string does not affect the entire system.
- High-Capacity Main DC Breaker: Features a robust 150A/1000V DC main breaker for the combined output, offering comprehensive protection to your inverter and overall system.
- Advanced Surge Protection Device (SPD): Equipped with a Type II DC Surge Protection Device rated at 1000V with a maximum discharge current (Imax) of 40kA. This critical feature safeguards your valuable solar panels and inverter from damaging lightning strikes and transient overvoltages common in Bangladesh's weather patterns.
Superior Performance & Efficiency
- High Voltage Compatibility: Supports DC voltages up to 1000V, making it suitable for a wide range of modern high-voltage solar PV systems.
- Optimized Current Handling: Designed to manage a total output current of up to 180A, ensuring efficient power flow from your solar array to the inverter.
- Reduced System Downtime: With individual string protection, troubleshooting becomes easier, and maintenance can be performed on specific strings without shutting down the entire array.
Easy Installation & Maintenance
- Pre-wired Design: Comes largely pre-wired, significantly reducing installation time and complexity on-site.
- MC4 Compatible Connectors: Features high-quality MC4 compatible connectors for PV string inputs, ensuring secure, waterproof, and easy connections.
- Clear Labeling: Internally and externally labeled components for straightforward wiring and identification, facilitating quick maintenance and troubleshooting.
Durable & Weatherproof Design
- IP65 Rated Enclosure: Constructed from high-grade, UV-resistant polycarbonate (PC) and ABS plastic, the enclosure boasts an IP65 rating. This ensures complete protection against dust ingress and low-pressure water jets from any direction, making it ideal for outdoor installation in Bangladesh's challenging weather conditions, including heavy monsoon rains.
- Wide Operating Temperature Range: Designed to operate reliably in temperatures ranging from -25°C to +60°C, ensuring consistent performance year-round.
- Wall-Mountable Design: Features a sturdy, wall-mountable design for secure and convenient installation.
Detailed Specifications of the SUNTEC HT-12WAY Combiner Box
Here are the complete technical specifications for the SUNTEC HT-12WAY Combiner Box:
| Feature |
Specification |
| Model |
SUNTEC HT-12WAY |
| Type |
DC Solar PV Combiner Box |
| Number of PV Input Strings |
12 |
| Number of MPPT Outputs |
1 |
| Max Input Voltage (Voc) |
1000V DC |
| Max Input Current per String |
15A DC |
| Max Total Output Current |
180A DC |
| Input Disconnector / Protection |
12 x 16A/1000V DC Miniature Circuit Breaker (MCB) |
| Output Disconnector / Protection |
1 x 150A/1000V DC Main Circuit Breaker |
| Surge Protection Device (SPD) |
Type II, 1000V DC, Imax 40kA |
| Enclosure Material |
UV Resistant Polycarbonate (PC) / ABS Plastic |
| IP Rating |
IP65 (Dust-tight and protected against water jets) |
| Operating Temperature Range |
-25°C to +60°C |
| Relative Humidity |
0-95% (Non-condensing) |
| Input Connectors |
MC4 Compatible (12 pairs) |
| Output Cable Glands |
PG Type Glands (e.g., PG29 for main output) |
| Mounting Type |
Wall Mountable |
| Dimensions (L x W x D) |
Approximately 400mm x 320mm x 160mm |
| Weight |
Approximately 4.5 kg |
| Standards Compliance |
IEC 61439, EN 60947 |
| Warranty |
[Please check with Select Brand for specific warranty details] |
Benefits of Using a Solar Combiner Box
Integrating a high-quality combiner box like the SUNTEC HT-12WAY into your solar PV system offers numerous advantages:
- Enhanced Safety: Provides multiple layers of protection against electrical faults, overcurrents, and surges, safeguarding both personnel and equipment.
- Improved System Reliability: Individual string protection ensures that a fault in one string does not bring down the entire array, maintaining power generation from healthy strings.
- Simplified Wiring: Reduces the number of cables running from the solar array to the inverter, making installation cleaner, more organized, and less prone to errors.
- Easier Maintenance & Troubleshooting: Centralized protection and clear access points simplify the process of identifying and resolving issues, minimizing system downtime.
- Optimized Performance: Ensures efficient current collection from all strings, contributing to the overall maximum power point tracking (MPPT) performance of the inverter.
- Extended Equipment Lifespan: By protecting sensitive components like solar panels and inverters from electrical stresses, the combiner box helps extend their operational life.
Ideal Applications for the SUNTEC HT-12WAY Combiner Box
The SUNTEC HT-12WAY Combiner Box is versatile and suitable for a variety of solar energy projects across Bangladesh:
- Large Residential Solar Systems: Perfect for homes with extensive rooftop solar arrays requiring multiple strings.
- Commercial & Industrial Rooftop Installations: Essential for businesses looking to maximize their self-consumption and reduce electricity bills.
- Small to Medium Solar Farms: Provides reliable string management for ground-mounted solar installations.
- Off-Grid Solar Solutions: Enhances the safety and efficiency of stand-alone solar power systems.
- Grid-Tied Solar Systems: Integrates seamlessly into grid-connected setups, ensuring compliance and protection.
Installation and Safety Guidelines
While the SUNTEC HT-12WAY Combiner Box is designed for ease of installation, it is crucial that installation is performed by a qualified electrician or solar technician. Always adhere to local electrical codes and safety regulations. Ensure the system is de-energized before making any connections. Proper grounding and adherence to wiring diagrams are paramount for safe and efficient operation.
SUNTEC HT-12WAY Combiner Box Price in Bangladesh & Availability
The SUNTEC HT-12WAY Combiner Box is available in Bangladesh at an incredibly competitive price of ৳2399 BDT. You can purchase this essential solar accessory directly from Select Brand, your trusted source for high-quality solar products. We offer reliable delivery services across all major cities and rural areas of Bangladesh, ensuring you get your products conveniently and on time.
Looking for a "SUNTEC HT-12WAY Combiner Box near me"? Select Brand provides nationwide delivery, making it accessible wherever you are in Bangladesh. We are committed to offering the best price in Bangladesh for genuine SUNTEC products, backed by excellent customer service.
Customer Reviews & Satisfaction
Customers who have incorporated the SUNTEC HT-12WAY Combiner Box into their solar systems frequently praise its robust build quality, effective protection features, and straightforward installation process. Its reliability and performance contribute significantly to the overall satisfaction with their solar investment, making it a highly recommended choice in the Bangladesh market.
Why Buy from Select Brand?
When you choose to buy the SUNTEC HT-12WAY Combiner Box from Select Brand, you are choosing:
- Authentic Products: We guarantee genuine SUNTEC products with full manufacturer specifications.
- Competitive Pricing: We strive to offer the best SUNTEC HT-12WAY Combiner Box price in Bangladesh at ৳2399.
- Expert Support: Our knowledgeable team is ready to assist you with product information and after-sales support.
- Nationwide Delivery: Fast and secure delivery to your doorstep anywhere in Bangladesh.
- Hassle-Free Shopping: A seamless online shopping experience with secure payment options.
Conclusion
The SUNTEC HT-12WAY Combiner Box is an indispensable component for any efficiently operating and safely protected solar PV system. With its advanced protection features, durable construction, and ease of installation, it offers exceptional value, especially at the attractive price of ৳2399 BDT. Secure your solar investment and optimize its performance by choosing the SUNTEC HT-12WAY Combiner Box from Select Brand today. Ensure your solar system in Bangladesh operates at its peak efficiency and safety for years to come.
