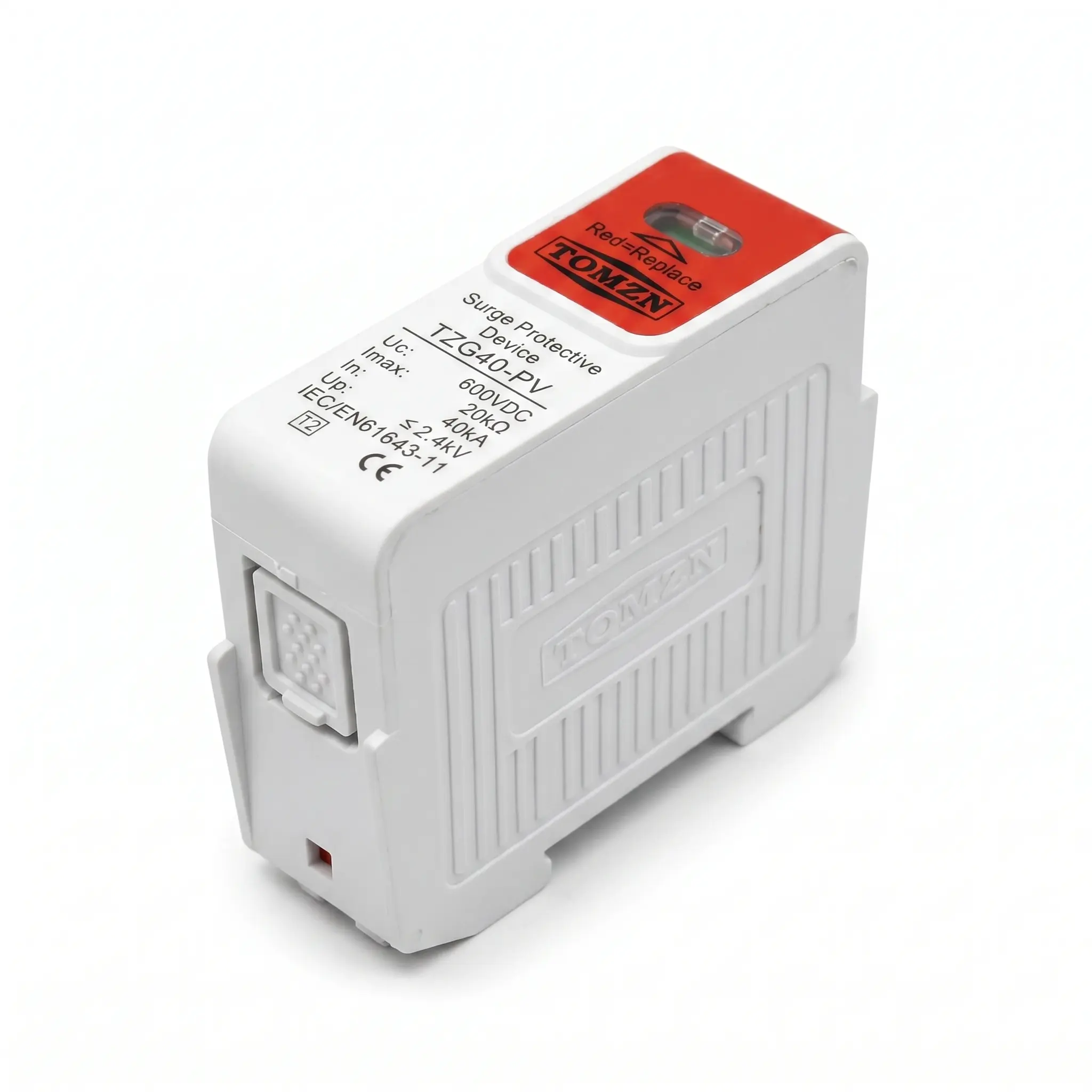

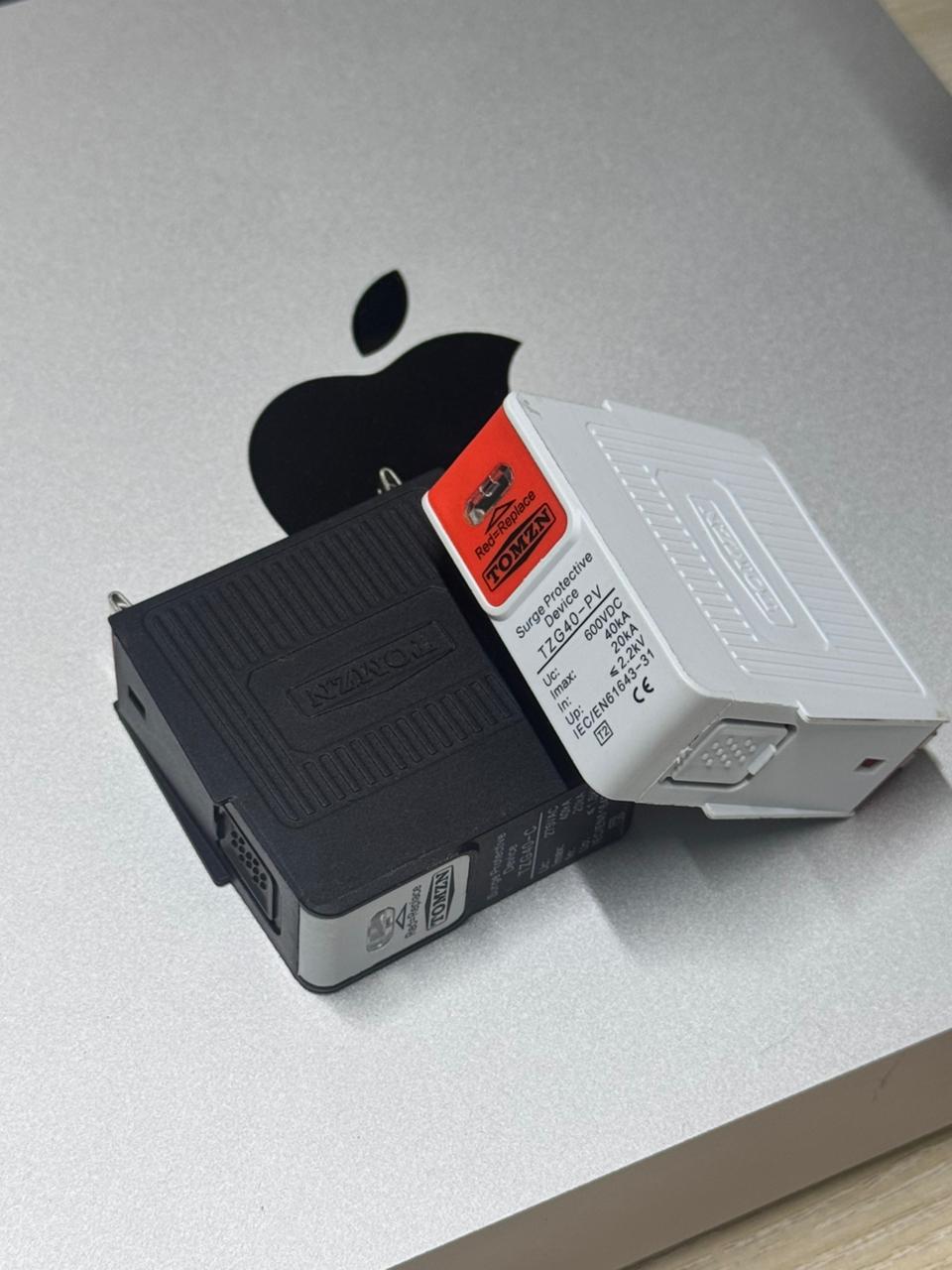

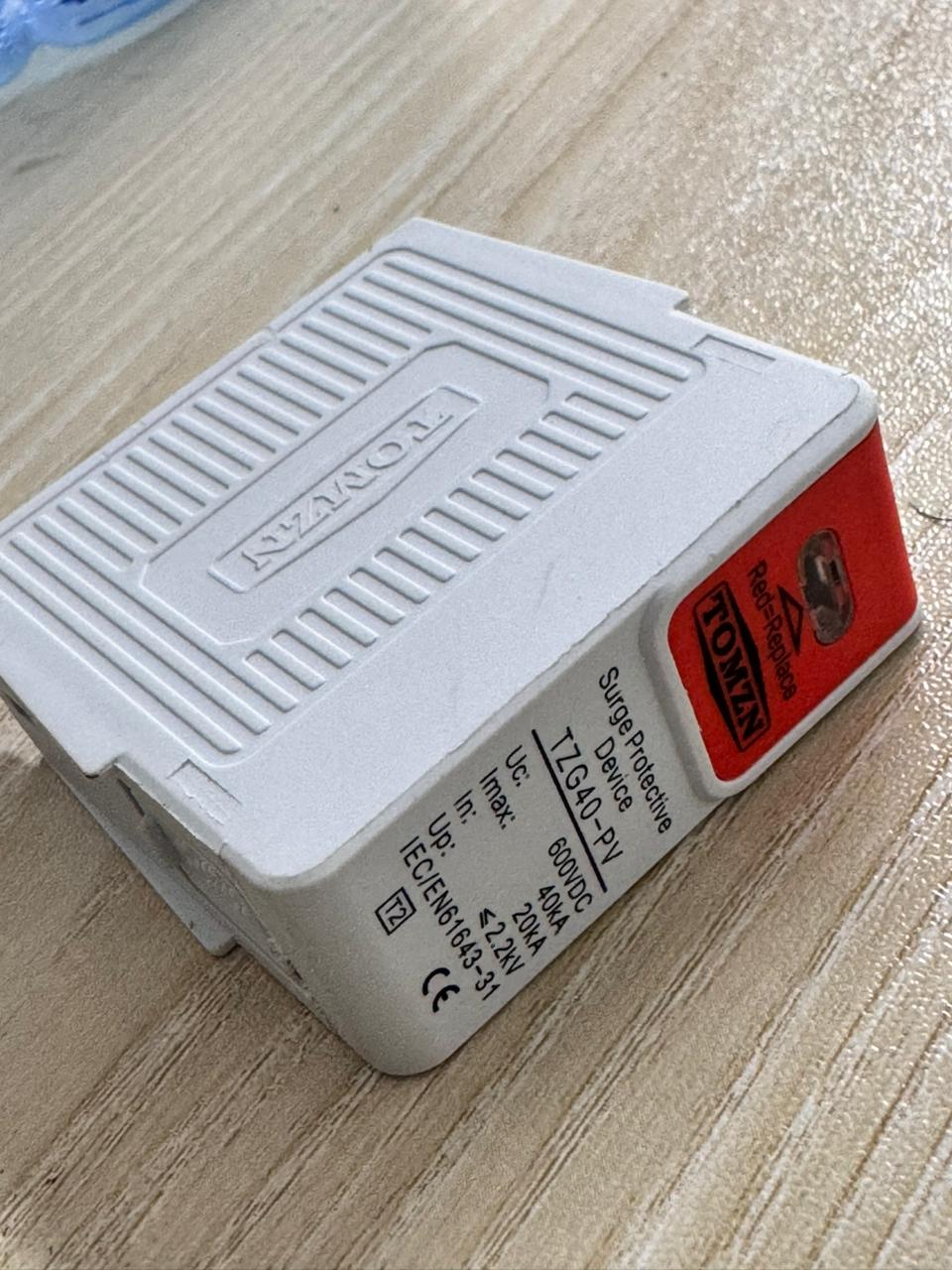

TOMZN TZG40-PV DC Surge Protective Device Replacement Cartridge
Overview
Protecting your valuable DC systems, especially solar photovoltaic (PV) installations, from the destructive forces of lightning strikes and transient overvoltages is paramount. The TOMZN TZG40-PV DC Surge Protective Device (SPD) replacement cartridge offers a robust and reliable solution designed specifically for these critical applications. This high-performance module is engineered to divert harmful surge currents away from sensitive equipment, ensuring the longevity and continuous operation of your solar inverters, charge controllers, and other DC components. It's an essential component for any comprehensive surge protection strategy in Bangladesh's diverse weather conditions.
Designed as a plug-in replacement for the TOMZN TZG40-PV series base unit, this cartridge makes maintenance incredibly simple and cost-effective. When a surge event causes the existing cartridge to fail, indicated by a clear visual fault indicator, you can quickly and easily swap it out without needing to disconnect the entire SPD base from your system. This significantly reduces downtime and labor costs, making it a preferred choice for installers and system owners across Bangladesh.
Why Choose TOMZN TZG40-PV?
- Superior Protection: Engineered to meet IEC 61643-31 and EN 50539-11 standards, ensuring top-tier surge protection for DC circuits up to 1000V.
- Easy Maintenance: The pluggable cartridge design allows for swift and tool-free replacement, minimizing system downtime.
- Reliable Indication: Features a clear visual status indicator (green for normal, red for fault) for immediate operational status checks.
- High Discharge Capacity: With a maximum discharge current (Imax) of 40kA, it effectively handles significant surge events.
- Durability: Constructed from flame-retardant materials, providing enhanced safety and a long operational lifespan, even in challenging environments.
Key Features
Advanced Surge Protection
The TOMZN TZG40-PV replacement cartridge is built with advanced Metal Oxide Varistor (MOV) technology, specifically optimized for DC photovoltaic systems. It provides a nominal discharge current (In) of 20kA and an impressive maximum discharge current (Imax) of 40kA, ensuring that powerful transient surges are safely shunted to the ground. Its fast response time of less than 25 nanoseconds means your sensitive electronics are protected almost instantaneously, preventing damage before it can occur. This level of protection is crucial for solar installations across Bangladesh, where electrical grids can be prone to fluctuations and lightning is a common threat.
High Reliability & Durability
Constructed from high-quality, flame-retardant thermoplastic materials, this cartridge offers excellent resistance to heat, UV radiation, and environmental stress. It is designed to operate reliably within a wide temperature range of -40°C to +80°C, making it suitable for the diverse climatic conditions found throughout Bangladesh. The robust build quality ensures a long service life, reducing the frequency of replacements and contributing to the overall stability of your DC power system.
Easy Replacement & Maintenance
One of the standout features of the TOMZN TZG40-PV series is its modular, plug-in design. The replacement cartridge can be easily inserted into or removed from the base unit without requiring specialized tools or disconnecting the entire SPD from the wiring. This simplifies maintenance procedures, saves significant time during troubleshooting or replacement, and keeps your system operational with minimal interruption. For those seeking a "TOMZN TZG40-PV near me" for quick replacement, this design is a major advantage.
Visual Status Indication
Each cartridge comes equipped with a clear visual status indicator. A green flag signifies that the device is operating normally and providing full protection. If the indicator turns red, it means the cartridge has absorbed a significant surge and is no longer providing protection, signaling the need for a replacement. This intuitive visual cue allows for quick and easy inspection, ensuring your system's surge protection remains active and effective without complex diagnostic tools.
Wide Application Range
While primarily designed for solar PV systems, the TOMZN TZG40-PV DC Surge Protective Device replacement cartridge is suitable for various DC power applications requiring robust surge protection. This includes DC distribution boards, battery storage systems, and other sensitive DC equipment that could be vulnerable to lightning-induced surges or switching transients. Its versatility makes it an excellent choice for a broad spectrum of renewable energy projects and industrial DC setups in the Bangladesh market.
Detailed Specifications
Below is a comprehensive table outlining the key technical specifications of the TOMZN TZG40-PV DC Surge Protective Device replacement cartridge:
| Specification |
Value |
| Model |
TZG40-PV (Replacement Cartridge) |
| Rated Operating Voltage (Ucpv) |
1000V DC |
| Nominal Discharge Current (In) |
20 kA (8/20µs) |
| Maximum Discharge Current (Imax) |
40 kA (8/20µs) |
| Voltage Protection Level (Up) |
≤3.8 kV |
| Response Time (ta) |
<25 ns |
| Poles |
1P (Single Module Cartridge) |
| Standard Compliance |
IEC 61643-31, EN 50539-11 |
| Operating Temperature Range |
-40°C to +80°C |
| Storage Temperature Range |
-40°C to +85°C |
| Visual Status Indication |
Green (Normal), Red (Fault) |
| Mounting Type |
Plug-in Module (for TZG40-PV base) |
| Housing Material |
Flame-retardant Thermoplastic (UL94 V-0) |
| Dimensions (Approx. per module) |
90mm (H) x 25mm (W) x 60mm (D) |
| Weight (Approx. per module) |
0.15 kg |
| Protection Mode |
(P-N), (P-PE) depending on base unit wiring |
Benefits of Using the TOMZN TZG40-PV Cartridge
Protect Your Investments
Solar PV systems represent a significant investment. Lightning strikes and power surges can cause catastrophic damage to expensive components like inverters, charge controllers, and solar panels, leading to costly repairs or complete system replacements. The TOMZN TZG40-PV replacement cartridge acts as the first line of defense, diverting destructive energy and safeguarding your critical equipment, ensuring your investment remains protected for years to come.
Ensure System Uptime
Damaged equipment means downtime, which translates to lost energy generation and potential financial losses for commercial or grid-tied systems. By effectively mitigating surge risks, this SPD cartridge helps maintain continuous operation of your solar PV system. Its easy replacement feature further minimizes any potential service interruptions, making it an ideal choice for reliable energy production in Bangladesh.
Cost-Effective Maintenance
The modular design of the TOMZN TZG40-PV series, where only the cartridge needs replacement after a major surge event, offers significant cost savings. Instead of replacing the entire SPD unit, you only need to purchase and install a new cartridge. This not only reduces material costs but also simplifies maintenance, requiring less labor and specialized tools. This cost-efficiency is a major advantage for budget-conscious projects in Bangladesh.
Enhanced Safety
Electrical surges can also pose safety risks, including fire hazards due to overheating or arcing in unprotected circuits. By providing robust overvoltage protection, the TOMZN TZG40-PV cartridge enhances the overall safety of your electrical installation, protecting both equipment and personnel from potential dangers. Its flame-retardant housing adds an extra layer of safety.
Usage Instructions & Installation Guide
While the TOMZN TZG40-PV replacement cartridge is designed for easy installation, proper procedure is crucial for effective protection. Always ensure safety precautions are followed.
Before Installation
- Safety First: Ensure all power to the DC circuit where the SPD is installed is completely disconnected and verified using a voltage tester.
- Identify Fault: Confirm that the existing cartridge's visual indicator is red, signaling a fault and the need for replacement.
- Compatibility: Verify that the new replacement cartridge matches the voltage rating and model (TZG40-PV) of your existing TOMZN SPD base unit.
Installation Steps
- Remove Old Cartridge: Firmly grasp the faulty cartridge and pull it straight out from the base unit. It should detach with moderate force.
- Inspect Base Unit: Briefly inspect the base unit for any visible damage or debris before inserting the new cartridge.
- Insert New Cartridge: Align the new TOMZN TZG40-PV replacement cartridge with the slots in the base unit. Push it firmly and evenly until it clicks securely into place.
- Verify Installation: Ensure the cartridge is seated correctly. The visual indicator on the new cartridge should show green, indicating normal operation.
- Restore Power: Once the cartridge is securely installed, you can safely restore power to your DC system.
Maintenance & Replacement
Regularly inspect the visual indicator on your TOMZN TZG40-PV cartridges, especially after severe weather events. If any indicator turns red, replace the cartridge immediately to ensure continuous protection. Keep a spare cartridge on hand for quick replacement, particularly if your system is in a remote location in Bangladesh.
Availability & Price in Bangladesh
The TOMZN TZG40-PV DC Surge Protective Device replacement cartridge is a highly sought-after component for solar PV installations and DC power systems across Bangladesh. We understand the importance of reliable protection for your valuable assets.
Where to Buy TOMZN TZG40-PV in Bangladesh
You can find the TOMZN TZG40-PV replacement cartridge from leading electrical and solar equipment suppliers throughout Bangladesh. Online e-commerce platforms and specialized solar product retailers are excellent places to search for "TOMZN TZG40-PV in Bangladesh" or "solar SPD Bangladesh". Many reputable dealers offer nationwide delivery, ensuring you can get this essential protection no matter where you are located. For those searching for "TOMZN TZG40-PV near me", checking with local electrical shops in major cities like Dhaka, Chittagong, Khulna, and Sylhet is recommended.
Price Information
The TOMZN TZG40-PV DC Surge Protective Device replacement cartridge price in Bangladesh typically ranges from ৳1,700 to ৳2,200, depending on the supplier, specific voltage rating, and current market conditions. Our listed approximate price of ৳1,850.00 reflects a competitive market rate for a high-quality, 1000V, 40kA module. Prices may vary slightly, so it's always advisable to compare offers from different trusted vendors to ensure you get the best deal. Bulk purchases might also qualify for special discounts.
Delivery Options
Most online retailers and major distributors offer convenient delivery services across Bangladesh. Whether you need delivery to Dhaka, Chittagong, Sylhet, or any other district, you can expect efficient shipping options. Confirm delivery charges and estimated delivery times with your chosen vendor.
Customer Reviews & Testimonials
"I recently replaced a faulty SPD cartridge in my solar system with the TOMZN TZG40-PV. The swap was incredibly easy, and the visual indicator instantly confirmed it was working. Great product for solar protection in Bangladesh!" - Rahim M., Dhaka
"After a severe thunderstorm, our old SPD showed a fault. Ordered the TOMZN TZG40-PV replacement cartridge online, and it arrived quickly. Installation took less than a minute. Highly recommend for any solar owner in Bangladesh." - Shapla K., Khulna
"We use TOMZN products extensively in our solar projects. The TZG40-PV cartridges are reliable and the plug-in design saves us a lot of time on site. Excellent value for the price in Bangladesh." - Solar Solutions Ltd., Chittagong
Frequently Asked Questions (FAQs)
Q: What is the primary function of the TOMZN TZG40-PV replacement cartridge?
A: Its primary function is to protect DC electrical circuits, particularly in solar PV systems, from damage caused by lightning strikes and transient overvoltages by diverting excess current to the ground.
Q: How do I know when to replace the cartridge?
A: The cartridge features a visual indicator. If it shows red, it means the cartridge has absorbed a significant surge and needs to be replaced. A green indicator means it's functioning normally.
Q: Is this cartridge compatible with any SPD base unit?
A: No, this replacement cartridge is specifically designed for the TOMZN TZG40-PV series base units. Always ensure compatibility before purchasing.
Q: Can I install this cartridge myself?
A: Yes, the plug-in design makes installation straightforward. However, always ensure the power to the DC circuit is completely disconnected before handling electrical components for safety.
Q: What is the lifespan of an SPD cartridge?
A: An SPD cartridge is designed to absorb multiple minor surges. Its lifespan depends on the frequency and magnitude of surge events it encounters. After absorbing a major surge, it sacrifices itself to protect your equipment and needs replacement.
Conclusion
Investing in the TOMZN TZG40-PV DC Surge Protective Device replacement cartridge is a smart decision for anyone looking to safeguard their DC electrical systems, especially solar PV installations, from unpredictable surges and lightning. Its robust protection capabilities, coupled with an easy-to-replace modular design, offer unparalleled convenience and cost-effectiveness. With its high discharge capacity and reliable performance, this cartridge ensures the longevity and continuous operation of your valuable equipment. Secure your solar investment today by choosing the TOMZN TZG40-PV, widely available in Bangladesh at a competitive price. Don't compromise on protection – choose TOMZN for peace of mind.
