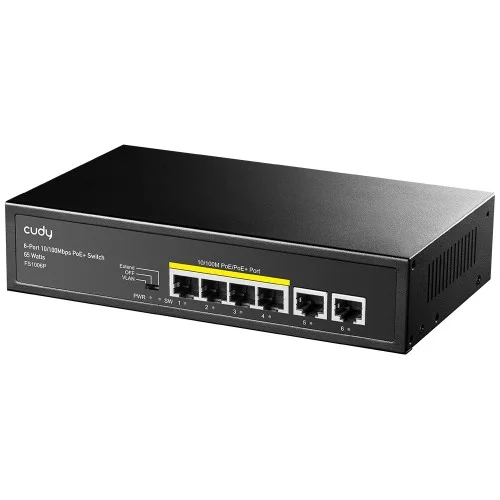

Cudy FS1006P 6-Port 10/100M PoE+ Switch Price In Bangladesh
Discover the Cudy FS1006P, a robust and efficient 6-port 10/100M PoE+ Switch, now available at an unbeatable price of ৳2400.00 BDT in Bangladesh. This powerful networking device is engineered to simplify your network infrastructure by delivering both data and power over a single Ethernet cable, making it an ideal solution for expanding your network in various environments, from small offices to large residential setups. The Cudy FS1006P is designed for reliability, ease of use, and optimal performance, ensuring your IP cameras, access points, and VoIP phones receive stable power and data connectivity.
Overview: Powering Your Network with Simplicity
The Cudy FS1006P is more than just a switch; it's a smart solution for modern networking challenges. Featuring four PoE+ ports (Port 1-4) out of six 10/100Mbps RJ45 ports, it eliminates the need for separate power outlets for your PoE-compatible devices. This means greater flexibility in device placement, reduced cabling clutter, and significant cost savings on electrical infrastructure. Whether you're setting up a surveillance system, deploying wireless access points, or integrating IP phones, the FS1006P provides a clean, efficient, and reliable power and data backbone.
Built with a high-quality metal casing, the Cudy FS1006P ensures excellent heat dissipation and a long service life, even in demanding conditions. Its fanless design guarantees whisper-quiet operation, making it perfect for noise-sensitive environments like offices, homes, and libraries. With its plug-and-play simplicity, setting up your network has never been easier. Experience seamless connectivity and enhanced network management with the Cudy FS1006P, widely available across Bangladesh.
Key Features & Benefits of the Cudy FS1006P
The Cudy FS1006P PoE+ Switch is packed with features designed to deliver superior performance and convenience:
- 6 x 10/100Mbps RJ45 Ports: Provides reliable Fast Ethernet connectivity for all your wired devices, ensuring smooth data transfer.
- 4 x PoE+ Ports (Port 1-4): Supports IEEE 802.3af/at standards, delivering up to 30W of power per port for compatible devices like IP cameras, wireless access points, and VoIP phones. This eliminates the need for individual power adapters.
- Generous PoE Power Budget: With a total power budget of 65W, the switch can simultaneously power multiple high-power PoE devices without compromising performance.
- Extended CCTV Mode: A dedicated CCTV mode allows for extended PoE transmission distances up to 250 meters at 10Mbps, perfect for large surveillance deployments in Bangladesh where devices are spread out.
- Robust Metal Casing: The durable metal housing not only offers superior protection against physical damage but also enhances heat dissipation, contributing to the switch's longevity and stable operation.
- Fanless Design for Silent Operation: Enjoy a noise-free environment with its fanless design, making it ideal for deployment in quiet spaces.
- Plug-and-Play Simplicity: No complex configuration required. Simply connect your devices, and the switch is ready to go, saving you time and effort.
- High Performance: Supports up to 1K MAC addresses and boasts a switching capacity of 1.2 Gbps, ensuring efficient data handling across your network.
- Reliable Power Delivery: Delivers power over spare pairs 1/2(+) and 3/6(-), ensuring stable and consistent power to connected devices.
- 1-Year Manufacturer Warranty: Enjoy peace of mind with a comprehensive 1-year warranty, ensuring support and reliability for your investment in Bangladesh.
Why Choose Cudy FS1006P for Your Bangladesh Network?
Choosing the Cudy FS1006P means investing in a reliable, cost-effective, and powerful networking solution. For businesses and homes across Bangladesh, this switch offers:
- Cost Efficiency: By consolidating power and data into a single cable, you reduce cabling costs, installation time, and the need for electrical outlets, leading to significant savings.
- Flexible Deployment: Install your PoE devices in optimal locations, regardless of power outlet availability, enhancing network coverage and surveillance capabilities.
- Enhanced Durability: The robust metal casing is designed to withstand various environmental conditions, making it a long-lasting investment for the demanding Bangladesh market.
- Quiet Operation: Its fanless design is a major plus for noise-sensitive environments, ensuring an undisturbed work or living space.
- Simplified Management: Plug-and-play functionality makes setup and maintenance incredibly easy, even for users with limited networking expertise.
- Ideal for Surveillance: The extended CCTV mode makes it a go-to choice for deploying IP cameras over longer distances, a common requirement for security systems in Bangladesh.
Ideal Applications
The Cudy FS1006P is versatile and suitable for a wide range of applications:
- Small to Medium Businesses: Power IP cameras, VoIP phones, and wireless access points efficiently.
- Home Security Systems: Easily set up and power multiple IP cameras around your home.
- Smart Homes: Integrate smart devices that require PoE for power and data.
- Hotels & Guest Houses: Deploy Wi-Fi access points in rooms without needing additional power outlets.
- Cafes & Restaurants: Power POS systems, security cameras, and guest Wi-Fi access points.
- Educational Institutions: Provide network and power to access points in classrooms or common areas.
Installation & Setup
Setting up your Cudy FS1006P is remarkably simple:
- Power Connection: Connect the included external power adapter to the switch and a power outlet.
- Network Uplink: Connect one of the non-PoE ports (Port 5 or 6) to your router or main network segment using a standard Ethernet cable.
- PoE Device Connection: Connect your PoE-compatible devices (IP cameras, APs, IP phones) to ports 1-4 using Ethernet cables.
- Non-PoE Device Connection: Connect other non-PoE network devices (PCs, NVRs) to the remaining non-PoE ports.
- Operation: The switch will automatically detect and power your PoE devices. No software configuration is required for basic operation.
Full Technical Specifications: Cudy FS1006P
| Feature |
Specification |
| Product Name |
Cudy FS1006P 6-Port 10/100M PoE+ Switch |
| Model |
FS1006P |
| Ports |
6 × 10/100Mbps RJ45 Ports |
| PoE Ports |
4 Ports (Port 1–4) |
| PoE Standard |
IEEE 802.3af/at |
| PoE Output |
Max 30W per port |
| Total PoE Power Budget |
65W |
| PoE Power Pins |
Delivers power over spare pairs 1/2(+) and 3/6(-) |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m) |
| Switching Capacity |
1.2 Gbps |
| Packet Forwarding Rate |
0.89 Mpps |
| MAC Address Table |
1K Entries |
| Jumbo Frame |
2K Bytes |
| Forwarding Mode |
Store-and-Forward |
| Special Features |
CCTV Mode (Up to 250m at 10Mbps), Plug & Play |
| Power Supply |
External Power Adapter (Input: 100-240V AC, 50/60Hz; Output: 52V DC / 1.25A) |
| Casing |
High-Quality Metal Casing |
| Fanless Design |
Yes |
| LED Indicators |
Power, Link/Act, PoE Status |
| Dimensions (W x D x H) |
125 x 75 x 27 mm |
| Weight |
0.28 kg (approx.) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 90% non-condensing |
| Certification |
CE, FCC, RoHS |
| Warranty |
1 Year Manufacturer Warranty |
Frequently Asked Questions (FAQs)
- What is PoE+ and why is it important?
PoE+ (Power over Ethernet Plus) is an IEEE 802.3at standard that allows Ethernet cables to carry up to 30W of electrical power per port, in addition to data. This is crucial for powering more demanding devices like PTZ cameras, powerful Wi-Fi 6 access points, and video phones without needing separate power adapters, simplifying installation and reducing costs.
- Can I connect non-PoE devices to the Cudy FS1006P?
Yes, absolutely. The Cudy FS1006P functions as a standard Fast Ethernet switch for non-PoE devices. You can connect PCs, NVRs, or other network devices to any of its 6 ports, and they will receive data connectivity without power.
- What is the "CCTV Mode" feature?
The CCTV Mode on the Cudy FS1006P extends the maximum transmission distance for PoE devices from the standard 100 meters up to 250 meters. While enabling this mode, the data speed on the PoE ports will be reduced to 10Mbps, which is sufficient for most IP cameras and ideal for surveillance applications over longer cable runs.
- Is the Cudy FS1006P suitable for outdoor use?
No, the Cudy FS1006P is designed for indoor use. While its metal casing offers durability, it is not weatherproof or rated for outdoor environmental conditions.
- Where can I buy the Cudy FS1006P near me in Bangladesh?
The Cudy FS1006P is available at various electronics and networking equipment stores throughout Bangladesh, as well as major online retailers. You can check with local computer shops or search online for "Cudy FS1006P near me" or "PoE switch Bangladesh" to find a convenient purchasing option.
Warranty & Support
The CUDY FS1006P 6-Port 10/100M PoE+ Switch comes with a 01-year manufacturer warranty. This warranty covers manufacturing defects and ensures you receive timely support and service. For any warranty claims or technical assistance, please contact your authorized Cudy dealer or service center in Bangladesh.
Where to Buy Cudy FS1006P in Bangladesh?
For genuine Cudy products, excellent customer support, and speedy deliveries, consider purchasing from reputable online stores and authorized dealers in Bangladesh. You can find the Cudy FS1006P 6-Port 10/100M PoE+ Switch at the best price in Bangladesh through trusted platforms. Look for online shopping platforms that offer easy returns and reliable after-sales service to ensure a smooth buying experience.
