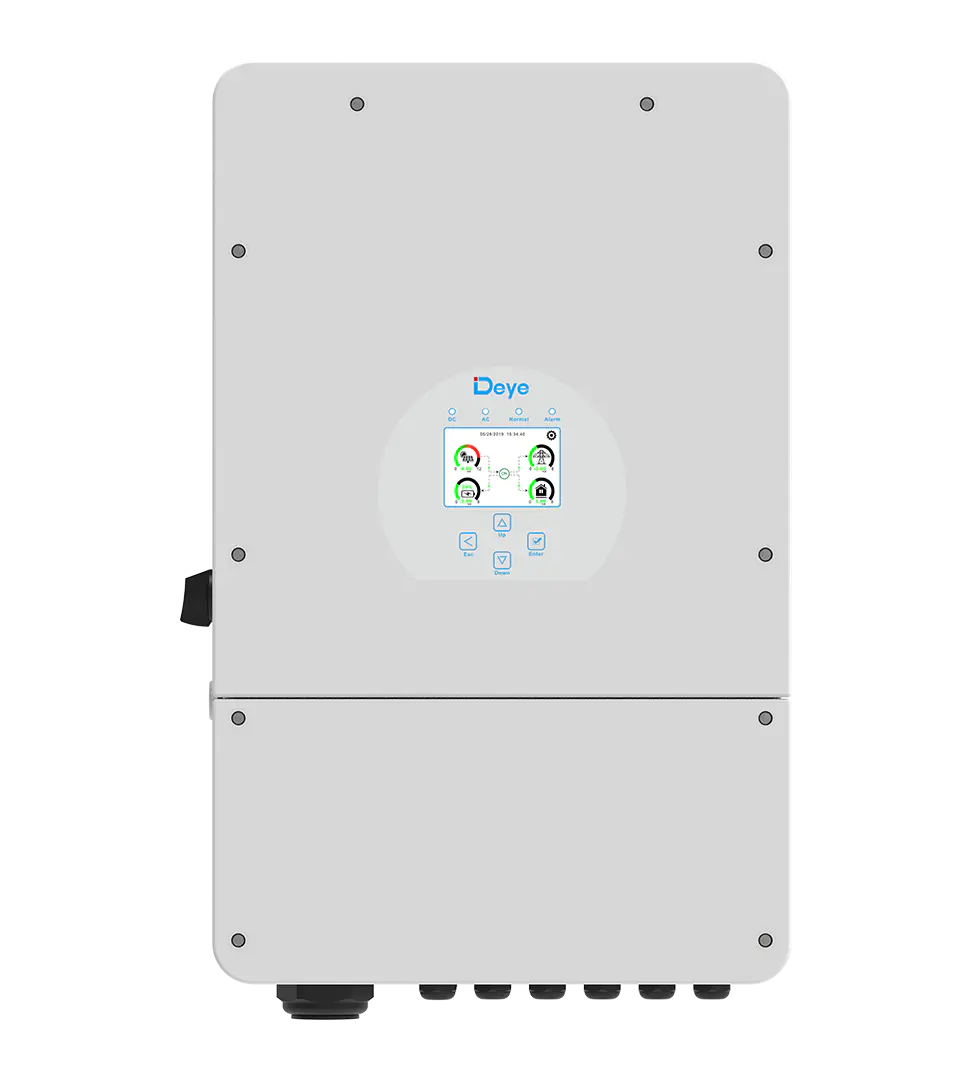

Deye 10KW Single Phase Hybrid Solar Inverter – SUN-10K-SG02LP1-EU-AM3
Price: ৳299000 BDT
Overview: Deye 10KW Single Phase Hybrid Solar Inverter in Bangladesh
Transform your energy independence with the Deye 10KW Single Phase Hybrid Solar Inverter, model SUN-10K-SG02LP1-EU-AM3, now available at the best price in Bangladesh. Designed for residential and light commercial applications, this cutting-edge hybrid inverter seamlessly integrates solar power, grid electricity, and battery storage to provide a reliable, efficient, and sustainable energy solution. With its robust performance and intelligent energy management capabilities, the Deye 10KW Hybrid Inverter is engineered to tackle the challenges of grid instability and rising electricity costs prevalent in Bangladesh.
This powerful 10,000-watt inverter is a cornerstone for any modern solar setup, allowing you to maximize self-consumption of solar energy, store excess power in batteries for nighttime use or during power outages, and even feed surplus electricity back into the grid where net metering policies permit. Experience unparalleled energy security and significant savings on your utility bills with this advanced solar solution, making it an ideal choice for homes and businesses across Bangladesh.
Key Features of Deye SUN-10K-SG02LP1-EU-AM3
The Deye 10KW Single Phase Hybrid Solar Inverter is packed with features designed for optimal performance, flexibility, and user convenience:
Hybrid Functionality for Ultimate Versatility
- On-Grid and Off-Grid Capability: Operate in grid-tied mode to reduce electricity bills, or switch to off-grid mode to power your home during blackouts using battery storage and solar panels. This dual functionality is crucial for the dynamic power situation in Bangladesh.
- Zero Export Function: Easily configure the inverter to prevent feeding excess power back into the grid, adhering to local regulations and ensuring maximum self-consumption.
High Efficiency and Optimal Power Harvest
- Max. Efficiency up to 97.6%: Ensures that a significant portion of the solar energy captured is converted into usable electricity, minimizing losses and maximizing your return on investment.
- Dual MPPT Trackers: Equipped with two Maximum Power Point Tracking (MPPT) inputs, allowing for flexible solar panel array design and optimizing power generation even if panels are oriented differently or partially shaded. Each MPPT can handle up to 13A input current, ensuring efficient harvesting from various string configurations.
- Wide MPPT Voltage Range: Operates efficiently across a broad PV voltage range (120-425V), ensuring consistent power production throughout the day and in varying weather conditions.
Advanced Battery Management
- Compatible with Lead-acid and Li-Ion Batteries: Offers flexibility in battery choice, allowing you to select the best storage solution for your needs and budget. The 48V low-voltage battery support (40-60V range) is ideal for common residential battery banks.
- Max. Charge/Discharge Current of 210A: Enables rapid charging of batteries from solar or grid and delivers substantial power to your loads when operating from battery storage.
- Smart Battery Management System (BMS) Communication: Ensures safe and optimized charging and discharging cycles for compatible lithium-ion batteries, prolonging battery lifespan.
Intelligent Load Management and Backup Power
- UPS Function (Uninterrupted Power Supply): Provides seamless transition to battery power in the event of a grid outage, ensuring essential appliances remain operational without interruption.
- Generator Compatibility: Can be integrated with a generator to provide additional backup power, automatically starting and stopping the generator as needed, enhancing energy security for homes in Bangladesh.
- Smart Load Control: Prioritizes energy usage, allowing you to direct solar power to loads, charge batteries, or feed into the grid based on your programmed preferences.
Robust Design and Monitoring
- IP65 Protection: Designed for outdoor installation, offering excellent protection against dust and water ingress, making it suitable for various environmental conditions in Bangladesh.
- LCD Touch Screen and Remote Monitoring: Features a user-friendly LCD touch screen for local configuration and monitoring. Additionally, a built-in monitoring platform (via optional WiFi/GPRS module) allows for remote system management and real-time data access from anywhere, anytime.
- Parallel Function (Optional): For systems requiring more power, multiple Deye inverters can be paralleled to increase the total output capacity, offering scalability for growing energy needs.
Why Choose Deye 10KW Hybrid Inverter for Your Home in Bangladesh?
For Bangladeshi households and businesses, the Deye 10KW Single Phase Hybrid Solar Inverter offers a compelling solution to common energy challenges:
- Combat Load Shedding: With frequent power outages, a hybrid system provides critical backup power, ensuring your essential appliances and comfort are maintained.
- Reduce Electricity Bills: Harness solar energy during the day to power your home, significantly cutting down reliance on expensive grid electricity.
- Energy Independence: Gain greater control over your energy supply, reducing vulnerability to grid fluctuations and rising utility costs.
- Environmentally Friendly: Contribute to a greener Bangladesh by utilizing clean, renewable solar energy, reducing your carbon footprint.
- Long-Term Investment: A Deye inverter is a durable and reliable investment, designed for longevity and backed by a reputable global manufacturer.
Technical Specifications: Deye SUN-10K-SG02LP1-EU-AM3
Here are the detailed specifications for the Deye 10KW Single Phase Hybrid Solar Inverter:
| Parameter |
Value |
| PV String Input Data |
| Max. DC Input Power |
13000 W |
| Rated PV Input Voltage |
370 V |
| MPPT Voltage Range |
120 - 425 V |
| Full Load DC Voltage Range |
200 - 425 V |
| Max. PV Input Voltage |
500 V |
| Start-up Voltage |
150 V |
| Max. Input Current (MPPT) |
13 A + 13 A |
| Max. Short Circuit Current (MPPT) |
19.5 A + 19.5 A |
| Number of MPPTs / Strings per MPPT |
2 / 1 |
| Battery Input Data |
| Battery Type |
Lead-acid or Li-Ion |
| Battery Voltage Range |
40 - 60 V |
| Max. Charge Current |
210 A |
| Max. Discharge Current |
210 A |
| External Temperature Sensor |
Yes |
| Charging Curve |
3 Stages / Equalization |
| BMS Communication |
RS485, CAN |
| AC Output Data (On-Grid) |
| Rated AC Output Power |
10000 W |
| Max. AC Output Power |
11000 W |
| Rated AC Output Current |
43.5 A |
| Max. AC Output Current |
47.8 A |
| Max. Continuous AC Pass-through |
50 A |
| Rated AC Voltage / Range |
230 V (180V-270V) |
| Rated AC Frequency / Range |
50/60 Hz (45-55Hz / 55-65Hz) |
| THD |
<3% (Rated Power) |
| Power Factor |
0.8 leading to 0.8 lagging |
| AC Output Data (Backup/Off-Grid) |
| Rated AC Output Power |
10000 W |
| Peak Power |
2 times of rated power for 10 sec |
| Rated AC Voltage |
230 V |
| Rated AC Frequency |
50/60 Hz |
| Auto Switch Time |
<10 ms |
| Efficiency |
| Max. Efficiency |
97.6% |
| Euro Efficiency |
97.0% |
| MPPT Efficiency |
99.9% |
| General Data |
| Dimensions (W x H x D) |
420 x 702 x 281 mm |
| Weight |
33.6 kg |
| Protection Degree |
IP65 |
| Operating Temperature Range |
-25°C to +60°C (>45°C derating) |
| Cooling |
Smart Cooling (Fan) |
| Noise Emission |
<45 dB |
| Display |
LCD Touch Screen |
| Communication Interfaces |
RS485, CAN, DRM, USB, WiFi/GPRS (Optional) |
| Warranty |
5 Years Standard (Extendable) |
Benefits of a Hybrid Solar System with Deye 10KW Inverter
Investing in a hybrid solar system powered by the Deye 10KW inverter offers numerous advantages, particularly relevant for the energy landscape in Bangladesh:
- Reduced Dependency on Grid: Minimize reliance on the national grid, especially during peak hours, by utilizing stored solar energy.
- Enhanced Power Reliability: Enjoy uninterrupted power supply even during prolonged grid outages, thanks to seamless transition to battery backup.
- Optimized Self-Consumption: Intelligently manage your energy flow to maximize the use of self-generated solar power, leading to greater savings.
- Scalability: The system can be expanded by adding more solar panels or batteries, or even paralleling additional inverters, to meet future energy demands.
- Smart Energy Management: Monitor and control your energy usage in real-time, making informed decisions to optimize your energy consumption patterns.
Installation and Usage Instructions
The Deye 10KW Single Phase Hybrid Solar Inverter is designed for straightforward installation by certified solar professionals. It comes with a comprehensive user manual detailing wiring diagrams, configuration settings, and safety guidelines. Users can easily monitor system performance via the intuitive LCD touch screen or through the Deye monitoring platform accessible via a web browser or mobile app (with an optional WiFi/GPRS dongle). Regular cleaning of solar panels and periodic checks by a technician will ensure optimal performance and longevity of your solar system.
Availability and Price of Deye 10KW Hybrid Inverter in Bangladesh
The Deye 10KW Single Phase Hybrid Solar Inverter (SUN-10K-SG02LP1-EU-AM3) is readily available in Bangladesh. You can purchase this advanced solar inverter at the competitive price of ৳299000 BDT. We offer nationwide delivery in Bangladesh, ensuring that you can get this essential component for your solar system no matter where you are located. For those searching for "Deye 10KW inverter near me in Bangladesh", please contact our sales team or visit our authorized distributors. We are committed to providing the best price in Bangladesh along with excellent customer support and after-sales service.
Warranty and Support
The Deye 10KW Single Phase Hybrid Solar Inverter comes with a standard 5-year manufacturer's warranty, ensuring peace of mind regarding your investment. This warranty covers manufacturing defects and ensures reliable operation. Extended warranty options may also be available. Our dedicated support team in Bangladesh is ready to assist you with any technical queries, installation guidance, or after-sales service requirements, ensuring your solar journey is smooth and hassle-free.
Conclusion
The Deye 10KW Single Phase Hybrid Solar Inverter (SUN-10K-SG02LP1-EU-AM3) stands as a robust, efficient, and intelligent solution for anyone looking to embrace solar energy in Bangladesh. Its advanced hybrid capabilities, high efficiency, smart battery management, and comprehensive safety features make it an excellent choice for achieving energy independence and significant cost savings. At ৳299000 BDT, it represents a valuable investment in a sustainable and reliable power future for your home or business. Don't miss out on the opportunity to secure your energy future with this top-tier Deye hybrid inverter in Bangladesh.
