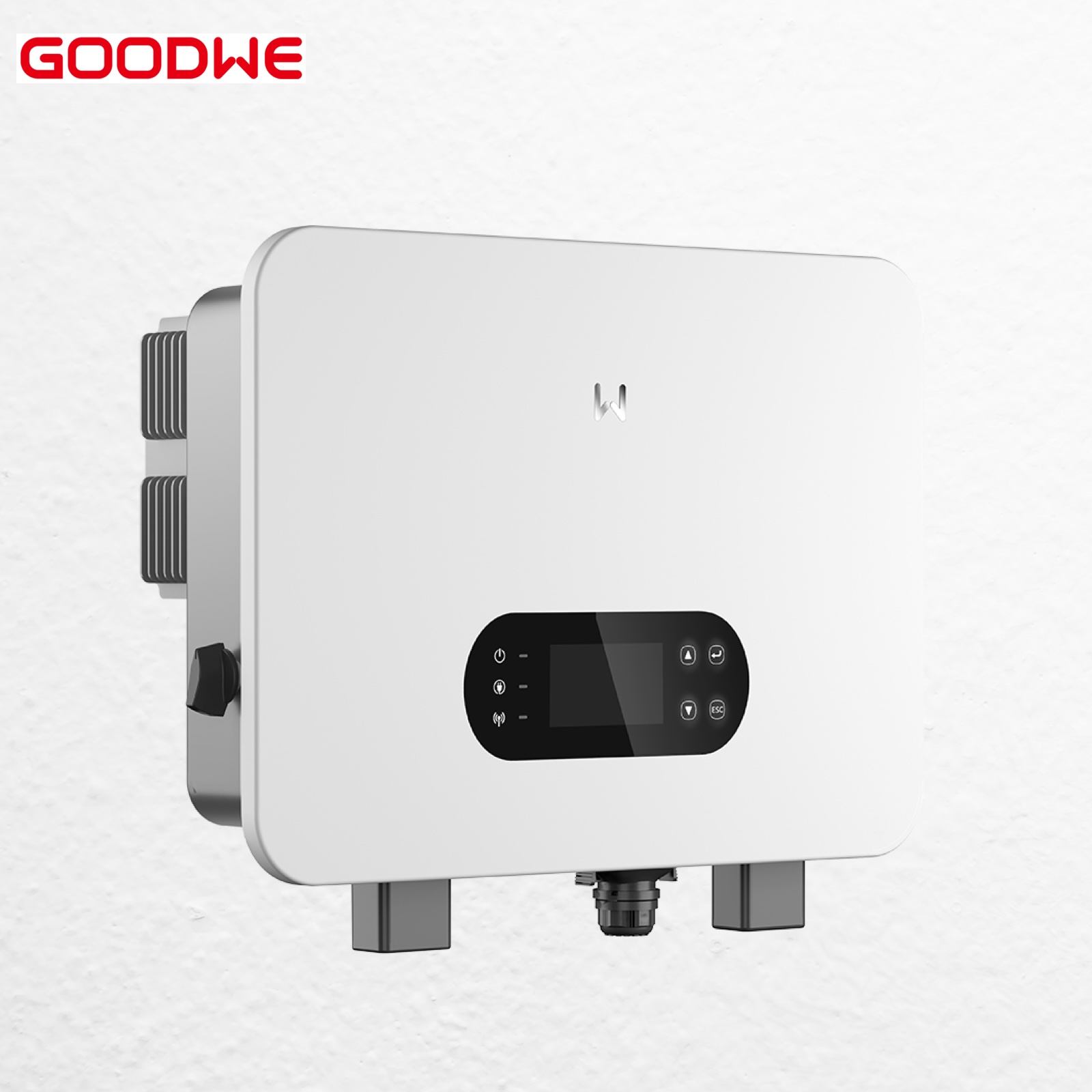

GoodWe 5kW Hybrid Solar Inverter Single Phase 48V (Dual MPPT GW5000-ES-C10) in Bangladesh
Step into the future of energy independence with the GoodWe 5kW Hybrid Solar Inverter (GW5000-ES-C10), a robust and intelligent solution designed to optimize solar energy utilization for homes and businesses across Bangladesh. This single-phase, 48V inverter with dual MPPT trackers is engineered to seamlessly integrate solar power, battery storage, and the utility grid, providing reliable and efficient electricity even during grid outages. Whether you're looking to reduce your electricity bills, ensure uninterrupted power supply, or contribute to a greener environment, the GoodWe GW5000-ES-C10 offers a cutting-edge answer to your energy needs.
The demand for reliable solar solutions is rapidly growing in Bangladesh, and the GoodWe GW5000-ES-C10 stands out as a top-tier choice for its performance, durability, and smart features. It's an ideal inverter for residential installations and small commercial setups, offering excellent value for its price in Bangladesh. Experience energy security like never before with this advanced hybrid inverter, available now for delivery across Bangladesh.
Key Features of GoodWe GW5000-ES-C10
- 5kW Single-Phase Hybrid Design: Perfectly suited for typical household and small business electricity requirements, providing a stable 230V AC output.
- Dual MPPT Trackers: Maximizes energy harvest from your solar panels, even if they are installed on different roof orientations or experience varying shading conditions, ensuring optimal performance in Bangladesh's diverse weather.
- 48V Battery Compatibility: Designed for robust 48V battery systems, supporting both lead-acid and lithium-ion batteries, giving you flexibility in energy storage choices.
- Smart Energy Management: Intelligently manages power flow between solar panels, batteries, loads, and the grid, prioritizing self-consumption and reducing reliance on grid electricity.
- UPS Functionality (Uninterrupted Power Supply): Provides seamless backup power in less than 10 milliseconds during grid failures, ensuring essential appliances remain operational without interruption.
- High Efficiency: Boasts a maximum efficiency of 97.6%, ensuring more of your generated solar power is converted into usable electricity, leading to greater savings.
- IP65 Dust and Water Protection: Built to withstand harsh environmental conditions, making it suitable for outdoor installation and ensuring long-term reliability in Bangladesh's climate.
- Comprehensive Protection Features: Includes over-voltage, short-circuit, over-current, anti-islanding, and reverse polarity protection for enhanced safety and system longevity.
- Integrated DC Switch: Simplifies installation and maintenance while ensuring safety during servicing.
- Flexible Monitoring Options: Comes with built-in RS485 and USB ports, with optional Wi-Fi/LAN modules for remote monitoring via the GoodWe SEMS Portal, allowing you to track your system's performance from anywhere.
- Quiet Operation: With a noise level of less than 30 dB, it operates silently, making it suitable for residential environments.
GoodWe GW5000-ES-C10 Technical Specifications
Below is a detailed breakdown of the GoodWe 5kW Hybrid Solar Inverter's specifications, providing all the necessary information for system design and comparison. These specifications are crucial for anyone looking for the best solar inverter in Bangladesh.
| Category |
Parameter |
Value |
| |
Max. DC Input Power |
6500 W |
| |
Max. DC Input Voltage |
550 V |
| |
MPPT Voltage Range |
120 - 450 V |
| |
Start-up Voltage |
150 V |
| |
Nominal Input Voltage |
360 V |
| |
Max. Input Current per MPPT |
12.5 A |
| |
Max. Short Circuit Current per MPPT |
15 A |
| |
Number of MPPTs |
2 |
| |
Number of PV Strings per MPPT |
1 |
| |
Nominal AC Output Power |
5000 W |
| |
Max. AC Output Power |
5500 W |
| |
Nominal AC Output Voltage |
230 V |
| |
AC Voltage Range |
180 - 276 V |
| |
Nominal AC Frequency |
50 Hz / 60 Hz |
| |
AC Frequency Range |
45 - 55 Hz / 55 - 65 Hz |
| |
Max. AC Output Current |
23.9 A |
| |
Output Power Factor |
0.8 leading to 0.8 lagging |
| |
THDi |
< 3% |
| |
Max. AC Output Power |
5000 W |
| |
Nominal AC Output Voltage |
230 V |
| |
Nominal AC Frequency |
50 Hz / 60 Hz |
| |
Max. AC Output Current |
21.7 A |
| |
Automatic Switch Time |
< 10 ms |
| |
Battery Type |
Li-Ion / Lead-Acid |
| |
Battery Voltage Range |
40 - 60 V |
| |
Max. Charge/Discharge Current |
100 A |
| |
Max. Charge/Discharge Power |
4600 W |
| |
Max. Efficiency |
97.6% |
| |
Euro Efficiency |
97.0% |
| |
Max. Battery to AC Efficiency |
94.5% |
| |
Dimensions (H x W x D) |
516 x 440 x 184 mm |
| |
Weight |
17 kg |
| |
Topology |
Transformerless |
| |
Operating Temperature Range |
-25 to 60 °C (derating at 45 °C) |
| |
Humidity |
0-95% (non-condensing) |
| |
Ingress Protection |
IP65 |
| |
Noise Emission (Typical) |
< 30 dB |
| |
Cooling |
Fan |
| |
Max. Operating Altitude |
4000 m |
| |
Self-Consumption (Night) |
< 10 W |
| |
Communication Interfaces |
USB, RS485, WLAN/LAN (optional), Dry Contact |
| |
DC Switch |
Integrated |
Benefits of Choosing GoodWe GW5000-ES-C10 for Bangladesh
- Energy Independence: Reduce your reliance on the national grid and protect yourself from fluctuating electricity prices and load shedding, a common issue in many parts of Bangladesh.
- Cost Savings: By maximizing self-consumption of solar energy and feeding excess power back to the grid (if net metering is implemented), you can significantly lower your monthly electricity bills.
- Reliable Backup Power: The integrated UPS function ensures that critical loads remain powered during outages, providing peace of mind for homes and businesses.
- Environmental Impact: Utilize clean, renewable solar energy to reduce your carbon footprint and contribute to a sustainable future for Bangladesh.
- Smart Monitoring and Control: Easily monitor your system's performance, energy production, and consumption from anywhere using the GoodWe SEMS Portal, giving you full control over your energy usage.
- Long-Term Investment: GoodWe is a globally recognized brand known for its quality and reliability, ensuring your investment in solar power provides benefits for years to come.
- Flexibility: Compatible with various battery types, allowing you to choose the best storage solution that fits your budget and energy needs.
Usage and Application
The GoodWe GW5000-ES-C10 is ideal for a variety of applications:
- Residential Homes: Power your entire home, reduce electricity bills, and ensure backup power during outages.
- Small Offices & Shops: Maintain business continuity with reliable power, even when the grid is down.
- Remote Locations: Provide stable electricity where grid access is unreliable or unavailable.
- Net Metering Systems: Leverage the benefits of feeding excess solar energy back to the grid, subject to local regulations in Bangladesh.
Installation of this inverter should always be performed by certified solar technicians to ensure safety, optimal performance, and compliance with local electrical codes in Bangladesh. Proper sizing of solar panels and battery banks is also crucial for the system's efficiency.
Availability and Price in Bangladesh
The GoodWe 5kW Hybrid Solar Inverter (GW5000-ES-C10) is readily available through authorized distributors and solar solution providers across Bangladesh. We are committed to offering the best price in Bangladesh for this high-quality inverter, ensuring that sustainable energy solutions are accessible to everyone.
For current pricing, installation services, and to find out if this product is available near me in Bangladesh, please contact our sales team or visit our website. We offer convenient delivery in Bangladesh to all major cities including Dhaka, Chittagong, Sylhet, Khulna, and beyond. Invest in the GoodWe GW5000-ES-C10 today and secure your energy future with a reliable and efficient solar solution that truly meets the demands of the Bangladesh market.
Experience the power of hybrid solar technology with GoodWe – your trusted partner for sustainable energy in Bangladesh.
