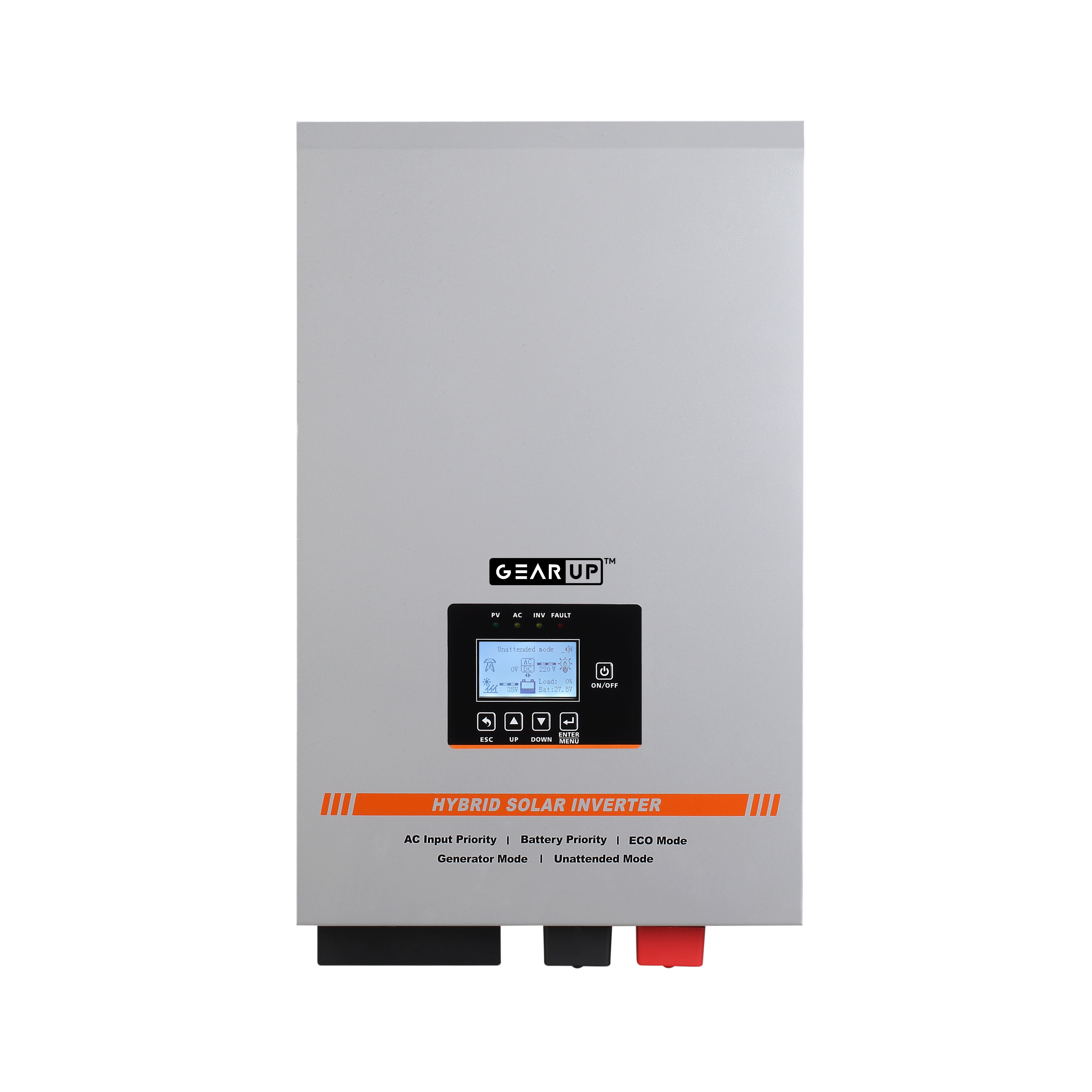

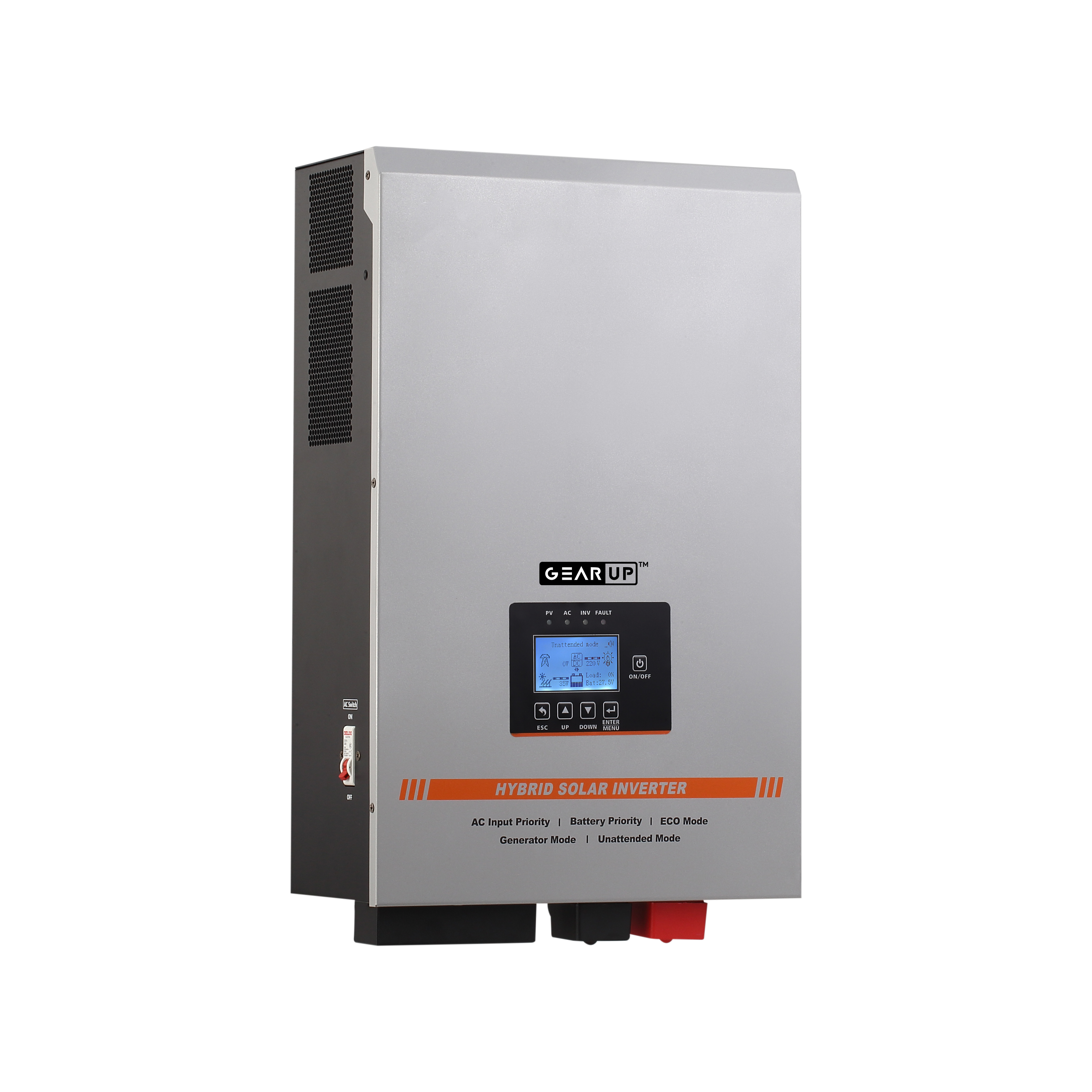

GearUP 10KW (Surge 30KW), 48V Low Frequency Off-Grid Hybrid Solar Inverter (Solar 60V-150V, 5600W) - GTG10K48M100
Experience unparalleled power reliability and energy independence with the GearUP GTG10K48M100 Low Frequency Off-Grid Hybrid Solar Inverter, now available at an unbeatable price of ৳180000 BDT in Bangladesh. Designed to meet the demanding energy needs of homes, businesses, and industrial setups across Bangladesh, this robust 10KW inverter with a massive 30KW surge capacity ensures your critical loads run smoothly, even in the most challenging conditions. Its advanced hybrid functionality seamlessly integrates solar power, battery storage, and utility grid (if available) to provide a continuous, stable, and clean energy supply.
The GearUP GTG10K48M100 is engineered for durability and high performance, featuring a low-frequency design with a heavy-duty toroidal transformer. This makes it exceptionally resilient to harsh electrical environments and capable of handling inductive loads like motors, pumps, and refrigerators with ease. With a powerful 5600W MPPT solar charger supporting a wide PV input range of 60V-150V, you can maximize your solar energy harvesting, significantly reducing your electricity bills and carbon footprint. For anyone looking for a reliable and efficient solar inverter in Bangladesh, the GTG10K48M100 offers a compelling solution.
Key Features of the GearUP GTG10K48M100 Inverter
Unmatched Power Output and Surge Capacity
The GearUP GTG10K48M100 delivers a continuous 10KW of pure sine wave power, making it suitable for a wide range of applications from household appliances to industrial machinery. What truly sets it apart is its incredible 30KW surge load capacity, allowing it to effortlessly start high-current inductive loads for short durations. This feature is crucial for motors, compressors, and pumps, ensuring smooth operation without tripping the system, a common requirement for many users in Bangladesh.
Robust Low-Frequency Design
Unlike high-frequency inverters, the GTG10K48M100 utilizes a low-frequency design with a large toroidal transformer. This design provides superior durability, stability, and reliability, especially in environments with fluctuating grid conditions. It offers better resistance to power spikes and sags, ensuring a longer lifespan and consistent performance, which is highly valued in the Bangladesh market.
Advanced MPPT Solar Charging
Equipped with a high-efficiency Maximum Power Point Tracking (MPPT) solar charger, this inverter can handle up to 5600W of solar panel input. The wide MPPT voltage range of 60V-150V allows for flexible solar panel configurations and optimizes energy harvesting even under varying sunlight conditions. This means more free, clean energy for your home or business in Bangladesh, maximizing your return on investment.
Pure Sine Wave Output for Sensitive Electronics
The inverter generates a pure sine wave output, identical to or even better than utility grid power. This ensures that all your sensitive electronic devices, from computers and medical equipment to delicate home appliances, operate safely and efficiently without any risk of damage or malfunction due to distorted waveforms. It's the ideal choice for powering every aspect of your life in Bangladesh.
Comprehensive Protection Features
Safety and longevity are paramount. The GearUP GTG10K48M100 comes with a full suite of protection features, including overload protection, short circuit protection, over-temperature protection, battery over/under voltage protection, and reverse polarity protection for PV input. These safeguards ensure the inverter and your connected appliances are protected from potential damage, providing peace of mind for users across Bangladesh.
User-Friendly Interface and Communication
Monitoring and managing your power system is made easy with an intuitive LCD display that provides real-time operational status, battery voltage, load power, and solar charging information. It also features LED indicators for quick status checks. Communication ports like RS232 and USB allow for easy data logging and remote monitoring (with optional accessories like SNMP or Wi-Fi modules), offering advanced control over your energy system.
Hybrid Functionality for Flexible Power
As a hybrid inverter, the GTG10K48M100 offers versatile power management. It can prioritize solar power, then battery, and finally the AC utility grid (if connected) or a generator, ensuring continuous power supply. This intelligent power flow management optimizes energy usage and minimizes reliance on the grid, perfect for navigating power outages common in many parts of Bangladesh.
Built for Bangladesh's Demands
Designed to perform reliably in diverse environments, the inverter operates efficiently within a wide temperature range of 0°C to 50°C and features intelligent variable speed fan cooling to maintain optimal operating temperatures. Its robust construction is ideal for the tropical climate and varying power conditions prevalent in Bangladesh.
Technical Specifications
| Feature |
Specification |
| Model |
GearUP GTG10K48M100 |
| Rated Power |
10000W / 12.5KVA |
| Surge Power |
30000W (for 20ms) |
| Battery Voltage |
48VDC |
| Output Voltage |
230VAC ± 2% |
| Output Frequency |
50Hz ± 0.1% |
| Waveform |
Pure Sine Wave |
| Efficiency (Line Mode) |
>95% |
| Efficiency (Battery Mode) |
>90% |
| Transfer Time |
<10ms (UPS mode) |
| Solar Charger (MPPT) |
| Max PV Array Power |
5600W |
| MPPT Voltage Range |
60VDC - 150VDC |
| Max PV Open Circuit Voltage |
180VDC |
| Max Solar Charge Current |
100A |
| AC Charger |
| Max AC Charge Current |
30A (Adjustable) |
| Max Combined Charge Current |
130A (Solar + AC) |
| AC Input Voltage Range |
170-280VAC (for appliances) |
| AC Input Frequency |
50Hz / 60Hz (Auto Sensing) |
| General |
| Protection |
Overload, Short Circuit, Over Temperature, Battery Over/Under Voltage, PV Reverse Polarity |
| Display |
LCD with LED indicators |
| Communication Ports |
RS232, USB, Dry Contact (Optional: SNMP, Wi-Fi) |
| WiFi Dongle |
Supported (Included) |
| Operating Temperature |
0°C to 50°C |
| Humidity |
5% to 95% (non-condensing) |
| Cooling |
Intelligent Variable Speed Fan |
| Transformer Type |
Toroidal Transformer |
| Dimensions (H x W x D) |
600mm x 320mm x 280mm |
| Net Weight |
Approximately 65 kg |
| Certifications |
CE, RoHS |
Benefits of Choosing GearUP GTG10K48M100
- Reliable Power for Critical Loads: With 10KW continuous and 30KW surge power, it reliably runs heavy appliances and industrial equipment, making it an excellent choice for businesses and large homes in Bangladesh.
- Significant Energy Savings: Maximize your solar energy utilization with the advanced MPPT charger, reducing your reliance on expensive grid electricity and lowering your utility bills. This is a major advantage for any household or enterprise in Bangladesh.
- Long-Term Durability: The robust low-frequency design and high-quality components ensure a long operational lifespan, providing excellent value for your investment in the long run.
- Peace of Mind with Comprehensive Protection: Advanced safety features protect your inverter and connected devices from various electrical anomalies, ensuring a secure and stable power supply.
- Environmental Friendliness: Harnessing solar energy reduces your carbon footprint, contributing to a greener and more sustainable future for Bangladesh.
Ideal Applications in Bangladesh
The GearUP GTG10K48M100 is highly versatile and perfectly suited for various applications across Bangladesh:
- Rural Homes and Farms: Provides stable and abundant power in areas with unreliable or no grid access, running everything from lights and fans to water pumps and agricultural machinery.
- Remote Offices and Workshops: Ensures continuous operation of computers, tools, and communication systems, critical for productivity in areas prone to power cuts.
- Backup Power for Critical Infrastructure: Ideal for hospitals, data centers, and telecommunication towers requiring uninterrupted power supply.
- Commercial Establishments: Powers shops, restaurants, and small factories, helping businesses avoid losses due to power outages.
- Off-Grid Living: Enables complete energy independence for those seeking to live off the grid anywhere in Bangladesh.
Installation and Usage Instructions (Summary)
Proper installation is crucial for the optimal performance and safety of your GearUP GTG10K48M100 inverter. While professional installation by a certified technician is always recommended, here’s a brief overview:
- Site Selection: Install the inverter in a cool, dry, well-ventilated area, away from direct sunlight, flammable materials, and moisture. Ensure adequate clearance for airflow around the unit.
- Battery Connection: Connect the 48V battery bank (lithium or lead-acid) to the inverter's DC terminals, observing correct polarity. Use appropriately sized cables to minimize voltage drop.
- Solar Panel Connection: Connect your solar array to the PV input terminals, ensuring the total voltage and current are within the specified MPPT range (60V-150V) and below the maximum open circuit voltage (180VDC).
- AC Input/Output: Connect the AC input from your utility grid or generator (if using hybrid mode) and connect your AC loads to the inverter's AC output terminals. Ensure all wiring is done according to local electrical codes in Bangladesh.
- Initial Startup: Follow the manual's sequence for powering on the system (e.g., battery first, then solar, then AC input). Configure settings via the LCD display as needed.
- Safety Precautions: Always disconnect all power sources before performing any maintenance. Use proper personal protective equipment. Never operate the inverter with damaged wiring.
Refer to the detailed user manual for comprehensive installation, operation, and troubleshooting guidelines.
Availability and Price of GearUP GTG10K48M100 in Bangladesh
The GearUP 10KW (Surge 30KW), 48V Low Frequency Off-Grid Hybrid Solar Inverter (GTG10K48M100) is readily available across Bangladesh. You can find this powerful and reliable inverter at authorized GearUP dealers and leading solar equipment suppliers nationwide. The competitive price for the GearUP GTG10K48M100 in Bangladesh is ৳180000 BDT, offering exceptional value for its robust features and high performance.
If you're searching for "GearUP GTG10K48M100 price in Bangladesh" or "best 10KW solar inverter in Bangladesh," you've found an excellent option. We ensure convenient delivery in Bangladesh to major cities like Dhaka, Chittagong, Sylhet, Khulna, and across all districts. Check with your local distributor for availability near me in Bangladesh and to inquire about warranty services, which typically include a 2-year manufacturer's warranty for peace of mind.
Invest in the GearUP GTG10K48M100 today and secure a stable, efficient, and sustainable power solution for your needs in Bangladesh.
