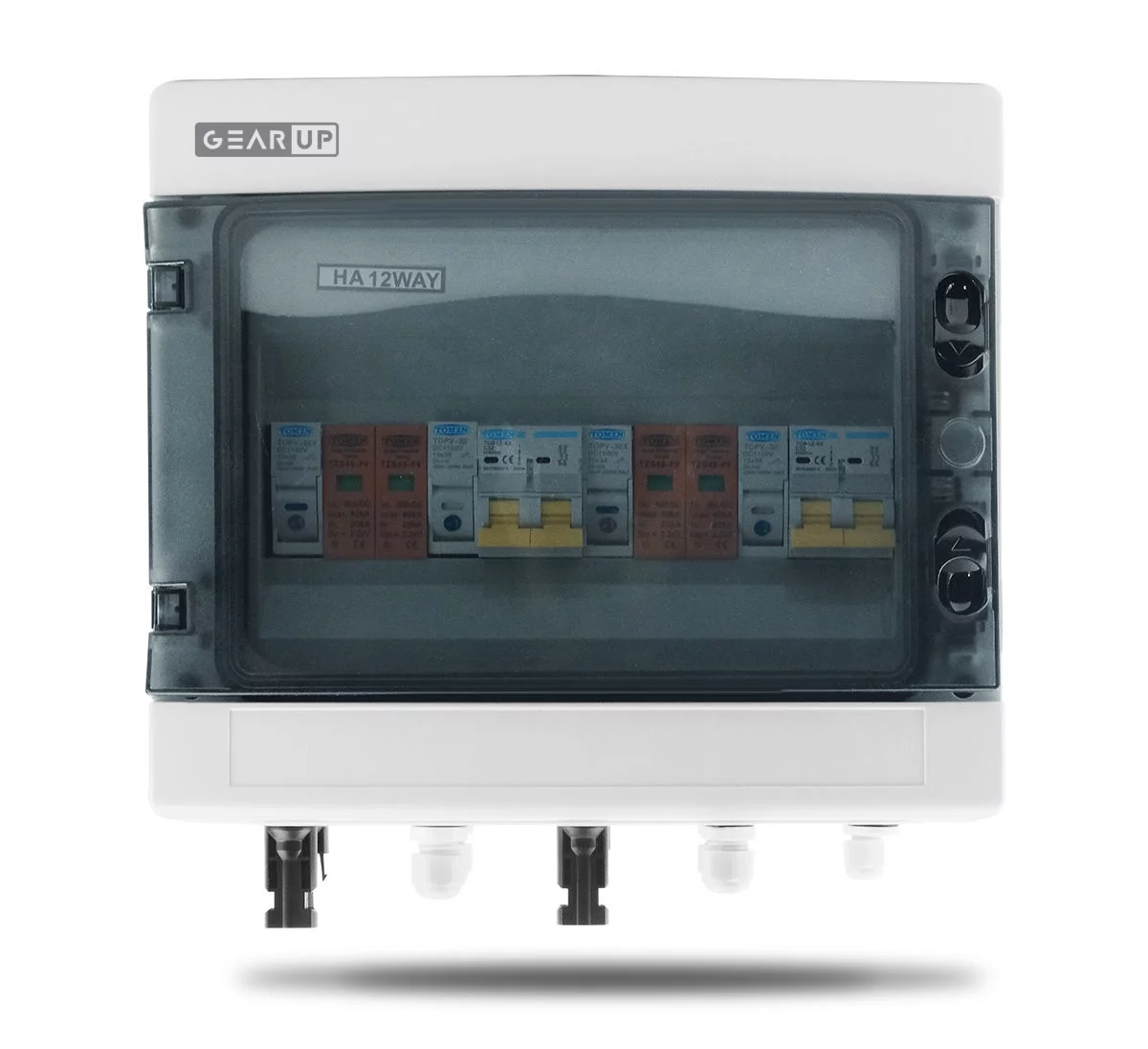

GearUP 12-Way DC PV Combiner Box with MCB, Fuse & SPD (IP65 Waterproof) - Maximize Your Solar Efficiency in Bangladesh
Empower your solar PV system with unparalleled safety, efficiency, and reliability using the advanced GearUP 12-Way DC PV Combiner Box with MCB, Fuse & SPD (IP65 Waterproof). Designed specifically for robust performance in challenging environments, this combiner box is an essential component for any medium to large-scale solar installation, ensuring optimal power harvesting and comprehensive protection for your valuable solar infrastructure. For those seeking the best solar solutions in Bangladesh, GearUP delivers cutting-edge technology right to your doorstep.
Overview & Introduction

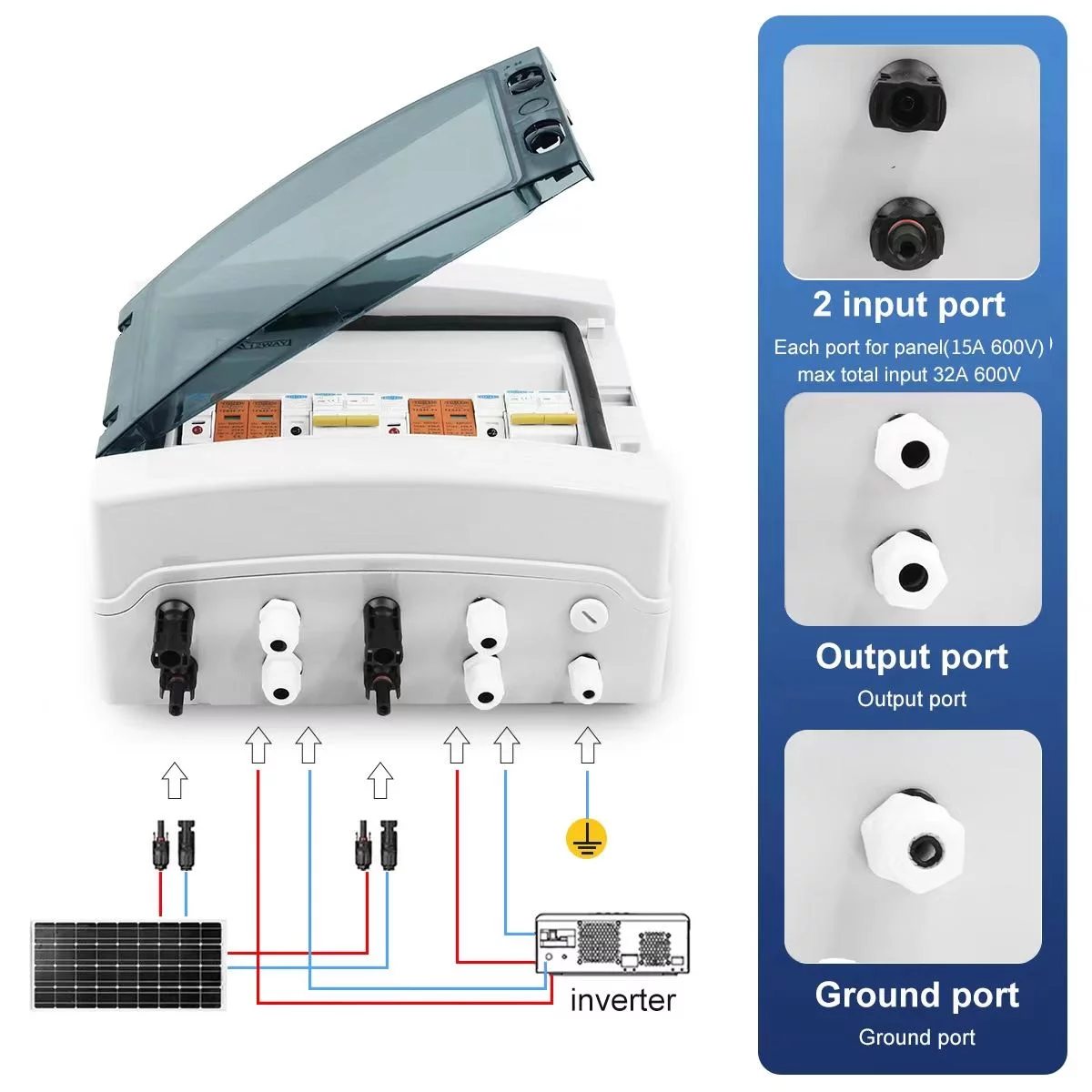

A DC PV Combiner Box acts as the critical interface between your solar panels and the inverter. It consolidates multiple DC strings from your solar array into a single output, providing a centralized point for overcurrent protection, surge protection, and circuit isolation. The GearUP 12-Way DC PV Combiner Box is engineered to handle up to 12 individual strings, making it ideal for residential, commercial, and industrial solar projects across Bangladesh. With its comprehensive safety features and durable, waterproof design, it stands as a cornerstone for a secure and high-performing solar power system.
GearUP is committed to bringing high-quality, reliable solar accessories to the Bangladesh market. This 12-way combiner box reflects our dedication to innovation, safety, and long-term performance, ensuring your investment in solar energy is protected and maximized.
Unmatched Safety & Performance for Your Solar System

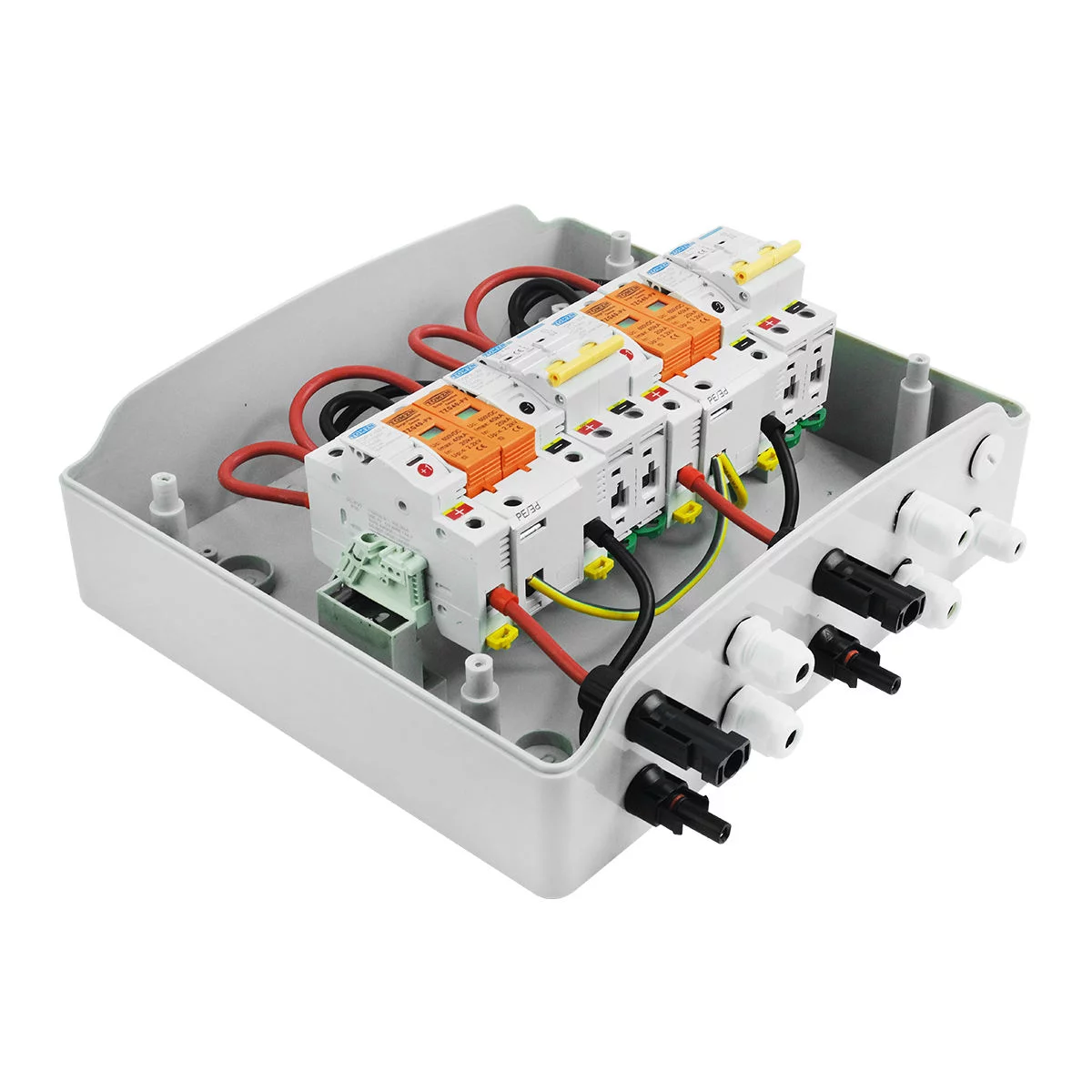

The fluctuating weather conditions and potential electrical anomalies demand a robust protection strategy for solar installations. The GearUP 12-Way DC PV Combiner Box integrates three layers of critical protection:
- DC Miniature Circuit Breaker (MCB): A high-capacity DC MCB provides primary overcurrent protection and allows for manual isolation of the entire PV array from the inverter, crucial for maintenance and emergency shutdowns.
- Individual DC Fuses: Each of the 12 input strings is equipped with its own DC fuse, preventing damage to other strings and the inverter in case of a short circuit or overcurrent fault within a single string. This granular protection enhances system resilience.
- Surge Protection Device (SPD): The integrated Type 2 SPD safeguards your entire system against damaging voltage surges caused by lightning strikes or grid disturbances, a common concern for solar installations in Bangladesh.
Beyond electrical protection, the IP65-rated enclosure ensures complete protection against dust ingress and powerful water jets, making it perfectly suited for the diverse climatic conditions found throughout Bangladesh, from heavy monsoon rains to dusty dry seasons. This robust construction guarantees longevity and consistent performance.
Key Features of the GearUP 12-Way DC PV Combiner Box
- 12-Way DC Input: Designed to efficiently combine up to 12 separate DC input strings from your solar panels, optimizing wiring and simplifying system architecture.
- High-Performance DC MCB: Features a robust 160A, 2-Pole DC Miniature Circuit Breaker for main circuit isolation and protection, ensuring safety during operation and maintenance.
- Individual DC Fuses (15A/1000V): Each of the 12 input strings is protected by a dedicated 15A/1000V DC fuse, offering precise overcurrent protection and fault isolation.
- Advanced Surge Protection Device (SPD): Equipped with a Type 2, 1000V DC, Imax 40kA SPD to defend against transient overvoltages from lightning or switching operations.
- IP65 Waterproof & Dustproof Enclosure: Constructed from durable, UV-resistant PC (Polycarbonate) material, providing superior protection against dust, rain, and harsh weather, making it ideal for outdoor installations in Bangladesh.
- High-Quality Components: All internal components are sourced from reputable manufacturers, ensuring long-term reliability and compliance with international standards.
- Easy Installation & Maintenance: Pre-wired for convenience, with clearly labeled terminals for quick and secure connections, significantly reducing installation time and effort.
- Wide Operating Voltage Range: Capable of handling DC voltages up to 1000V, compatible with most modern solar PV systems.
- Reliable GearUP Quality: Backed by GearUP's commitment to quality and performance, offering peace of mind for your solar investment.
Technical Specifications
Here are the detailed specifications for the GearUP 12-Way DC PV Combiner Box:
| Feature |
Specification |
| Product Name |
GearUP 12-Way DC PV Combiner Box |
| Input Strings |
12 |
| Output Strings |
1 |
| Max. Input Voltage (Voc) |
1000V DC |
| Max. Input Current per String |
15A |
| Max. Total Output Current |
180A |
| DC Circuit Breaker (MCB) |
160A, 2-Pole, 1000V DC |
| Fuse Rating per String |
15A/1000V DC (PV Fuse) |
| Surge Protection Device (SPD) |
Type 2, 1000V DC, Imax 40kA |
| Enclosure Material |
UV-resistant Polycarbonate (PC) |
| Protection Degree |
IP65 (Waterproof & Dustproof) |
| Operating Temperature |
-30°C to +70°C |
| Relative Humidity |
0-95% (non-condensing) |
| Dimensions (L x W x H) |
400 mm x 350 mm x 150 mm |
| Weight |
7.8 kg |
| Mounting Type |
Wall-mounted |
| Standards Compliance |
IEC 61439-1, IEC 61439-2, IEC 61643-11 |
| Warranty |
1 Year Standard Warranty (Terms & Conditions Apply) |
Benefits of Choosing GearUP for Your Solar Project
- Enhanced System Safety: Critical protection against overcurrents, short circuits, and surges ensures the longevity and safe operation of your entire solar PV system.
- Improved Efficiency & Performance: By combining strings efficiently and protecting against faults, the combiner box helps maintain optimal power generation from your solar array.
- Durability & Longevity: The IP65-rated, UV-resistant enclosure guarantees the internal components are protected from the elements, ensuring years of trouble-free operation even in the harsh Bangladesh climate.
- Simplified Installation: Pre-wired and clearly labeled, this combiner box significantly reduces installation time and complexity, making it a preferred choice for installers in Bangladesh.
- Cost-Effectiveness: By protecting expensive components like solar panels and inverters, the combiner box helps prevent costly repairs and replacements, offering excellent long-term value.
- Peace of Mind: With GearUP's commitment to quality and comprehensive safety features, you can rest assured that your solar investment is well-protected.
Ideal Applications
The GearUP 12-Way DC PV Combiner Box is versatile and suitable for a wide range of solar energy applications:
- Residential Solar Systems: For larger home installations requiring multiple strings.
- Commercial Solar Installations: Perfect for businesses, offices, and small factories.
- Industrial Solar Projects: Provides robust protection for industrial-scale solar power generation.
- Agricultural Solar Pumping Systems: Ensures reliable operation of solar-powered irrigation.
- Off-Grid and On-Grid Systems: Essential for both types of solar power setups, enhancing safety and performance.
Installation & Maintenance Guide (General)
While the GearUP 12-Way DC PV Combiner Box is designed for ease of use, professional installation is always recommended to ensure safety and compliance with local electrical codes in Bangladesh. Key points include:
- Professional Installation: Always engage certified solar technicians for installation to ensure proper wiring and grounding.
- Proper Wiring: Ensure all DC input and output cables are correctly sized and terminated according to specifications.
- Mounting: Mount the box in a shaded area if possible, away from direct prolonged sunlight, and ensure adequate ventilation.
- Regular Checks: Periodically inspect the box for any signs of physical damage, loose connections, or water ingress.
- Fuse Replacement: In case of a blown fuse, replace it with a fuse of the exact same rating (15A/1000V DC PV Fuse).
GearUP 12-Way DC PV Combiner Box Price in Bangladesh & Availability
The GearUP 12-Way DC PV Combiner Box with MCB, Fuse & SPD (IP65 Waterproof) is available at a competitive price of ৳12000.00 BDT in Bangladesh. GearUP strives to offer the best price in Bangladesh for high-quality solar components, ensuring accessibility for all solar enthusiasts and businesses.
You can find this essential solar accessory through authorized GearUP distributors and leading e-commerce platforms across Bangladesh. For specific inquiries about where to buy this product near me in Bangladesh, please check our website or contact our customer support. We offer reliable delivery in Bangladesh to major cities like Dhaka, Chittagong, Sylhet, Khulna, and throughout the country, ensuring you receive your product promptly and securely.
Invest in the safety and efficiency of your solar system today. This GearUP Combiner Box is a smart choice for anyone looking for a robust and reliable solution in the Bangladesh market.
Why Buy from GearUP?
GearUP is a trusted name in the renewable energy sector in Bangladesh, known for its commitment to quality, innovation, and customer satisfaction. When you choose GearUP, you benefit from:
- Premium Quality Products: We use only the best materials and components, tested to meet international standards.
- Expert Support: Our team is ready to assist you with product information and after-sales service.
- Reliable Warranty: Enjoy peace of mind with our standard product warranty.
- Competitive Pricing: We aim to provide the best value for your investment in Bangladesh.
Order Your GearUP 12-Way DC PV Combiner Box Today!
Don't compromise on the safety and performance of your solar PV system. Choose the GearUP 12-Way DC PV Combiner Box with MCB, Fuse & SPD (IP65 Waterproof) for superior protection and efficiency. At just ৳12000.00 BDT, it's an investment that pays for itself through enhanced system longevity and reduced maintenance costs. Secure your solar future with GearUP – the smart choice for solar accessories in Bangladesh. Contact your nearest dealer or order online today for fast delivery in Bangladesh!
