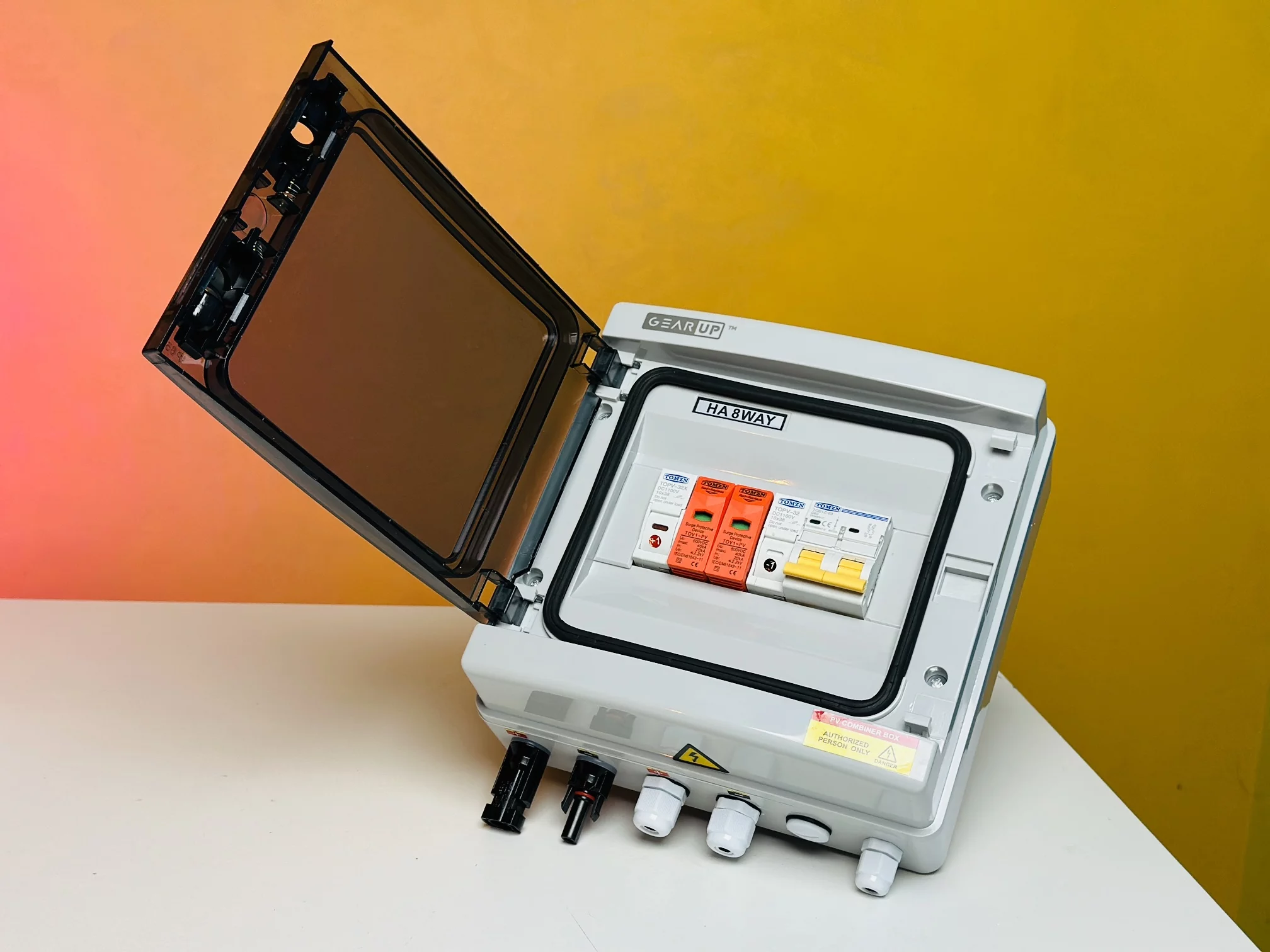

GearUP DC PV Combiner Box 8 Way (1 String In 1 Out) with DC MCB, Fuse, SPD, and IP65 Waterproof Box - Price in Bangladesh

Overview

The GearUP DC PV Combiner Box 8 Way is an essential component for any robust and efficient solar photovoltaic (PV) system, especially designed to meet the demands of the Bangladesh market. This high-quality combiner box acts as a central hub for multiple DC input strings from your solar panels, consolidating them into a single output for your inverter. Engineered with superior protection features including DC Miniature Circuit Breakers (MCBs), DC Fuses, and a Surge Protective Device (SPD), it ensures the safety, reliability, and longevity of your entire solar power setup. With an IP65 waterproof rating, this combiner box is built to withstand the diverse weather conditions found across Bangladesh, from heavy monsoon rains to intense heat, making it perfect for both residential and commercial solar installations.

Investing in a reliable combiner box like the GearUP 8 Way is crucial for optimizing your solar system's performance and safeguarding your valuable assets. It simplifies wiring, streamlines maintenance, and provides critical protection against overcurrents, short circuits, and lightning surges. For solar installers and enthusiasts looking for the best DC combiner box in Bangladesh, the GearUP 8 Way offers an unparalleled combination of features, durability, and safety at a competitive price.

Key Features

• 8-Way Configuration (1 String In / 1 String Out per Way): Designed to handle up to 8 independent solar PV strings, effectively combining their outputs into a single, manageable feed for your inverter. This modular design enhances system flexibility and troubleshooting ease.
• Integrated DC MCBs (Miniature Circuit Breakers): Each string is equipped with a dedicated DC MCB, providing robust overcurrent and short-circuit protection. This allows for individual string isolation for maintenance or fault finding without shutting down the entire system.
• High-Quality DC Fuses: Additional layer of protection with individual DC fuses for each string, ensuring rapid disconnection in case of severe overcurrent, protecting your solar panels and inverter from potential damage.
• Surge Protective Device (SPD): Essential for safeguarding your solar system against damaging voltage spikes caused by lightning strikes or other transient overvoltages. The integrated SPD diverts excess energy safely to the ground.
• IP65 Waterproof and Dustproof Enclosure: Constructed from high-grade, UV-resistant PC/ABS material, the enclosure boasts an IP65 rating. This ensures complete protection against dust ingress and powerful water jets, making it suitable for outdoor installation in any weather condition in Bangladesh.
• High Voltage and Current Capacity: Capable of handling up to 1000V DC input and a substantial total output current, making it compatible with a wide range of solar panel configurations and inverter types commonly used in Bangladesh.
• Enhanced System Safety: Provides multiple layers of protection against electrical faults, ensuring the safety of personnel and equipment. Meets international safety standards for PV installations.
• Simplified Wiring and Installation: Pre-wired and clearly labeled terminals reduce installation time and complexity, minimizing potential wiring errors. Its compact design facilitates easy mounting.
• Durable and Long-Lasting: Built with high-quality components designed for continuous outdoor operation, offering excellent resistance to corrosion, UV radiation, and extreme temperatures, guaranteeing a long service life.

Why Choose GearUP PV Combiner Box for Your Solar Project in Bangladesh?

The GearUP DC PV Combiner Box stands out in the Bangladesh market due to its comprehensive safety features and robust construction. In a country where grid stability can sometimes be unpredictable and weather conditions demanding, having a reliable combiner box with integrated MCBs, fuses, and SPD is not just an option, but a necessity. It not only protects your investment in solar panels and inverters but also ensures the continuous and safe operation of your renewable energy system. Its IP65 rating makes it an ideal choice for rooftops, open fields, and industrial installations across Bangladesh, ensuring peace of mind regardless of the environment.

Technical Specifications

Benefits of Using a DC PV Combiner Box

A DC PV combiner box is more than just an enclosure; it's a critical safety and performance enhancement for your solar power system. Here are the key benefits:

• Enhanced System Safety: By integrating MCBs, fuses, and SPDs, the combiner box provides robust protection against electrical faults, overcurrents, short circuits, and lightning surges, significantly reducing the risk of fire or damage to expensive components.
• Simplified Wiring and Installation: It consolidates multiple DC strings into a single output, reducing the amount of wiring needed to connect to the inverter. This leads to cleaner installations, fewer connection points, and easier troubleshooting.
• Improved Performance Monitoring: With individual string protection, it becomes easier to identify and isolate underperforming or faulty strings, allowing for quicker repairs and minimizing downtime, thus ensuring optimal energy harvest.
• Troubleshooting Ease: In the event of a fault, the individual string protection allows for easy identification of the problematic string without affecting the operation of other healthy strings, simplifying maintenance and repair processes.
• Protection Against Surges and Overcurrents: The integrated SPD shields your system from voltage spikes, while MCBs and fuses protect against current overloads, crucial for the long-term health of your solar panels and inverter.
• Extended Lifespan of Components: By protecting against electrical stresses, the combiner box helps to extend the operational life of your solar panels, inverter, and associated cabling, maximizing your return on investment.
• Compliance with Safety Standards: Using a properly designed and certified combiner box helps ensure your solar installation complies with local and international electrical safety standards.

Usage and Installation Instructions

The GearUP DC PV Combiner Box 8 Way is designed for straightforward installation, but it is highly recommended that installation be performed by a qualified and certified solar technician or electrician. Proper installation ensures safety, compliance, and optimal performance.

1. Mounting: Choose a suitable, easily accessible location near your solar array, ensuring it's protected from direct mechanical impact. Use appropriate fasteners to securely mount the IP65 enclosure to a wall or sturdy structure.
2. Wiring Input Strings: Connect the positive (+) and negative (-) leads from each of your 8 solar PV strings to the designated input terminals within the combiner box, ensuring correct polarity. Each string should pass through its dedicated fuse and MCB.
3. Wiring Output to Inverter: Connect the combined DC positive (+) and negative (-) output from the combiner box to the DC input terminals of your solar inverter, again strictly observing polarity.
4. Grounding: Ensure the combiner box is properly grounded according to local electrical codes. The integrated SPD requires a reliable ground connection to function effectively.
5. Testing: Before energizing the system, perform thorough continuity and voltage checks to confirm all connections are secure and polarities are correct. Test the functionality of the MCBs and ensure the SPD is correctly wired.
6. Maintenance: Periodically inspect the combiner box for any signs of wear, corrosion, or loose connections. Ensure the enclosure seals are intact to maintain its IP65 rating.

Always refer to the detailed instruction manual provided with the product for specific wiring diagrams and safety precautions.

Availability and Price in Bangladesh

The GearUP DC PV Combiner Box 8 Way (1 String In 1 Out) with DC MCB, Fuse, SPD, and IP65 Waterproof Box is readily available for purchase across Bangladesh. You can find this essential solar component at leading solar equipment suppliers, authorized distributors, and reputable online e-commerce platforms specializing in renewable energy solutions. The competitive price for this high-quality combiner box is ৳6000.00 BDT, making it an excellent value proposition for the advanced features and robust protection it offers.

For those searching for "GearUP DC PV Combiner Box 8 Way price in Bangladesh" or "solar combiner box near me in Bangladesh", you can expect consistent pricing from authorized sellers. Many suppliers offer convenient delivery in Bangladesh, reaching major cities like Dhaka, Chittagong, Sylhet, Khulna, and beyond. We recommend checking with local solar retailers or online stores to confirm current stock and delivery options. This product is poised to be a top choice for solar installers and homeowners looking for durable and reliable solar system components in the Bangladesh market.

Customer Support & Warranty

GearUP products are backed by reliable customer support and a standard manufacturer's warranty, ensuring peace of mind for your investment. For any technical queries or warranty claims, customers in Bangladesh can reach out to authorized dealers or the brand's designated service centers.

Conclusion

The GearUP DC PV Combiner Box 8 Way is an indispensable solution for anyone building or upgrading a solar PV system in Bangladesh. With its comprehensive safety features, including individual DC MCBs, fuses, and a robust SPD, all housed within an IP65 waterproof enclosure, it offers unparalleled protection and operational efficiency. Priced at an affordable ৳6000.00 BDT, this combiner box represents a smart investment towards a safer, more reliable, and higher-performing solar energy system. Ensure the longevity and optimal performance of your solar setup by choosing the GearUP DC PV Combiner Box 8 Way, widely available and supported across Bangladesh.
