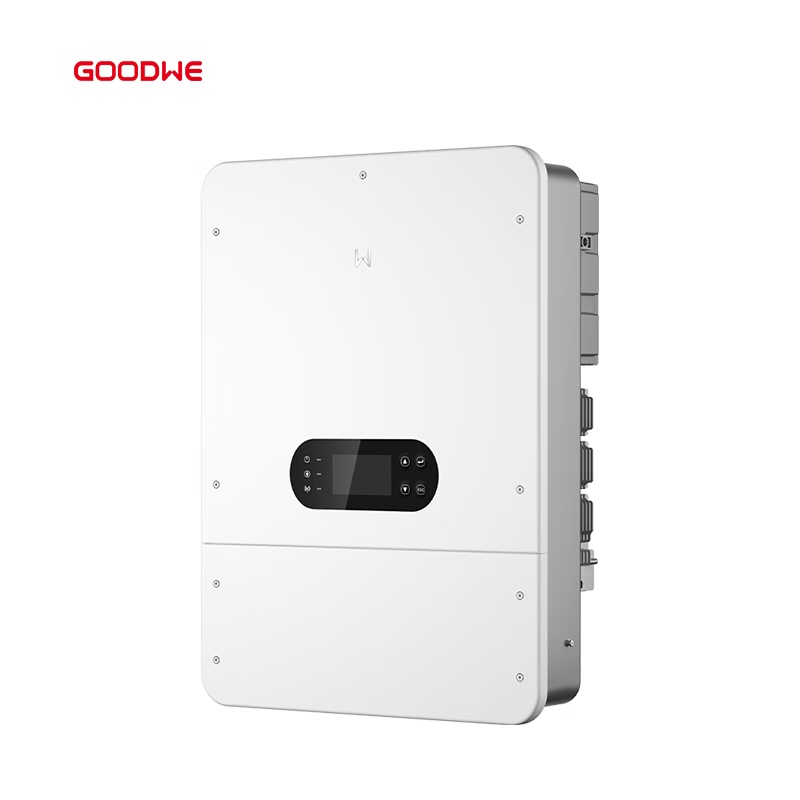

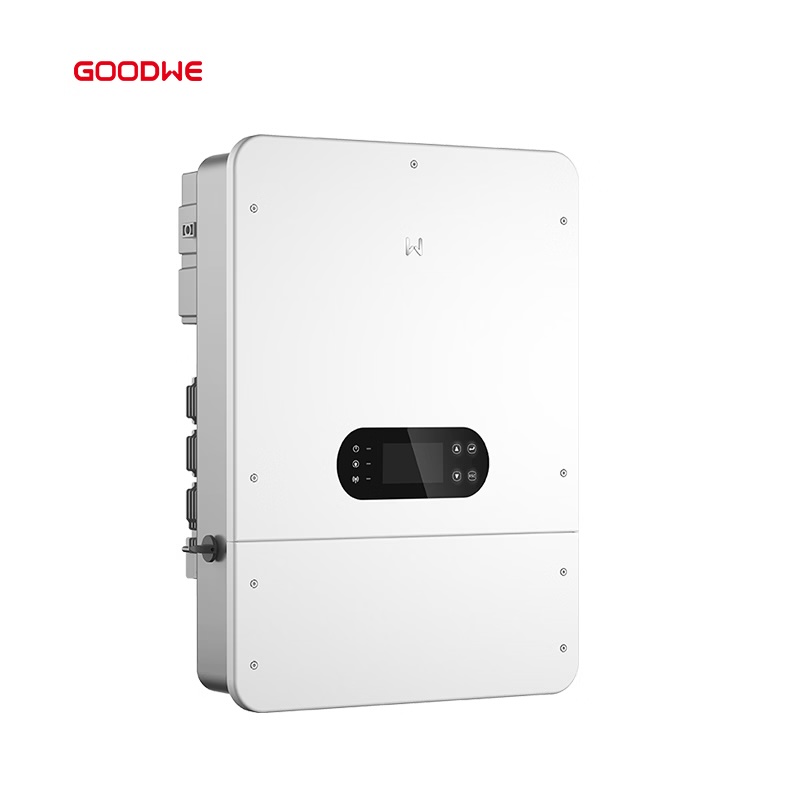

GoodWe 8KW 3-Phase Hybrid Solar Inverter (GW8K-ET-L-G10) – Advanced Energy Solution for Bangladesh
Empower your home or business with sustainable energy using the state-of-the-art GoodWe 8KW 3-Phase Hybrid Solar Inverter (GW8K-ET-L-G10). Engineered for efficiency, reliability, and smart energy management, this advanced hybrid inverter is the perfect solution for modern power needs in Bangladesh. Designed to integrate seamlessly with both solar panels and battery storage, it ensures continuous power supply, significant electricity bill savings, and energy independence, even during grid outages.
The GoodWe GW8K-ET-L-G10 is a testament to cutting-edge solar technology, offering a robust and flexible platform for optimizing solar energy consumption. Whether you're looking to reduce your carbon footprint, protect against power interruptions, or simply gain more control over your energy usage, this 3-phase hybrid inverter delivers unparalleled performance. Discover the future of energy with GoodWe, now readily available across Bangladesh.
Overview of GoodWe GW8K-ET-L-G10
The GoodWe GW8K-ET-L-G10 is an 8-kilowatt, 3-phase hybrid inverter from GoodWe's acclaimed ET-L G10 series. This innovative inverter is capable of managing power flow from solar panels, batteries, and the utility grid simultaneously, making it an ideal choice for both residential and light commercial applications in Bangladesh. Its hybrid functionality allows users to store excess solar energy in batteries for later use, feed it back into the grid, or draw from the grid when solar production is low, ensuring an optimized and uninterrupted power supply.
With its high efficiency, intelligent energy management features, and robust build, the GoodWe 8KW 3-Phase Hybrid Solar Inverter is designed to thrive in diverse environmental conditions, providing stable and reliable power for years to come. It represents a smart investment for anyone seeking to embrace renewable energy and achieve genuine energy security in Bangladesh.
Key Features & Benefits
- True Hybrid Functionality: Seamlessly manages solar power generation, battery charging and discharging, and grid interaction. It allows for self-consumption optimization, time-of-use management, and acts as a reliable backup power source during outages.
- 3-Phase Output: Specifically designed for 3-phase electrical systems, commonly found in larger homes, commercial establishments, and industries in Bangladesh, ensuring balanced power distribution and stable operation for heavy loads.
- High Efficiency: Boasting a maximum efficiency of 98.2% and Euro efficiency of 97.5%, the GW8K-ET-L-G10 ensures maximum conversion of solar energy into usable electricity, minimizing power loss and maximizing savings.
- Dual MPPT Design: Equipped with two Maximum Power Point Trackers (MPPTs), it allows for flexible solar panel array design and optimizes energy harvest even when panels are facing different orientations or are partially shaded. Each MPPT can handle up to 13A input current.
- Wide Battery Compatibility: Compatible with a broad range of high-voltage lithium-ion batteries (180-600V), offering flexibility in choosing the best storage solution for your needs. Supports prominent battery brands for seamless integration.
- Uninterrupted Power Supply (UPS Function): Provides critical backup power with an automatic switchover time of less than 10 milliseconds, ensuring essential appliances continue to run seamlessly during grid failures.
- Intelligent Energy Management: Advanced algorithms optimize energy flow, prioritizing self-consumption, battery charging, or grid export based on user preferences and energy rates, leading to significant cost reductions.
- Smart Monitoring & Control: Built-in Wi-Fi communication (with optional LAN/RS485) allows for real-time monitoring of system performance via the GoodWe SEMS Portal or mobile app, accessible from anywhere in Bangladesh or abroad.
- Robust & Durable Design: With an IP65 ingress protection rating, the inverter is dust-tight and protected against water jets, making it suitable for outdoor installation and ensuring longevity in Bangladesh's varying climate.
- Quiet Operation: Utilizes natural convection cooling, resulting in a low noise emission of less than 30 dB, ensuring a peaceful environment.
Technical Specifications: GoodWe GW8K-ET-L-G10
Below is a detailed specification table for the GoodWe 8KW 3-Phase Hybrid Solar Inverter (GW8K-ET-L-G10), providing all the necessary technical data for your solar project in Bangladesh.
| Parameter |
Specification |
| Input Data (DC) |
| Max. DC Power |
12000 W |
| Max. PV Input Voltage |
1000 V |
| MPPT Operating Voltage Range |
180 ~ 850 V |
| Start-up Voltage |
200 V |
| Nominal Input Voltage |
600 V |
| Max. Input Current per MPPT |
13 A |
| Max. Short Circuit Current per MPPT |
16 A |
| Number of MPPTs |
2 |
| Strings per MPPT |
1 |
| Battery Data |
| Battery Type |
Li-Ion (High Voltage) |
| Battery Voltage Range |
180 ~ 600 V |
| Max. Charge/Discharge Current |
25 A |
| Max. Charge/Discharge Power |
8000 W |
| Output Data (AC On-Grid) |
| Nominal AC Power |
8000 W |
| Max. AC Power |
8800 W |
| Nominal AC Voltage |
3/N/PE, 230/400 V |
| AC Grid Frequency |
50 / 60 Hz |
| Max. Output Current |
12.8 A |
| Power Factor |
0.8 leading to 0.8 lagging |
| THDi |
<3% |
| Output Data (AC Back-up) |
| Max. Output Power |
8000 W |
| Max. Output Current |
12.8 A |
| Nominal AC Voltage |
3/N/PE, 230/400 V |
| Nominal AC Frequency |
50 / 60 Hz |
| Auto Switch Time |
<10 ms |
| Efficiency |
| Max. Efficiency |
98.2% |
| Euro Efficiency |
97.5% |
| Max. Battery Charge/Discharge Efficiency |
97.5% |
| General Data |
| Dimensions (H x W x D) |
516 x 440 x 180 mm |
| Weight |
24 kg |
| Topology |
Transformerless |
| Operating Temperature Range |
-35 °C to 60 °C |
| Protection Degree |
IP65 |
| Noise Emission |
<30 dB |
| Cooling |
Natural Convection |
| Communication |
Wi-Fi (standard), LAN (optional), RS485 |
| Display |
LCD & App |
| Warranty |
5 Years (Standard, extendable) |
Ideal Applications for GoodWe GW8K-ET-L-G10 in Bangladesh
The GoodWe 8KW 3-Phase Hybrid Solar Inverter is perfectly suited for a wide range of applications across Bangladesh:
- Large Residential Homes: For households with higher energy demands and 3-phase power connections, seeking to maximize solar self-consumption and achieve energy independence.
- Small to Medium Commercial Establishments: Businesses like offices, retail shops, clinics, or workshops can significantly reduce operational costs and ensure business continuity with reliable backup power.
- Agricultural Setups: Powering irrigation pumps, cold storage, and other essential equipment in rural areas where grid stability can be an issue.
- Educational Institutions: Schools and colleges can benefit from reduced electricity bills and provide a stable power supply for classrooms and labs.
- Anywhere with Unstable Grid: In areas of Bangladesh experiencing frequent power cuts, the inverter's robust backup feature is invaluable.
Installation and Usage Instructions (Brief)
Installing the GoodWe GW8K-ET-L-G10 requires professional expertise to ensure safety and optimal performance. It involves:
- Site Assessment: Determining the best location for the inverter, considering sunlight exposure for panels and proximity to batteries/grid connection.
- Mounting: Securely mounting the IP65-rated inverter on a wall, suitable for both indoor and outdoor environments.
- Wiring: Connecting solar panels, batteries, and the utility grid according to national electrical codes and GoodWe's specific instructions.
- Commissioning: Powering on the system, configuring settings via the LCD display or mobile app, and performing initial checks.
- Monitoring: Utilizing the GoodWe SEMS Portal for continuous monitoring of energy production, consumption, battery status, and system health.
Always consult with certified solar technicians for installation to ensure compliance with local regulations and to maximize the lifespan and efficiency of your GoodWe inverter.
Why Choose GoodWe for Your Solar Needs in Bangladesh?
GoodWe is a globally recognized, leading manufacturer of PV inverters and energy storage solutions. Their commitment to innovation, quality, and customer satisfaction makes them a preferred choice for solar projects worldwide, including in the dynamic Bangladesh market. By choosing the GoodWe GW8K-ET-L-G10, you are investing in:
- Proven Reliability: GoodWe inverters are known for their robust performance and durability.
- Cutting-Edge Technology: Continuous innovation ensures you receive the latest in solar energy management.
- Global Support, Local Presence: While a global brand, GoodWe has a strong network and support system in Bangladesh through its distributors and service partners.
- Comprehensive Warranty: A standard 5-year warranty, extendable to 10 or 15 years, provides long-term peace of mind.
GoodWe GW8K-ET-L-G10 Availability & Price in Bangladesh
The GoodWe 8KW 3-Phase Hybrid Solar Inverter (GW8K-ET-L-G10) is readily available through authorized distributors and solar solution providers across Bangladesh. You can find this advanced inverter in major cities like Dhaka, Chittagong, Sylhet, Khulna, and other regions where solar energy adoption is growing rapidly. For those searching for "GoodWe 8KW 3-Phase Hybrid Solar Inverter near me", a quick search online or inquiry with local solar companies will connect you with a reliable supplier.
Regarding the GoodWe GW8K-ET-L-G10 price in Bangladesh, it typically ranges from ৳295,000 to ৳340,000, depending on the retailer, included services (like installation), and current market conditions. We strive to offer the best price in Bangladesh for this high-performance inverter, ensuring you get excellent value for your investment. We also provide efficient delivery in Bangladesh, ensuring your product reaches you safely and promptly.
Invest in the GoodWe 8KW 3-Phase Hybrid Solar Inverter today and take a significant step towards a sustainable, energy-independent future for your home or business in Bangladesh!
