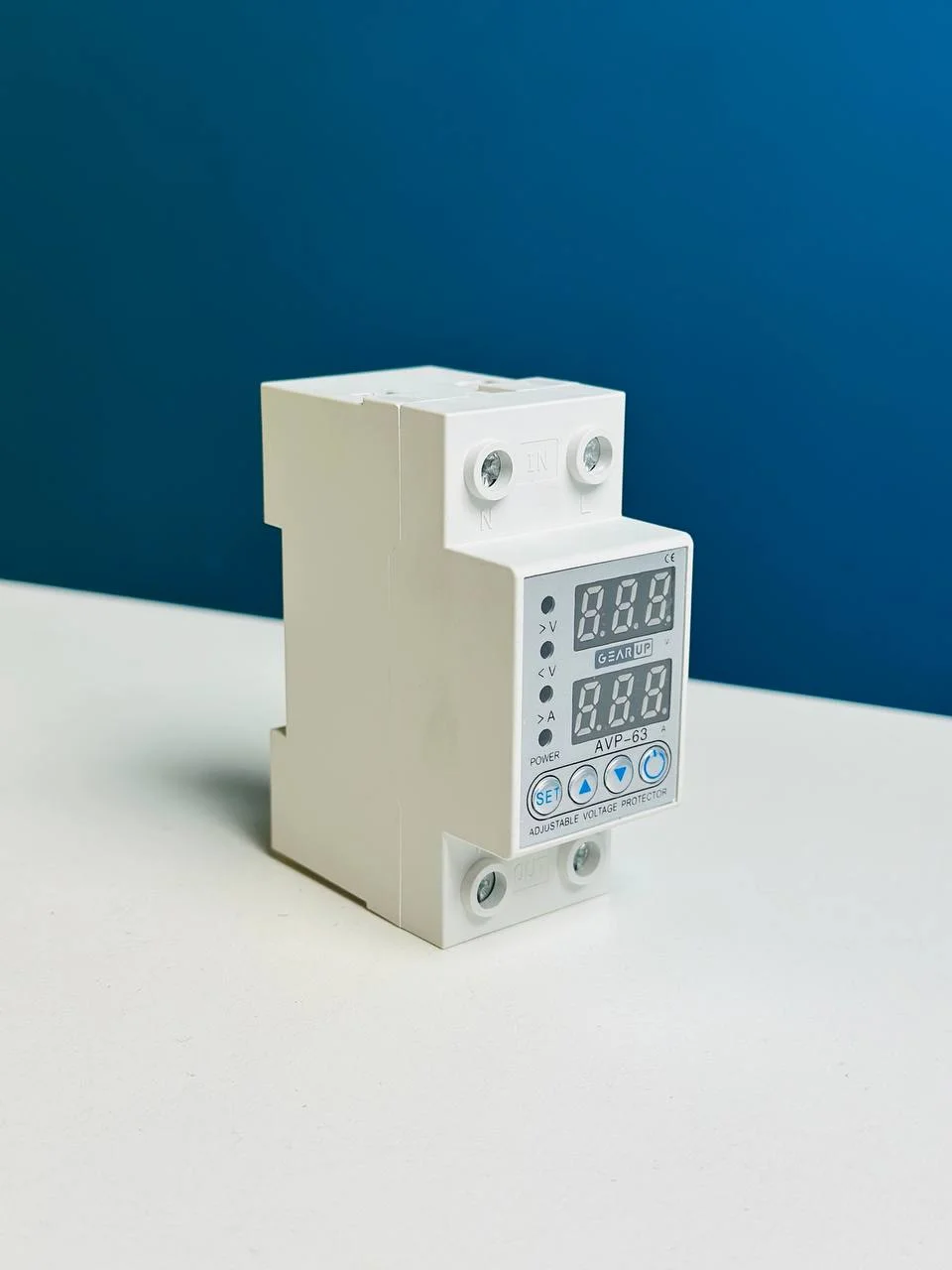

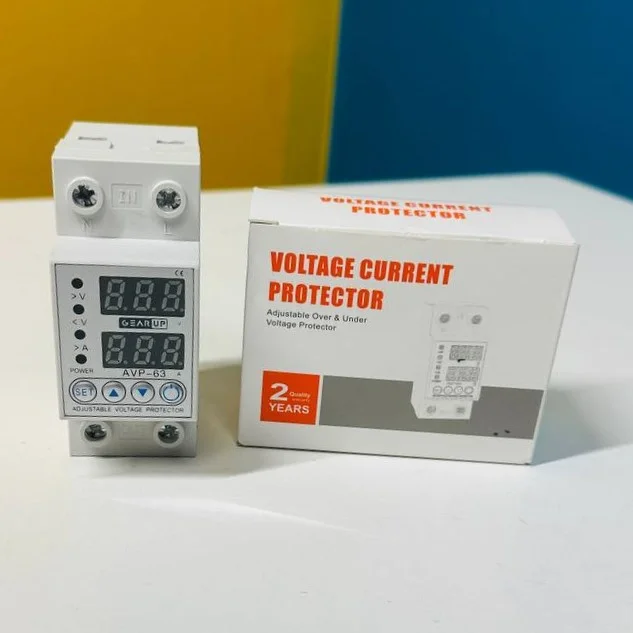

Adjustable Overvoltage + Undervoltage and Overcurrent Protector 2P 1A-63A Adjustable Digital Display (GearUP AVP-63)
0% OFF
Circuit Breaker by GearUP

Adjustable Overvoltage + Undervoltage and Overcurrent Protector 2P 1A-63A Adjustable Digital Display (GearUP AVP-63)

Product ID: 14920
Brand: GearUP
Warranty: 7 Days
No reviews yet
৳800 ৳800 Save ৳0
In stock (260 available)

Shipping Options

Office Pickup

Free

Pick up from our office

Inside Dhaka

৳50

1-3 business days

Outside Dhaka

৳100

2-5 business days

GearUP AVP-63 Automatic Voltage Protector Price In Bangladesh

Functions of GearUP AVP-63:

  1. Over-voltage protection

2. Under-voltage protection

3. Over-current protection

4. Automatic recovery

5. Voltage display(voltage measurement)

6. Current display (current measurement)

Product Parameters of GearUP AVP-63:

1. Electrical Specifications

  • Supply Terminals: N-L
  • Rated Supply Voltage:
    • AC: 320V
  • Rated Frequency: 50Hz
  • Voltage Setting Range:
    • AC: 80-300V (U setting operating range)
  • Overvoltage Trip Delay: 0.5s (no delay)
  • Voltage Accuracy: <1%
  • Max Operating Phase Voltage: 350V
  • Max Operating Current: 63A
  • Altitude Limit: ?2000m
  • Ambient Temperature: -25C to +50C
  • Humidity Tolerance: ?50% at 40C (no condensation)
  • Storage Temperature:-25C to +55C
  • Dimensions: 512  960mm

2. Front Panel Indicators & Controls

  • Indicators:
    • >V (Overvoltage)
    • <V (Undervoltage)
    • >A (Overcurrent)
    • POWER (Normal operation)
  • Controls:
    • Menu selection
    • Digital display
    • ON/OFF switch

3. Setup Menu (Programmable Settings)

Parameter Default Adjustable Range Description
P-1 Power-on time 5s 1-99s Delay before activation
P-2 Recovery time 30s 1-99s Delay after fault recovery
P-3 Overvoltage 300V 130-300V (DC), 80-300V (AC) Upper voltage limit
P-4 Overvoltage recovery 255V 128-285V Reset threshold after overvoltage
P-5 Undervoltage 80V 80-210V Lower voltage limit
P-6 Undervoltage recovery 115V 80-210V Reset threshold after undervoltage
P-7 Voltage line time 0.5s 0.1-10s Response time for voltage changes
P-8 Voltage correction Real-time -10% to +10% Manual voltage calibration
P-9 Power current 63A 14-63A Max current threshold
P-10 Current trip time 0.1s 0.1-10s Overcurrent response delay
P-11 Current counter OFF 0-20 times Counts overcurrent events
P-12 Current adjustment Real-time -10% to +10% Manual current calibration
P-13 Frequency adjustment Real-time 2.5% Frequency calibration (AC only)
P-14 Fast power-down protection ON ON/OFF Emergency cutoff feature
P-15 Automatic reset ON ON/OFF Auto-recovery after fault
P-16 Energy-saving mode ON/OFF ON/OFF Reduces power consumption
P-17 Lock 000-999 Password-protected settings Prevents unauthorized changes

Note: In DC mode, only voltage is displayed (no current reading).

How to Use the Device

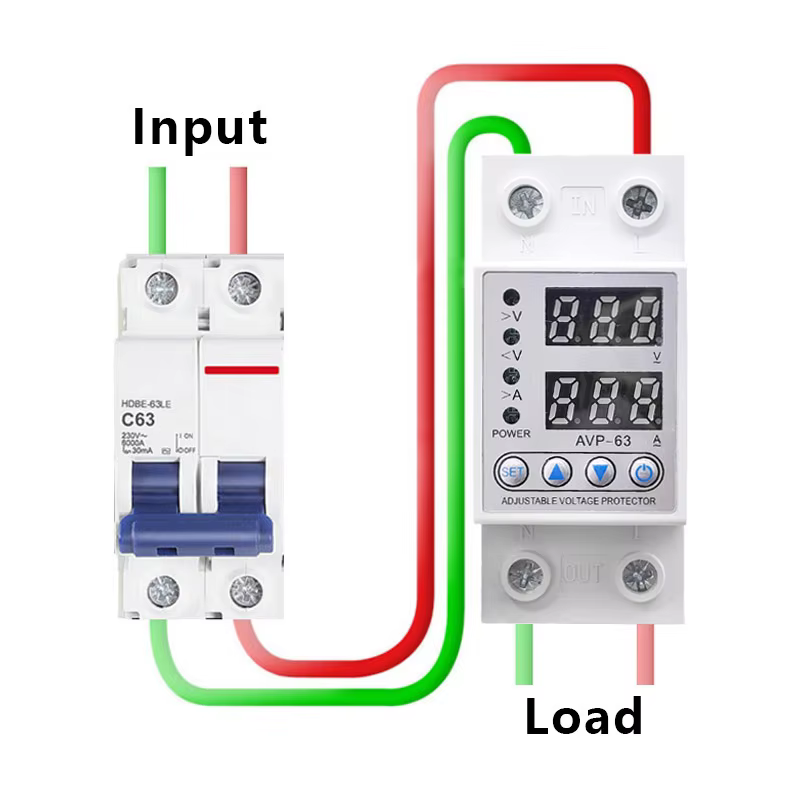

  1. Power Connection:
    • Connect supply terminals (N-L) to AC (320V) or DC (80-300V) power.
    • Ensure voltage/frequency are within rated limits.
  2. Initial Setup:
    • Use the menu selection buttons to navigate parameters (P-1 to P-17).
    • Adjust thresholds (e.g., over/undervoltage, current limits) as needed.
  3. Operation:
    • Indicators: Monitor >V, <V, >A, and POWER for system status.
    • Protections:
      • Over/undervoltage triggers a shutdown (adjustable delay: P-7, P-10).
      • Overcurrent trips after a set time (P-10).
    • Recovery: Automatic (P-15) or manual reset after faults.
  4. Calibration:
    • Use P-8 (voltage) and P-12 (current) to fine-tune readings.
    • For AC systems, adjust frequency via P-13.
  5. Safety Features:
    • Enable fast power-down (P-14) for emergency cutoff.
    • Set a lock code (P-17) to prevent unauthorized changes.
  6. Environment:
    • Operate within temperature (-25C to +50C) and altitude (?2000m) limits.

Note: Refer to the devices manual for detailed wiring diagrams and safety compliance.

Disclaimer:
Product descriptions and technical specifications on this website may be generated with the assistance of AI and are provided for reference purposes only. Actual product features, performance, and specifications may vary — please verify all details directly with the official manufacturer's website before purchase. We do not manufacture; we are a seller and are not responsible for discrepancies in product features, behavior, or specifications.
