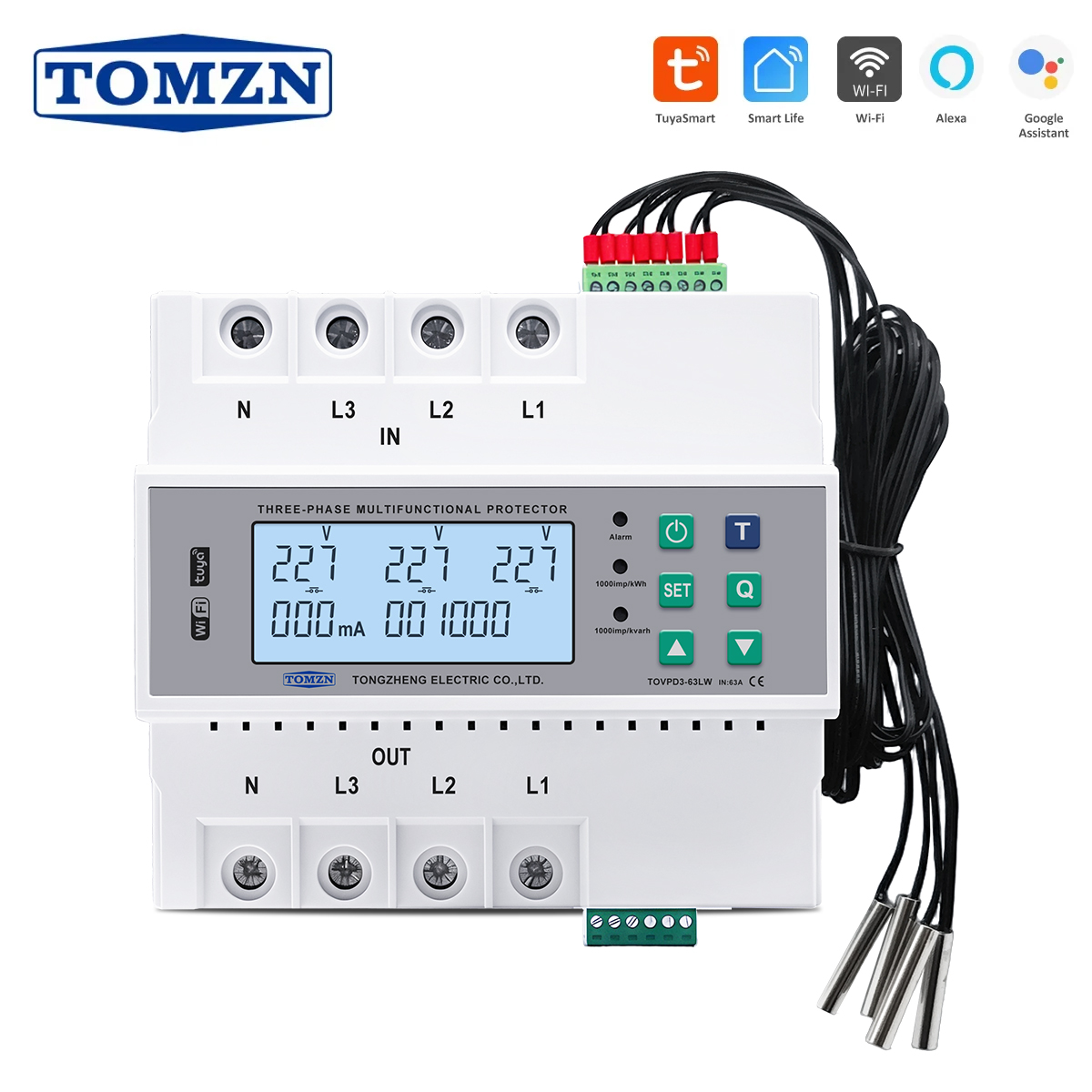

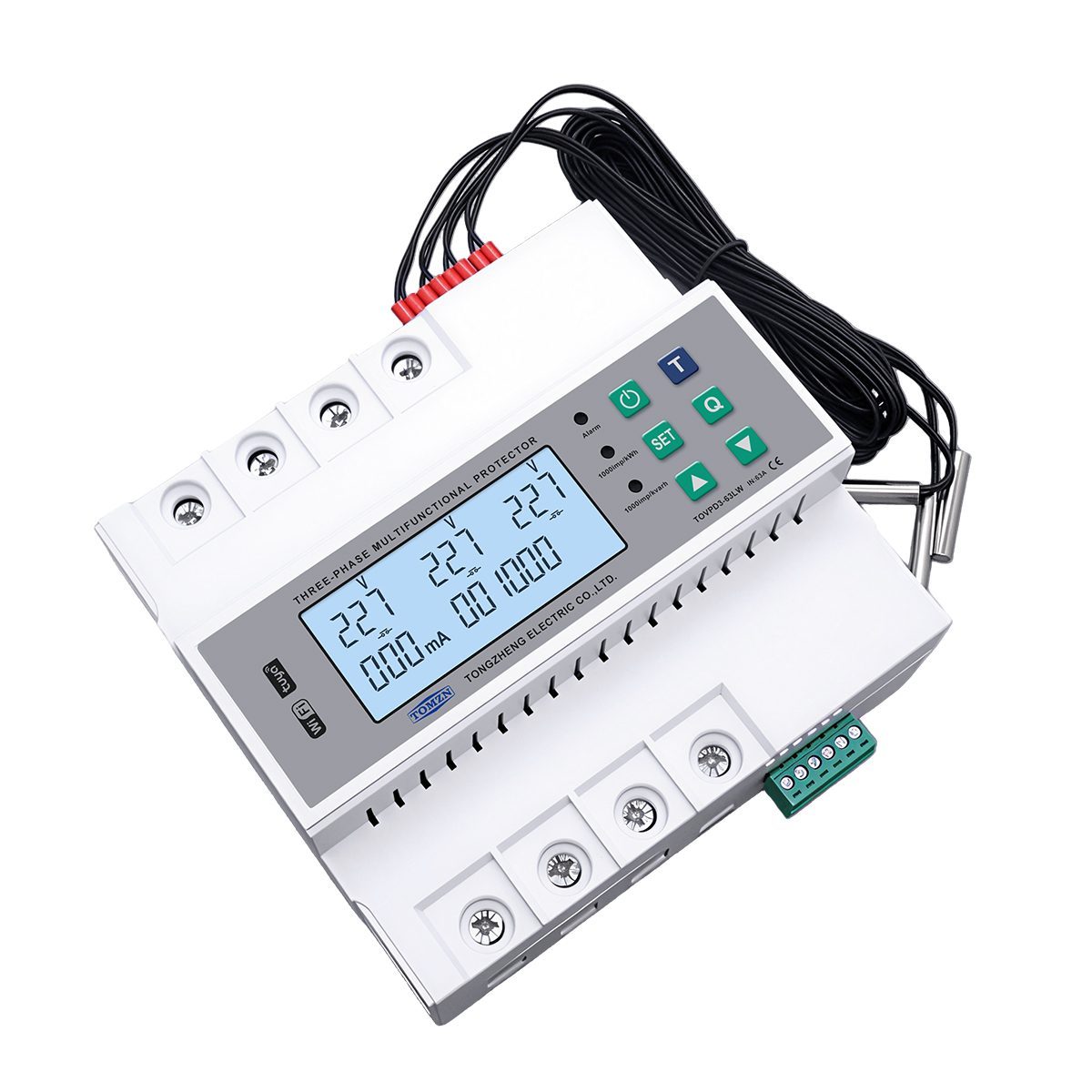

Three Phase WiFi Circuit Breaker - Smart Protector with Voltage Current Power Energy Temperature Measurement (TOMZN TOVPD3-63LW)
Overview
Step into the future of electrical safety and management with the TOMZN TOVPD3-63LW Three Phase WiFi Smart Circuit Breaker, a revolutionary device designed to provide unparalleled protection and control for your electrical systems. Engineered for modern homes, commercial establishments, and light industrial applications across Bangladesh, this intelligent protector goes far beyond traditional circuit breakers. It integrates real-time voltage, current, active power, energy (kWh), and even temperature monitoring with advanced over-voltage, under-voltage, over-current, and over-temperature protection capabilities. With seamless WiFi connectivity, you can monitor and control your electrical circuits from anywhere in the world using the intuitive Tuya Smart or Smart Life app on your smartphone.
The TOMZN TOVPD3-63LW is an essential upgrade for anyone seeking enhanced safety, energy efficiency, and remote management of their three-phase electrical loads. Its robust design, precise measurement, and customizable protection parameters make it a smart investment for safeguarding valuable appliances and ensuring uninterrupted power supply in Bangladesh's dynamic electrical landscape. Discover the peace of mind that comes with intelligent electrical protection, readily available at the best price in Bangladesh.
Key Features
- Three Phase Protection: Specifically designed for 3-phase 4-wire (3P+N) electrical systems, offering comprehensive protection across all phases.
- WiFi Connectivity & Remote Control: Connects to your 2.4GHz WiFi network, allowing full remote monitoring and control via the Tuya Smart or Smart Life app from anywhere. Turn circuits on/off, view data, and adjust settings remotely.

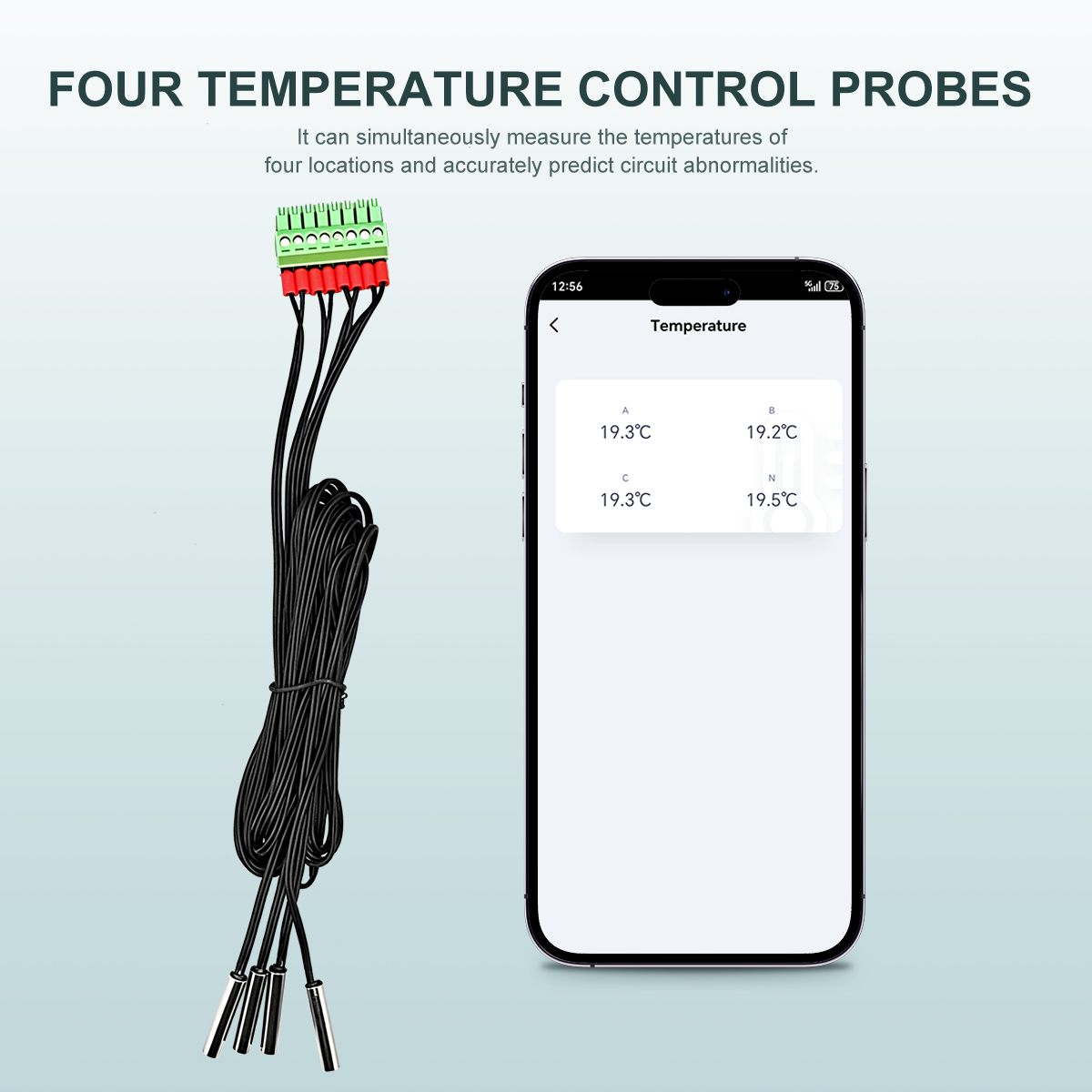

- Real-time Data Monitoring: Instantly view live readings of voltage (V), current (A), active power (kW), total energy consumption (kWh), and device internal temperature directly on the integrated LCD display or through the mobile app.
- Comprehensive Protection Functions:
- Over-voltage Protection: Automatically cuts off power if voltage exceeds a safe threshold (adjustable).
- Under-voltage Protection: Disconnects power if voltage drops below a critical level (adjustable).
- Over-current Protection: Trips the circuit if current draw exceeds the set limit, preventing overload (adjustable).
- Over-temperature Protection: Shuts down the device if its internal temperature becomes excessively high, preventing damage.
- Auto Reconnection: Configurable automatic re-closing after a fault clears and conditions return to normal, minimizing downtime.
- Adjustable Protection Parameters: Customize over/under voltage, over-current, over-temperature thresholds, and recovery/reconnection delays directly on the device or via the app to suit your specific needs.
- Energy Metering: Accurately tracks total energy consumption (kWh), helping you manage and optimize energy usage and identify potential savings.
- LCD Display: Clear, backlit LCD provides instant visibility of all monitored parameters and protection status.
- DIN Rail Mounting: Standard 35mm DIN rail installation for easy integration into existing distribution boxes and electrical panels.
- High Breaking Capacity: Ensures reliable protection against short circuits with a breaking capacity of 6kA.
- Schedule & Timer Functions: Set schedules to automatically turn circuits on/off, enhancing energy efficiency and convenience.
- History Data Logging: Access historical data for voltage, current, power, and energy consumption through the app, enabling trend analysis.
Why Choose the TOMZN TOVPD3-63LW?
In the bustling electrical environment of Bangladesh, ensuring the safety and efficiency of your power supply is paramount. The TOMZN TOVPD3-63LW stands out as a superior choice for several reasons:
- Unmatched Safety: Protects your valuable electrical equipment and appliances from common power fluctuations like surges, sags, and overloads, which are frequent concerns in many areas of Bangladesh.
- Energy Management: Gain precise insights into your energy consumption. By monitoring kWh usage, you can identify energy-hungry devices and make informed decisions to reduce your electricity bills.
- Remote Convenience: Manage your electrical circuits from your office, while traveling, or even from another room. Forgot to turn off a heavy appliance? No problem, just use your smartphone.
- Preventative Maintenance: Real-time monitoring helps you detect anomalies before they cause significant damage, allowing for proactive maintenance and preventing costly breakdowns.
- Reliability & Durability: Constructed with flame-retardant PC material and designed for a long electrical life, this device offers reliable long-term performance.
- Smart Home Integration: Compatible with popular smart home platforms via Tuya/Smart Life, allowing integration with other smart devices and voice assistants for a truly automated environment.
Real-Time Monitoring & Protection Parameters
The TOMZN TOVPD3-63LW offers highly customizable settings to ensure optimal protection for your specific electrical setup:
- Over-voltage Protection Value Range: AC 250V-300V (Adjustable, Default: 270V per phase)
- Under-voltage Protection Value Range: AC 150V-190V (Adjustable, Default: 170V per phase)
- Over-current Protection Value Range: 1A-63A (Adjustable, Default: 40A)
- Over-temperature Protection Value Range: 40℃-100℃ (Adjustable, Default: 70℃)
- Power Display Range: 0-45kW (Total for three phases)
- Energy Display Range: 0-99999.9 kWh
- Recovery Delay Time: 1s-300s (Default: 30s)
- Power-on Delay Time: 1s-300s (Default: 5s)
- Over-current Delay Time: 0.1s-30s (Default: 1s)
- Over-temperature Delay Time: 1s-30s (Default: 5s)
Technical Specifications
| Feature |
Specification |
| Model |
TOMZN TOVPD3-63LW |
| Rated Voltage |
3P+N, AC 230V/400V 50/60Hz |
| Rated Current |
63A (Max) |
| Over-voltage Protection Range |
AC 250V-300V (Adjustable) |
| Under-voltage Protection Range |
AC 150V-190V (Adjustable) |
| Over-current Protection Range |
1A-63A (Adjustable) |
| Over-temperature Protection Range |
40℃-100℃ (Adjustable) |
| Power Measurement Range |
0-45kW |
| Energy Measurement Range |
0-99999.9 kWh |
| WiFi Standard |
2.4GHz IEEE 802.11 b/g/n |
| Control Application |
Tuya Smart / Smart Life App |
| Display |
LCD with Backlight |
| Installation |
35mm DIN Rail |
| Breaking Capacity |
6kA |
| Electrical Life |
≥100,000 operations |
| Operating Temperature |
-25℃ to +70℃ |
| Operating Humidity |
≤95% RH (non-condensing) |
| Dimensions (L x W x H) |
90mm x 72mm x 66mm (4 DIN modules) |
| Weight |
Approximately 450g |
| Housing Material |
Flame Retardant PC |
Installation & Usage Instructions
- Professional Installation: It is highly recommended that the TOMZN TOVPD3-63LW be installed by a qualified electrician to ensure safety and compliance with local electrical codes in Bangladesh.

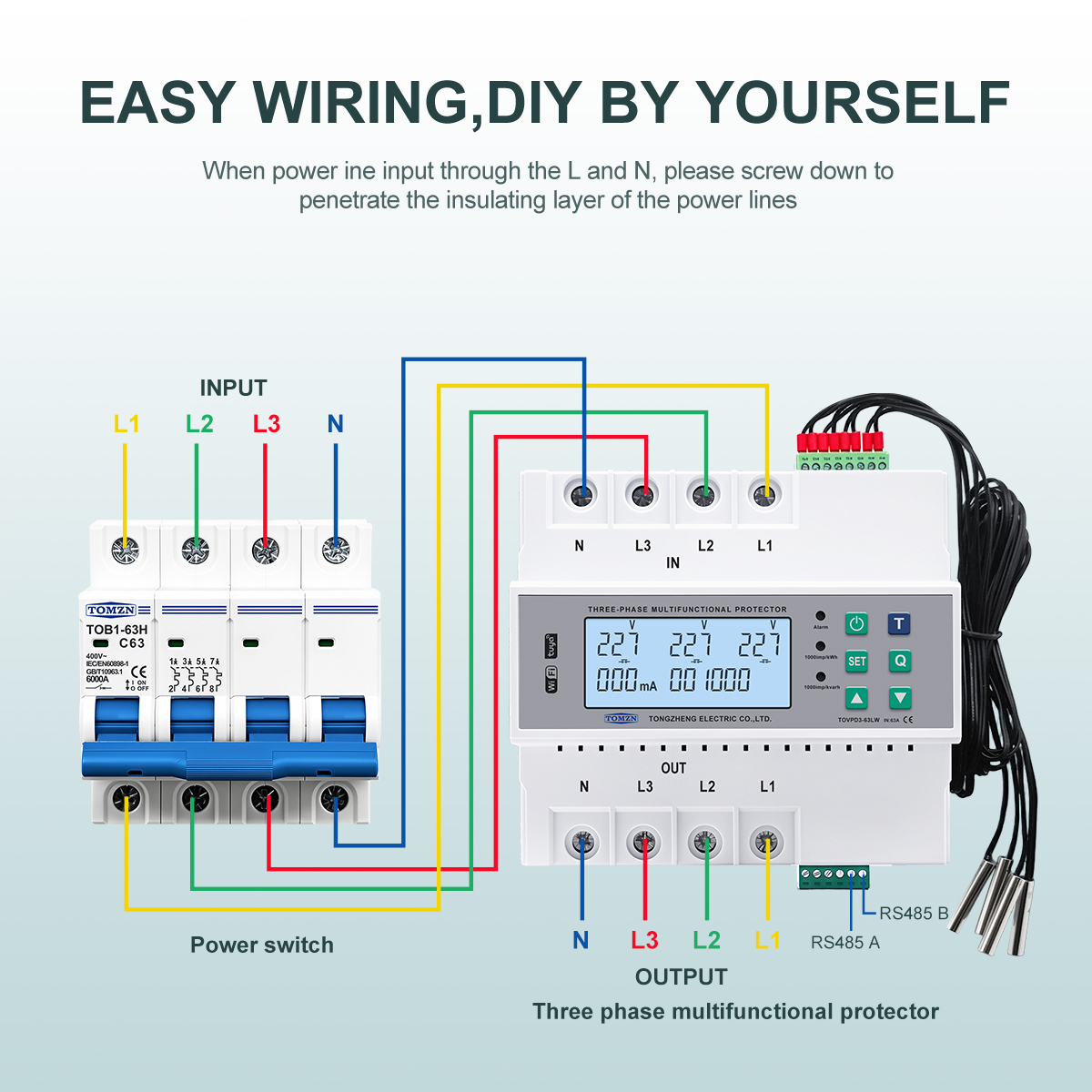

- Mounting: Mount the device on a standard 35mm DIN rail within your electrical distribution box. Ensure proper wiring for 3-phase 4-wire (3P+N) connections.
- Power On: Once wired correctly, power on the circuit. The LCD display will illuminate, showing real-time parameters.
- App Connection: Download the "Tuya Smart" or "Smart Life" app from your smartphone's app store. Register an account.
- Pairing: Follow the in-app instructions to add a new device. The device typically enters pairing mode when first powered on or by long-pressing a button on the unit. Ensure your phone is connected to a 2.4GHz WiFi network.
- Configuration: Once paired, you can view real-time data, adjust protection thresholds, set schedules, and control the circuit breaker remotely via the app.
- Parameter Adjustment: Use the buttons on the device or the mobile app to set your desired over-voltage, under-voltage, over-current, and over-temperature protection values, as well as various delay times.
Applications
The versatility of the TOMZN TOVPD3-63LW makes it ideal for a wide range of applications:
- Residential Buildings: Protects entire homes or specific heavy-load circuits (e.g., central AC units, water heaters, motor loads) from power irregularities.
- Commercial Establishments: Safeguards office equipment, lighting systems, and specialized machinery in shops, restaurants, and small businesses.
- Light Industrial Facilities: Provides robust protection for motors, pumps, HVAC systems, and other three-phase industrial equipment.
- Data Centers & Server Rooms: Ensures stable power supply and monitors consumption for critical IT infrastructure.
- Solar Power Systems: Can be used to protect the AC output side of three-phase inverters, monitoring grid stability and ensuring system safety.
- Agricultural Setups: Protects irrigation pumps, milling machines, and other farm equipment from voltage fluctuations common in rural areas.
