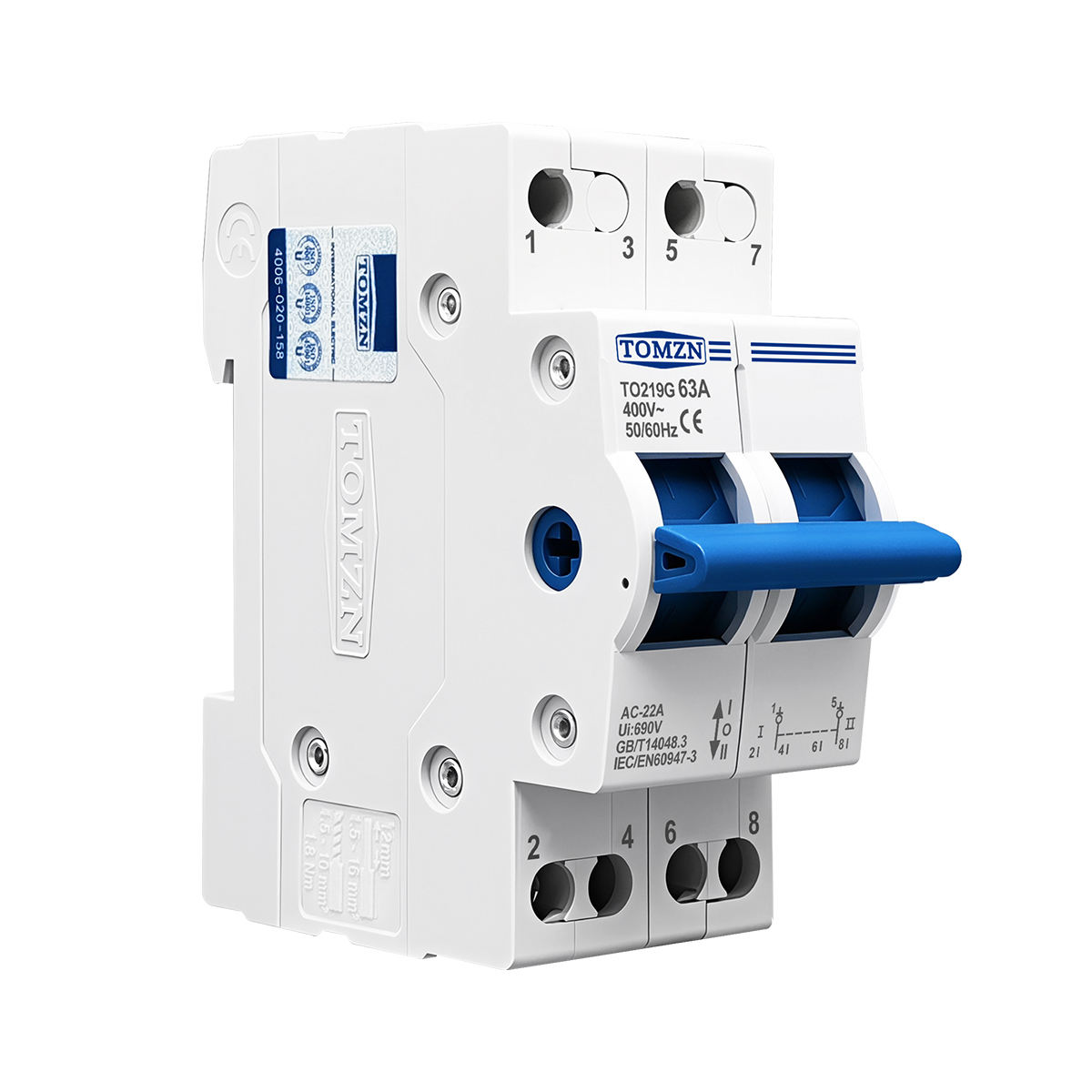

TOMZN TO219G 63A 400V AC Dual Power Manual Transfer Switch Price in Bangladesh
Ensure an uninterrupted power supply for your home or business with the reliable TOMZN TO219G 63A 400V AC Dual Power Manual Transfer Switch (MTS). Designed for robust performance and ease of use, this manual changeover switch is an essential component for seamlessly transitioning between two independent power sources, such as the national grid and a backup generator. Priced competitively at just ৳1200.00 BDT, the TOMZN TO219G offers superior quality and peace of mind, making it the ideal choice for consumers across Bangladesh.
In Bangladesh, where power outages can be frequent, a dependable transfer switch is crucial. The TOMZN TO219G is specifically engineered to meet these demands, providing a safe and efficient way to manage your power sources. Whether you're looking for a 63A changeover switch for your home, office, or small industrial setup, this TOMZN model delivers exceptional value and performance.
Overview
The TOMZN TO219G is a high-quality 4-pole manual transfer switch designed to handle a rated current of 63 Amperes and a rated voltage of 400V AC. It allows users to manually switch their electrical load between two distinct power inputs – typically the primary utility supply and a secondary backup generator. This manual operation ensures complete control over your power source selection, making it a favorite among electricians and homeowners in Bangladesh. Its robust construction, compact design, and adherence to international safety standards make it a reliable solution for power management needs.
Developed by TOMZN, a reputable manufacturer known for its high-quality electrical components, the TO219G model guarantees durability and long-term performance. It’s an indispensable device for maintaining essential services during unexpected power disruptions, offering a practical and cost-effective solution for power continuity in the Bangladesh market.
Key Features of TOMZN TO219G MTS
- High Current Rating: With a 63 Ampere capacity, it can safely manage significant electrical loads, suitable for various residential, commercial, and light industrial applications in Bangladesh.
- 4-Pole Design: Features a 4-pole configuration (3 phase + neutral), making it ideal for 3-phase 400V AC systems common in many Bangladeshi installations, ensuring complete isolation of all lines.
- Dual Power Changeover: Facilitates manual switching between two separate power sources, providing flexibility and control during power transitions.
- Robust Construction: Manufactured with high-quality, flame-retardant PC plastic material, ensuring enhanced safety and durability even in challenging environments.
- Mechanical Interlock: Incorporates a mechanical interlock mechanism to prevent simultaneous connection of both power sources, eliminating the risk of short circuits and ensuring safe operation.
- Visible Contact Status: Clear indication of the switch position (Source 1 or Source 2) allows for easy monitoring and verification of the active power source.
- Easy Installation: Designed for convenient 35mm DIN rail mounting or screw fixing, allowing for flexible installation in most standard distribution boards and enclosures.
- High Breaking Capacity: Engineered to withstand high short-circuit currents, offering superior protection to your electrical system.
- Long Mechanical and Electrical Life: Built for longevity with a mechanical life of 8000 cycles and an electrical life of 1500 cycles, ensuring reliable performance over many years.
- Compact Design: Space-saving dimensions allow for efficient use of panel space, a crucial advantage in crowded electrical cabinets.
Why Choose the TOMZN TO219G MTS?
Choosing the right transfer switch is vital for the safety and efficiency of your electrical system. The TOMZN TO219G stands out for several reasons:
- Reliability: TOMZN is a trusted brand, and the TO219G is built to international standards (IEC 60947-6-1), ensuring reliable and consistent performance.
- Safety First: The integrated mechanical interlock and robust insulation provide critical safety features, protecting against electrical hazards and equipment damage.
- Cost-Effective Solution: At ৳1200.00 BDT, it offers an economical yet high-quality solution for dual power management, making it accessible for a wide range of users in Bangladesh.
- Ease of Operation: Its manual operation is straightforward, allowing users to switch power sources with a simple, decisive action.
- Durability: Constructed from premium materials, it is designed to withstand the rigors of daily use and varying environmental conditions in Bangladesh.
- Essential for Bangladesh: Given the common power fluctuations and outages, this MTS is an indispensable device for homes, shops, and small businesses to maintain continuous operation.
Technical Specifications
Here are the detailed specifications for the TOMZN TO219G 63A 400V AC Dual Power Manual Transfer Switch:
| Specification |
Value |
| Brand |
TOMZN |
| Model |
TO219G |
| Product Type |
Manual Transfer Switch (MTS) / Dual Power Changeover Switch |
| Rated Current |
63 A |
| Rated Voltage |
AC 400 V |
| Poles |
2 Pole (Phase + Neutral) |
| Rated Frequency |
50/60 Hz |
| Insulation Voltage (Ui) |
690 V |
| Rated Short-time Withstand Current (Icw) |
10 kA (for 1s) |
| Rated Short-circuit Making Capacity (Icm) |
10 kA |
| Electrical Life |
1500 Cycles |
| Mechanical Life |
8000 Cycles |
| Operating Temperature |
-5°C to +40°C |
| Storage Temperature |
-25°C to +55°C |
| Mounting Type |
35mm DIN Rail or Screw Mounting |
| Protection Degree |
IP20 |
| Standard |
IEC 60947-6-1 |
| Material |
Flame-retardant PC plastic, Copper Contacts |
| Dimensions (L x W x H) |
107 mm x 95 mm x 77 mm (Approximate) |
| Weight |
0.5 kg (500 grams) (Approximate) |
Installation and Usage Guide
Installing the TOMZN TO219G Manual Transfer Switch should always be performed by a qualified and certified electrician to ensure safety and compliance with local electrical codes in Bangladesh. Here’s a general overview:
- Mounting: Securely mount the switch inside a suitable electrical enclosure or distribution board using its 35mm DIN rail clip or screw mounting holes.

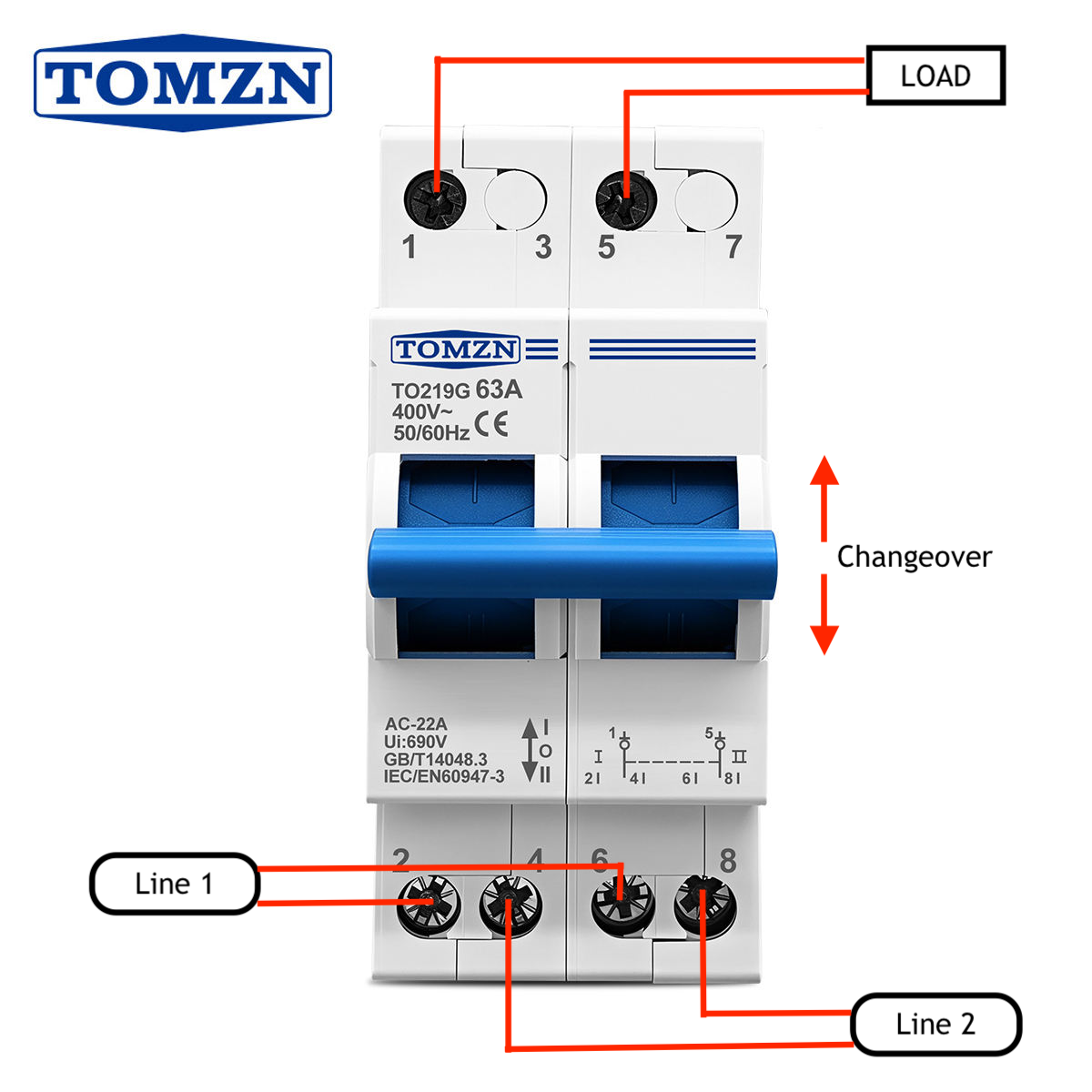

- Wiring: Connect the primary power source (e.g., utility grid) to one input terminal set and the secondary power source (e.g., generator) to the other input terminal set. Ensure the load wires are connected to the output terminals. Always follow the provided wiring diagram carefully.
- Grounding: Ensure proper grounding for both the switch and the entire electrical system.
- Testing: Once installed, conduct thorough testing to verify correct operation and safety before putting the system into full service.

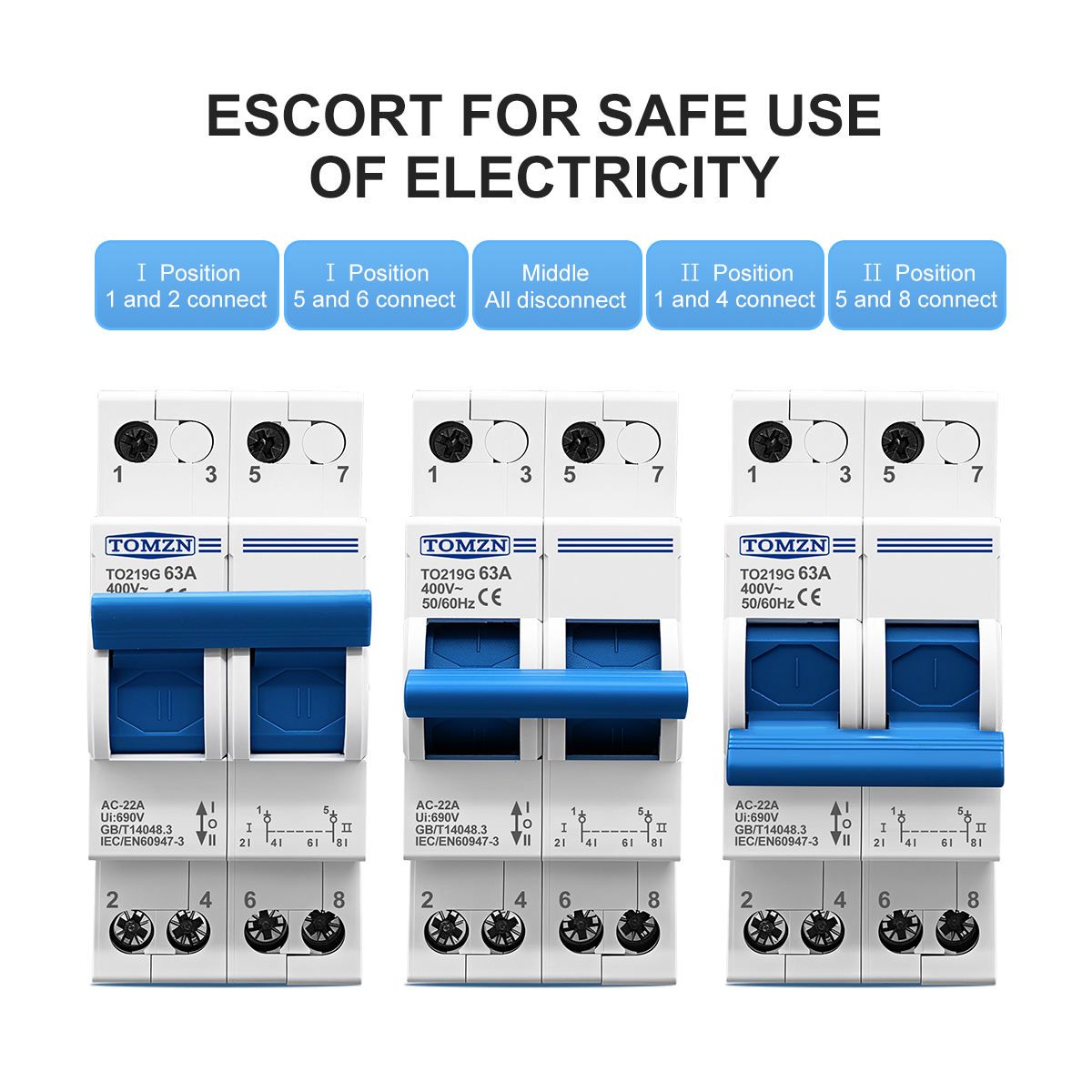

- Operation: To switch power sources, simply toggle the robust handle to the desired position (Source 1 or Source 2). The mechanical interlock prevents both sources from being active simultaneously. Always ensure all critical loads are off before switching to minimize transient spikes.
Safety Precautions
- Always ensure the main power supply is disconnected before attempting any installation or maintenance on the transfer switch.
- Installation must be carried out by a licensed electrician in accordance with national and local electrical codes.
- Do not operate the switch if it appears damaged or faulty.
- Ensure proper ventilation around the switch to prevent overheating.
- Keep out of reach of children and unauthorized personnel.
Availability and Price in Bangladesh
The TOMZN TO219G 63A 400V AC Dual Power Manual Transfer Switch is readily available for purchase across Bangladesh. You can find this essential electrical component at leading electrical stores, hardware shops, and reputable online e-commerce platforms. We are proud to offer the TOMZN TO219G price in Bangladesh at an unbeatable ৳1200.00 BDT.
For those searching for "TOMZN TO219G in Bangladesh" or "manual transfer switch near me," you'll find that many suppliers offer nationwide delivery, ensuring you can get this product no matter where you are in the country. We strive to provide the best price in Bangladesh for this high-quality manual changeover switch, coupled with excellent customer service and prompt delivery in Bangladesh.
Whether you're in Dhaka, Chittagong, Sylhet, Khulna, or any other city, securing a reliable power solution is now easier than ever. Invest in the TOMZN TO219G MTS today for a seamless and secure power transition experience.
Frequently Asked Questions (FAQs)
Q: What is the primary function of a Manual Transfer Switch like the TOMZN TO219G?
A: Its primary function is to safely and manually switch an electrical load between two distinct power sources, typically the main utility grid and a backup generator, ensuring power continuity during outages.
Q: Is the TOMZN TO219G suitable for 3-phase power systems?
A: Yes, with its 4-pole design (3 phase + neutral) and 400V AC rating, it is perfectly suited for 3-phase electrical systems common in many commercial and industrial settings in Bangladesh.
Q: Can I install the TOMZN TO219G myself?
A: No, for safety and compliance with electrical codes, it is highly recommended that a qualified and licensed electrician performs the installation.
Q: What is the advantage of a mechanical interlock?
A: A mechanical interlock physically prevents both power sources from being connected to the load simultaneously, eliminating the risk of dangerous back-feeding or short circuits.
Q: Where can I buy the TOMZN TO219G in Bangladesh?
A: It is available at various electrical equipment suppliers, hardware stores, and online e-commerce platforms across Bangladesh. You can easily find it by searching for "TOMZN TO219G price in Bangladesh" or "manual transfer switch 63A in Bangladesh".
Conclusion
The TOMZN TO219G 63A 400V AC Dual Power Manual Transfer Switch is an indispensable device for anyone seeking a dependable and safe solution for managing dual power sources. Its robust construction, adherence to international standards, and user-friendly manual operation make it an excellent investment for homes, offices, and small businesses throughout Bangladesh. With its competitive price of ৳1200.00 BDT and widespread availability, securing uninterrupted power has never been more accessible. Choose the TOMZN TO219G for reliability, safety, and peace of mind during any power transition.
