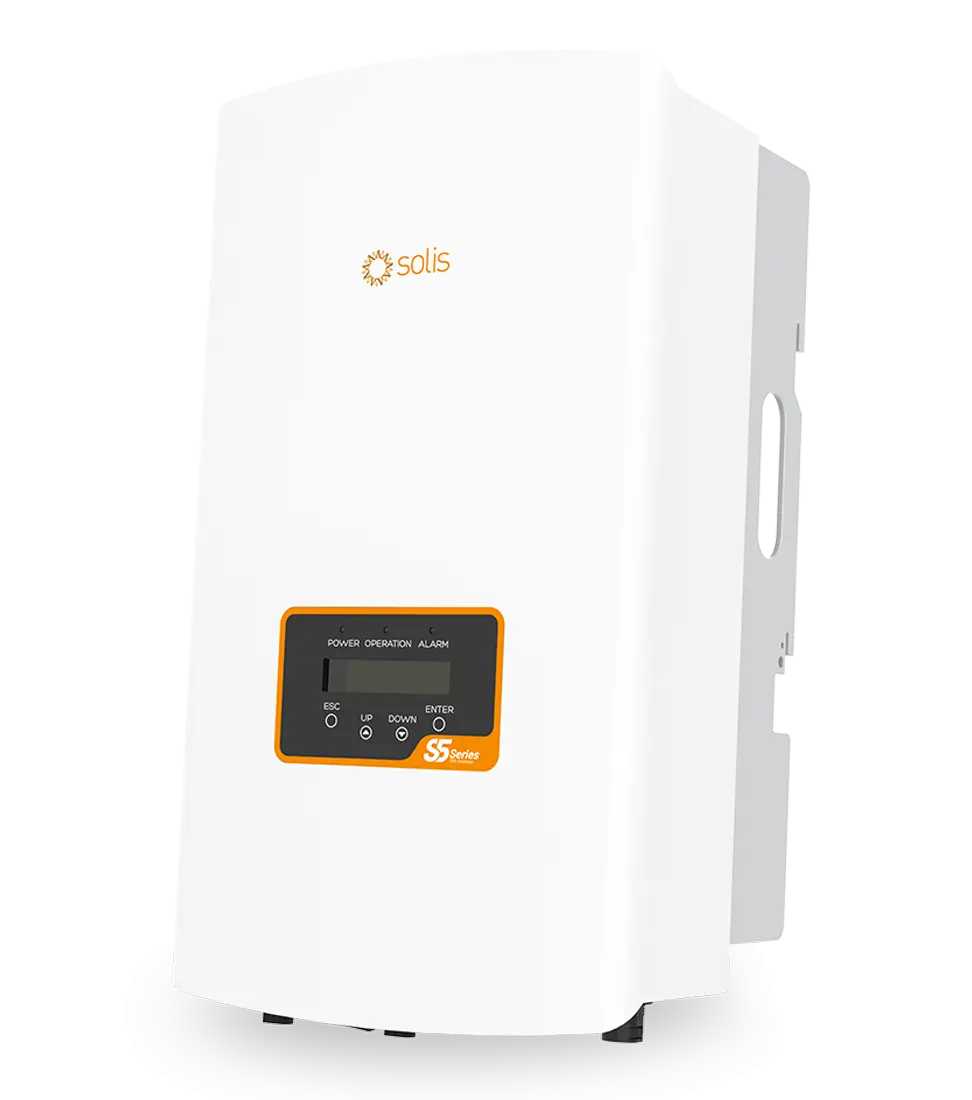

Solis 10KW On Grid Inverter (S5-GR3P10K) - Powering Your Home and Business with Solar in Bangladesh
Embrace a sustainable and cost-effective energy future with the Solis 10KW On Grid Inverter (S5-GR3P10K), now readily available in Bangladesh. Designed for optimal performance, reliability, and efficiency, this advanced three-phase inverter is the perfect solution for medium to large residential solar installations, as well as commercial projects across Bangladesh. With its robust features and intelligent design, the Solis S5-GR3P10K ensures maximum energy harvest from your solar panels, seamlessly integrating into the national grid to reduce your electricity bills and carbon footprint.
As the demand for renewable energy solutions grows in Bangladesh, the Solis 10KW On Grid Inverter stands out as a top choice for those seeking a powerful and dependable solar energy system. It's engineered to deliver consistent, clean power, making it an excellent investment for homeowners and businesses looking for long-term energy independence.
Overview
The Solis S5-GR3P10K is a high-performance, three-phase string inverter from Ginlong Solis, a globally renowned manufacturer of solar inverters. Rated at 10 kilowatts (10KW), this on-grid inverter is specifically designed to convert direct current (DC) electricity generated by your solar panels into alternating current (AC) electricity that can be used by your appliances or fed back into the grid. Its advanced MPPT (Maximum Power Point Tracking) technology ensures that your solar panels operate at their peak efficiency, even under varying weather conditions, which is crucial for maximizing energy yield in Bangladesh's diverse climate.
This model is part of Solis's 5th generation series, known for its enhanced efficiency, compact design, and comprehensive safety features. It represents a significant step forward in solar inverter technology, offering a reliable backbone for any modern solar PV system in the Bangladesh market.
Key Features of Solis S5-GR3P10K
The Solis 10KW On Grid Inverter (S5-GR3P10K) is packed with features designed to maximize your solar investment and provide peace of mind:
- High Efficiency: Boasting a maximum efficiency of 98.6%, this inverter ensures that almost all the energy generated by your solar panels is converted into usable electricity, leading to higher savings on your utility bills in Bangladesh.
- Dual MPPT Design: Equipped with two independent Maximum Power Point Trackers (MPPTs), the S5-GR3P10K allows for flexible system design and optimized energy production, especially in installations with varying panel orientations or shading conditions. Each MPPT can handle up to 2 strings, providing versatility.
- Wide MPPT Voltage Range: With an MPPT voltage range of 180V to 1000V, the inverter can start generating power earlier in the morning and continue later in the evening, extending the daily energy harvest period.
- IP65 Protection: Its robust, dust-tight, and waterproof IP65-rated casing makes it suitable for outdoor installation, capable of withstanding the challenging environmental conditions often experienced in Bangladesh, including heavy monsoon rains and high humidity.
- Compact and Lightweight: Weighing approximately 17.6 kg and with dimensions of 310 x 563 x 219 mm, its sleek and compact design makes installation easier and more flexible, requiring less space.
- Fanless Design for Silent Operation: Utilizing natural convection cooling, the S5-GR3P10K operates silently (noise emission <30 dB), making it ideal for residential areas where noise pollution is a concern.
- Comprehensive Safety Features: Includes integrated DC reverse-polarity protection, AC short-circuit protection, AC overcurrent protection, overvoltage/undervoltage protection, insulation resistance monitoring, and optional AFCI (Arc Fault Circuit Interrupter) to ensure maximum safety for your system and property. It also features DC Type II and AC Type II surge protection devices (SPDs).
- Smart Monitoring: Equipped with RS485 communication as standard, and optional Wi-Fi, GPRS, or LAN modules, you can easily monitor your system's performance in real-time via a mobile app or web portal. This feature is invaluable for tracking energy production and diagnosing any issues, ensuring optimal performance of your solar system in Bangladesh.
- User-Friendly LCD Display: A clear 2x20 character LCD display provides essential operational data at a glance, making local monitoring straightforward.
- High Power Factor: With a power factor greater than 0.99 (adjustable from 0.8 leading to 0.8 lagging), it ensures efficient power delivery and minimizes reactive power losses.
Technical Specifications
Here’s a detailed look at the specifications of the Solis 10KW On Grid Inverter (S5-GR3P10K):
| Category |
Parameter |
Value |
| Input (DC) |
Max. DC Input Power |
15 kW |
| Max. DC Input Voltage |
1100 V |
| MPPT Voltage Range |
180 - 1000 V |
| Rated Input Voltage |
600 V |
| Start-up Voltage |
180 V |
| Max. Input Current per MPPT |
16 A |
| Max. Short Circuit Current per MPPT |
24 A |
| Number of MPPTs / Strings per MPPT |
2 / 2 |
| Output (AC) |
Rated Output Power |
10 kW |
| Max. Output Apparent Power |
11 kVA |
| Max. Output Current |
16.0 A |
| Rated AC Voltage (3-Phase) |
3/N/PE, 220V/380V, 230V/400V |
| AC Voltage Range |
180 - 270V (L-N) / 310 - 470V (L-L) |
| Rated Grid Frequency |
50 Hz / 60 Hz |
| Grid Frequency Range |
45 - 55 Hz / 55 - 65 Hz |
| Power Factor |
>0.99 (adjustable 0.8 leading - 0.8 lagging) |
| THDi |
<2% (at rated power) |
| Efficiency |
Max. Efficiency |
98.6% |
| Euro Efficiency |
98.1% |
| Protection |
DC Reverse-polarity Protection |
Yes |
| AC Short-circuit Protection |
Yes |
| AC Overcurrent Protection |
Yes |
| Overvoltage/Undervoltage Protection |
Yes |
| Insulation Resistance Monitoring |
Yes |
| Residual Current Monitoring Unit |
Yes |
| Surge Protection (DC/AC) |
DC Type II / AC Type II |
| AFCI Protection |
Optional |
| Temperature Protection |
Yes |
| General Data |
Dimensions (W*H*D) |
310 x 563 x 219 mm |
| Weight |
17.6 kg |
| Topology |
Transformerless |
| Self-consumption (Night) |
<1 W |
| Operating Temperature Range |
-25°C to +60°C |
| Ingress Protection |
IP65 |
| Cooling |
Natural Convection (Fanless) |
| Max. Operating Altitude |
4000 m |
| Display |
LCD (2x20 Characters) |
| Communication |
RS485 (Standard), Optional: Wi-Fi/GPRS/LAN |
| Warranty |
Standard Warranty |
5 years (Extendable) |
Benefits of Choosing Solis S5-GR3P10K for Your Solar Project in Bangladesh
Investing in the Solis 10KW On Grid Inverter offers numerous advantages for users in Bangladesh:
- Significant Energy Savings: By efficiently converting solar energy, this inverter helps you drastically reduce your reliance on grid electricity, leading to substantial savings on your monthly utility bills.
- Environmental Impact: Contribute to a greener Bangladesh by reducing your carbon footprint and promoting the use of clean, renewable energy.
- Reliability and Durability: Built with high-quality components and an IP65 rating, the Solis S5-GR3P10K is designed for long-term, reliable operation even in harsh environmental conditions.
- Optimized Performance: Dual MPPTs and a wide operating voltage range ensure maximum energy yield from your solar panels throughout the day and year.
- Smart Monitoring for Peace of Mind: Remote monitoring capabilities allow you to keep an eye on your system's performance from anywhere, ensuring optimal operation and quick identification of any issues.
- Quiet Operation: The fanless design makes it suitable for installation near living or working spaces without causing disturbance.
- Future-Proof Investment: With a standard 5-year warranty (extendable up to 20 years), you can be confident in the longevity and support for your solar investment in Bangladesh.
Ideal Applications
The Solis S5-GR3P10K is an excellent choice for a variety of solar applications in Bangladesh:
- Residential Solar Systems: Perfect for large homes with significant electricity consumption, aiming for energy independence and lower bills.
- Small to Medium Commercial Establishments: Ideal for offices, shops, clinics, and small factories looking to offset their energy costs and demonstrate environmental responsibility.
- Agricultural Farms: Can power irrigation pumps, cold storage units, and other farm equipment, reducing operational expenses.
Installation and Usage Guide (Brief)
Installing the Solis 10KW On Grid Inverter (S5-GR3P10K) requires professional expertise to ensure safety and optimal performance. It should be mounted in a well-ventilated area, preferably out of direct sunlight, though its IP65 rating allows outdoor installation. Connect the DC input from your solar panels to the MPPT inputs and the AC output to your main electrical panel. Ensure proper grounding. Once installed, the inverter will automatically start up when sufficient sunlight is available and synchronize with the grid. Monitoring can be done via the built-in LCD or through the SolisCloud app (with optional communication modules) for real-time data and alerts.
Solis S5-GR3P10K Price in Bangladesh
The Solis 10KW On Grid Inverter (S5-GR3P10K) offers exceptional value for its performance and features. While prices can vary based on the vendor, current market conditions, and included accessories (like Wi-Fi dongles), you can expect the Solis 10KW On Grid Inverter price in Bangladesh to range approximately from ৳125,000 to ৳175,000. This price typically covers the inverter unit itself. Installation costs, solar panels, mounting structures, cabling, and other balance-of-system components will be additional. For the best price in Bangladesh and comprehensive solar solutions, it is advisable to consult with authorized Solis distributors and reputable solar system integrators near you in Bangladesh.
Availability and Warranty in Bangladesh
The Solis 10KW On Grid Inverter (S5-GR3P10K) is widely available through a network of authorized dealers and solar solution providers across Bangladesh. You can find this model in major cities like Dhaka, Chittagong, Sylhet, and Khulna, with many providers offering delivery in Bangladesh to other regions. When purchasing, always ensure you buy from an authorized reseller to avail the official warranty and genuine product. The standard warranty for Solis inverters is 5 years, with options to extend it up to 10, 15, or even 20 years, providing long-term peace of mind for your solar investment in Bangladesh.
Why Choose Solis for Your Solar Needs?
Ginlong Solis is a leading global manufacturer of PV string inverters, renowned for its commitment to innovation, quality, and customer service. With a strong research and development team, Solis consistently delivers cutting-edge inverter technology that meets international standards. Choosing Solis means opting for a brand that is:
- Globally Recognized: A trusted name in the solar industry worldwide.
- Innovative: Constantly developing new technologies for higher efficiency and reliability.
- Reliable: Products built to last with robust quality control.
- Customer-Focused: Excellent technical support and extensive warranty options.
For anyone in Bangladesh looking for a high-quality, efficient, and reliable on-grid solar inverter, the Solis S5-GR3P10K is an outstanding choice that combines performance with value.
Conclusion
The Solis 10KW On Grid Inverter (S5-GR3P10K) is a powerful, efficient, and reliable solution for harnessing solar energy in Bangladesh. Its advanced features, robust build, and intelligent monitoring capabilities make it an ideal choice for residential and commercial applications seeking to maximize their return on investment in solar power. With competitive pricing and strong local availability, getting your hands on this top-tier solar inverter in Bangladesh has never been easier. Take the step towards energy independence and a sustainable future with the Solis S5-GR3P10K.
