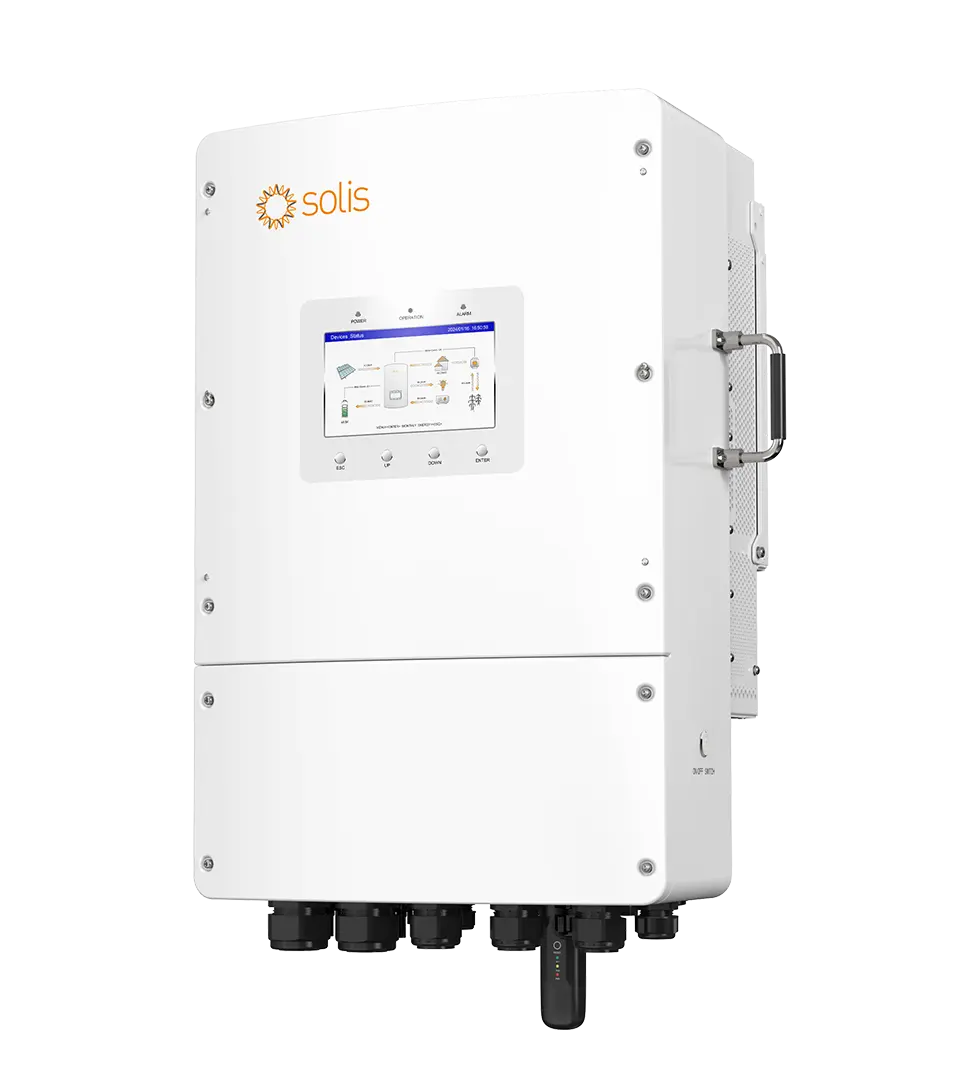

Solis 15KW Three Phase Low Voltage Inverter (S6-EH3P15K02-NV-YD-L) - Advanced Solar Solution in Bangladesh
Empower your business or large residential property with sustainable energy using the state-of-the-art Solis 15KW Three Phase Low Voltage Inverter (S6-EH3P15K02-NV-YD-L). Engineered for superior performance, reliability, and ease of use, this advanced inverter is a perfect choice for solar power systems seeking maximum energy yield and robust operation. As a leading solution in the renewable energy sector, the Solis S6-EH3P15K02-NV-YD-L is rapidly becoming the preferred three-phase inverter in Bangladesh, offering an optimal blend of efficiency and intelligent features.
Designed to convert DC power generated by solar panels into usable AC power for grid injection or consumption, this 15KW inverter is ideal for various applications, from small commercial establishments to large homes and agricultural setups across Bangladesh. Its low voltage design ensures compatibility and safety for a wide range of installations. Discover the best Solis 15KW Three Phase Low Voltage Inverter price in Bangladesh and elevate your energy independence today.
Key Features of Solis S6-EH3P15K02-NV-YD-L
The Solis 15KW Three Phase Low Voltage Inverter is packed with features that set it apart in the competitive Bangladesh market. Each component and function is meticulously designed to deliver unparalleled performance and peace of mind.
- High Efficiency (Max. 98.6%): Achieve maximum energy harvest from your solar panels, leading to significant electricity bill savings and faster ROI. This exceptional efficiency makes it one of the most cost-effective solar inverters available in Bangladesh.
- Dual MPPT Design: Equipped with two Maximum Power Point Trackers (MPPTs), the inverter can handle complex array configurations and varying solar conditions (e.g., partial shading or different panel orientations), ensuring optimal power generation at all times.
- Wide MPPT Voltage Range (180V-1000V): A broad operating voltage range ensures flexibility in system design and maximizes energy capture even during low light conditions or extreme temperatures common in Bangladesh.
- IP65 Protection Rating: Built to withstand harsh environmental conditions, its IP65 rating ensures complete protection against dust ingress and low-pressure water jets, making it suitable for outdoor installation anywhere in Bangladesh.
- Compact and Lightweight Design: Measuring approximately 505 x 415 x 215 mm and weighing around 22 kg, its compact size and lighter weight compared to similar models make installation and handling significantly easier.
- Integrated AFCI (Arc-Fault Circuit Interrupter): Enhances system safety by detecting and mitigating potential arc faults in the DC circuit, reducing fire hazards and ensuring reliable operation. This crucial safety feature is essential for any solar installation in Bangladesh.
- Flexible Communication Options: Supports RS485 as standard, with optional Wi-Fi/GPRS connectivity, allowing for easy remote monitoring and management of your solar system via SolisCloud platform from anywhere.
- Type II SPD on DC & AC Side: Provides robust surge protection against lightning strikes and power surges, safeguarding the inverter and connected equipment from damage.
- Low Startup Voltage: Starts generating power earlier in the morning and continues later in the evening, extending the operational hours and increasing overall daily energy yield.
Why Choose Solis S6-EH3P15K02-NV-YD-L for Your Bangladesh Solar Project?
Investing in a Solis 15KW Three Phase Low Voltage Inverter means choosing a future-proof, reliable, and high-performing solution for your energy needs. Here’s why it stands out:
- Maximized Energy Yield: With industry-leading efficiency and intelligent MPPT technology, this inverter ensures your solar panels produce the maximum possible energy, translating directly into greater savings on your electricity bills in Bangladesh.
- Enhanced Safety and Reliability: Features like AFCI, comprehensive protection mechanisms (over-voltage, over-current, anti-islanding), and robust IP65 enclosure guarantee a safe and long-lasting operation, minimizing maintenance concerns.
- Smart Monitoring and Control: The optional Wi-Fi/GPRS modules enable you to monitor your system’s performance in real-time from your smartphone or computer, providing insights and alerts to ensure optimal operation. This remote capability is a huge advantage for businesses and homeowners in Bangladesh.
- Easy Installation and Maintenance: Its user-friendly design, compact form factor, and clear LCD display simplify both the initial installation process and ongoing maintenance, reducing labor costs and time.
- Built for Bangladesh Conditions: With an operating temperature range of -25°C to +60°C and IP65 rating, the Solis S6-EH3P15K02-NV-YD-L is perfectly suited to handle the diverse climate conditions prevalent across Bangladesh.
- Future-Ready Investment: Solis is a globally recognized brand known for innovation and quality. By choosing Solis, you are investing in a technology that is at the forefront of solar energy solutions.
Technical Specifications: Solis S6-EH3P15K02-NV-YD-L
Detailed technical specifications for the Solis 15KW Three Phase Low Voltage Inverter are crucial for system designers and installers in Bangladesh to ensure compatibility and optimal performance.
| Parameter |
Value |
| Input Parameters (DC) |
Max. DC Input Power |
22.5 kW |
| Max. DC Input Voltage |
1100 V |
| Rated Input Voltage |
600 V |
| MPPT Voltage Range |
180 V - 1000 V |
| Start-up Voltage |
180 V |
| Max. Input Current per MPPT |
26 A (13A per string) |
| Number of MPPTs / Strings per MPPT |
2 / 2 |
| Output Parameters (AC) |
Rated AC Output Power |
15 kW |
| Max. AC Output Power |
16.5 kVA |
| Rated AC Output Current |
21.7 A |
| Max. AC Output Current |
23.9 A |
| Nominal AC Voltage (Phase/Line) |
3/N/PE, 230V/400V |
| AC Grid Frequency |
50 Hz / 60 Hz |
| Power Factor |
>0.99 (Adjustable from 0.8 leading to 0.8 lagging) |
| THDi |
<2% |
| Efficiency |
Max. Efficiency |
98.6% |
| European Efficiency |
98.1% |
| Protection |
DC Reverse Polarity Protection |
Yes |
| AC Short Circuit Protection |
Yes |
| Output Over Current Protection |
Yes |
| Output Over Voltage Protection |
Yes |
| Insulation Resistance Monitoring |
Yes |
| Residual Current Monitoring Unit |
Yes |
| Surge Protection (DC/AC) |
Type II / Type II |
| Anti-islanding Protection |
Yes |
| AFCI Protection |
Yes (Optional, but usually included) |
| General Data |
Operating Temperature Range |
-25°C to +60°C |
| Humidity |
0-100% (non-condensing) |
| Ingress Protection |
IP65 |
| Cooling |
Smart Forced Air Cooling |
| Display |
LCD & LED indicators |
| Communication |
RS485 (Standard), Optional: WiFi/GPRS/LAN |
| Dimensions (W x H x D) |
505 x 415 x 215 mm |
| Weight |
22 kg |
Installation and Usage Instructions
Installing the Solis 15KW Three Phase Low Voltage Inverter (S6-EH3P15K02-NV-YD-L) should be carried out by certified professionals to ensure safety and compliance with local electrical codes in Bangladesh. The inverter can be wall-mounted in a well-ventilated area, preferably out of direct sunlight, though its IP65 rating allows for outdoor placement.
Key Steps:
- Site Selection: Choose a location with adequate airflow, away from flammable materials, and accessible for maintenance.
- Mounting: Securely mount the inverter to a sturdy wall using the provided bracket and hardware.
- DC Wiring: Connect the DC input from your solar panels to the designated MPPT inputs, ensuring correct polarity.
- AC Wiring: Connect the AC output to your three-phase electrical panel/grid connection point.
- Grounding: Ensure proper grounding of the inverter for safety.
- Communication Setup: Install optional Wi-Fi/GPRS modules and configure them for remote monitoring via the SolisCloud platform.
- Commissioning: Follow the inverter's display prompts or user manual for initial setup and grid synchronization.
Once installed, the inverter operates automatically. You can monitor its performance, energy generation, and status through the integrated LCD display or remotely via the SolisCloud app/web portal. Regular cleaning of the cooling fins and periodic system checks by a qualified technician will ensure long-term optimal performance.
Solis S6-EH3P15K02-NV-YD-L Price in Bangladesh and Availability
The Solis 15KW Three Phase Low Voltage Inverter (S6-EH3P15K02-NV-YD-L) is widely available through authorized distributors and solar solution providers across Bangladesh. You can find this high-performance inverter in major cities like Dhaka, Chittagong, Sylhet, Khulna, and other regions where solar energy adoption is growing rapidly.
When searching for "Solis 15KW Three Phase Low Voltage Inverter price in Bangladesh," expect to find competitive pricing that reflects its advanced features and reliability. While prices can vary based on supplier, warranty packages, and current market conditions, a typical price range for the Solis S6-EH3P15K02-NV-YD-L in Bangladesh might be between ৳130,000 to ৳150,000. We always recommend contacting multiple authorized dealers to get the best price in Bangladesh and inquire about installation services and bundled offers.
For those looking for "Solis 15KW Inverter near me," our extensive network of partners ensures that you can easily access this product and receive prompt delivery in Bangladesh. Many suppliers offer nationwide delivery services, making it convenient to procure this essential component for your solar project, no matter your location.
Customer Support and Warranty
Solis is renowned globally for its commitment to quality and customer satisfaction. The Solis 15KW Three Phase Low Voltage Inverter (S6-EH3P15K02-NV-YD-L) typically comes with a standard 5-year warranty in Bangladesh, which can often be extended up to 10 or even 20 years through authorized programs. This extensive warranty provides significant peace of mind, knowing your investment is protected.
Authorized service centers and technical support teams are available in Bangladesh to assist with installation queries, troubleshooting, and any warranty-related concerns. Choosing an authorized dealer ensures you receive genuine products and reliable after-sales support, which is paramount for a long-term investment like a solar power system.
Conclusion
The Solis 15KW Three Phase Low Voltage Inverter (S6-EH3P15K02-NV-YD-L) stands as a testament to advanced engineering and a commitment to sustainable energy. Its high efficiency, robust protection features, intelligent monitoring capabilities, and adaptability to various environmental conditions make it an outstanding choice for commercial and large residential solar projects in Bangladesh. By selecting this Solis inverter, you are not just buying a product; you are investing in a reliable, efficient, and future-ready solar energy solution that will deliver exceptional performance and significant returns for years to come. Explore the best Solis 15KW Three Phase Low Voltage Inverter price in Bangladesh today and take a significant step towards energy independence.
